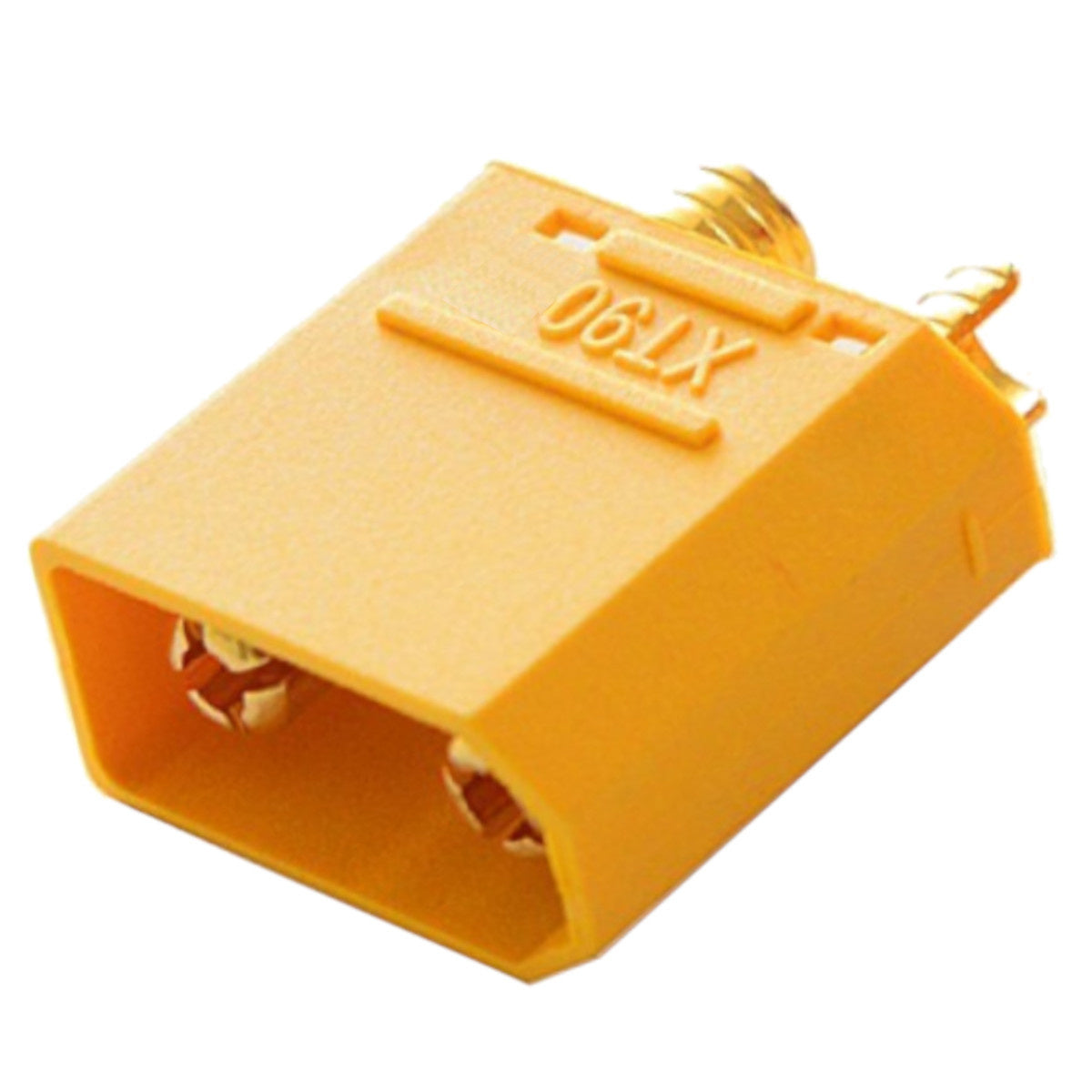

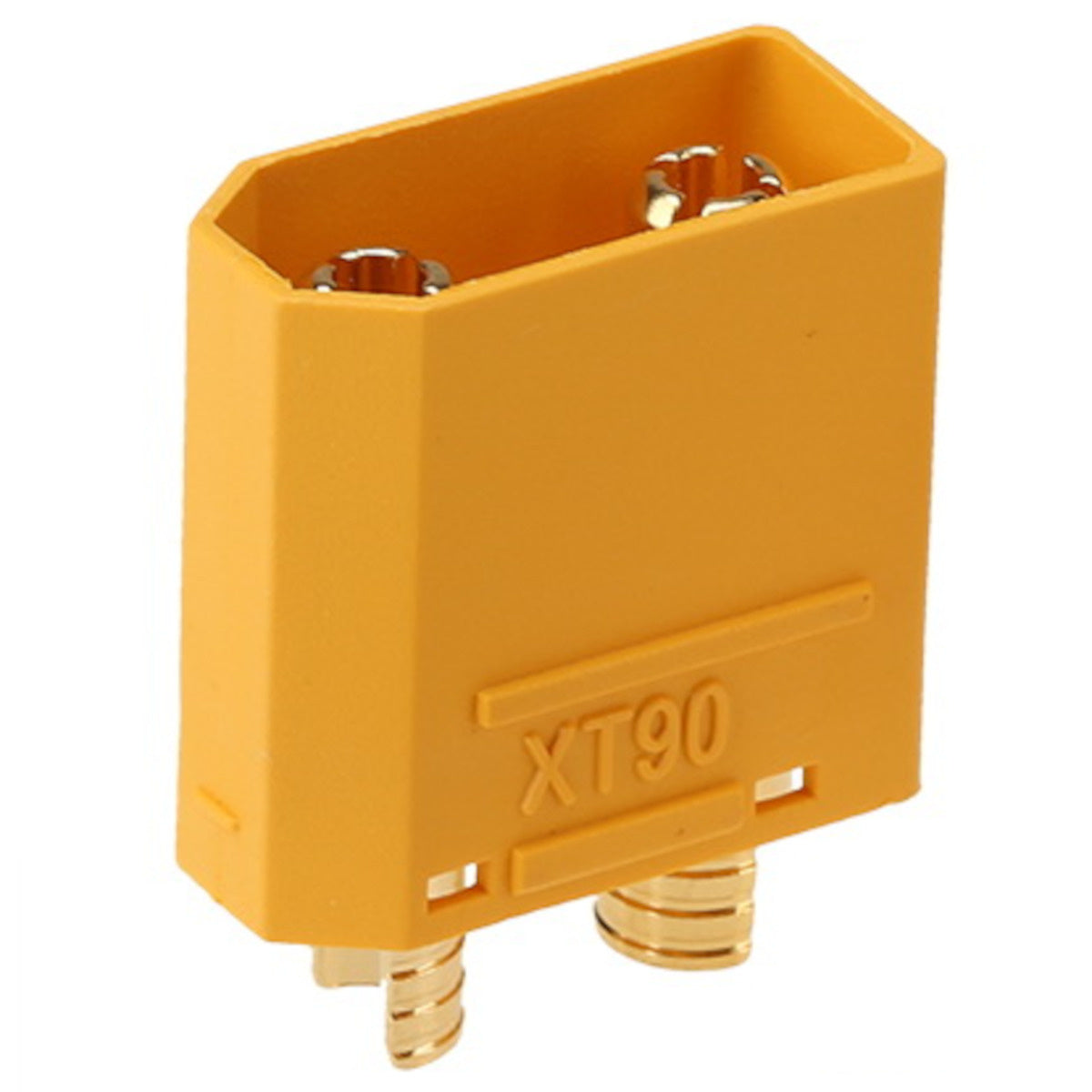

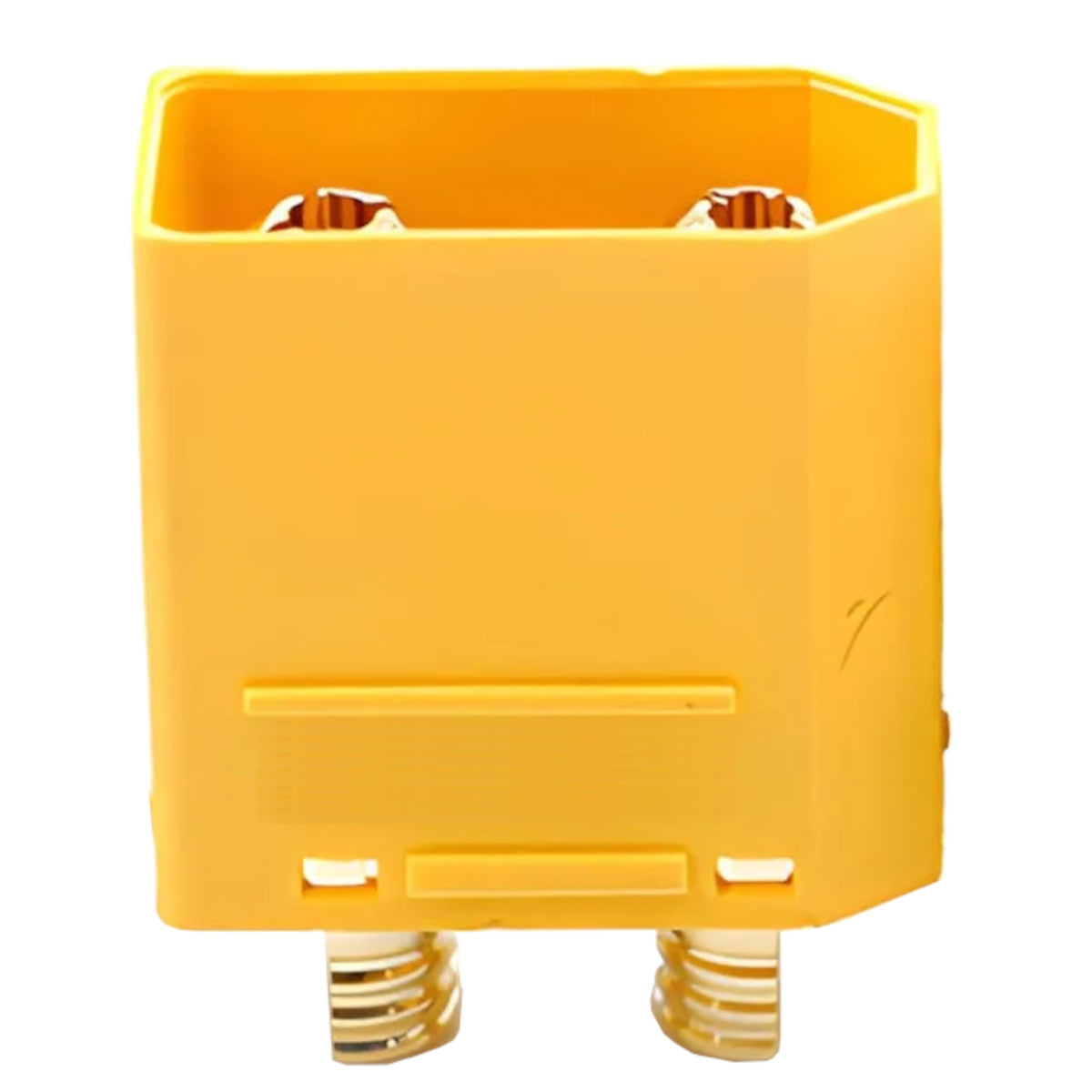

XT90-M Male Connector

XT90-M Male Connector

The XT90-M Male Connector is a high-current power connector designed for large RC aircraft, large electric RC cars, and high-power battery systems requiring robust, reliable power connections beyond the capacity of XT60 connectors. With a 90A continuous current rating, the XT90 male is the ESC/device-side connector in high-power RC systems, delivering a secure, low-resistance connection for the most demanding builds.

• Connector Type: XT90-M (Male)
• Current Rating: 90A continuous
• Gender: Male (ESC / device side)
• Material: High-temperature nylon housing with gold-plated bullet contacts
• Wire Gauge Compatibility: Suitable for 10AWG–12AWG wire
• Application: ESC power input leads, charger output leads, high-power distribution wiring, large electric RC aircraft, large RC cars and trucks, and high-current power systems
• Compatibility: Mates with XT90 female connector
• Advantages:

• 90A continuous current rating – handles the highest current demands of large RC power systems
• Gold-plated contacts for low resistance and long-lasting corrosion-free connection
• Large, robust housing – easy to connect and disconnect even with gloves
• High-temperature nylon withstands soldering heat and operational temperatures
• Positive-locking fit prevents accidental disconnection under high-current load

The high-current standard for large RC builds — the XT90-M male connector is the trusted choice for high-power ESC connections, charger leads, and power distribution in large RC systems where 60A connectors fall short, delivering a secure, low-resistance 90A connection built to handle the most demanding RC power applications.
