XT90-F Female Connector

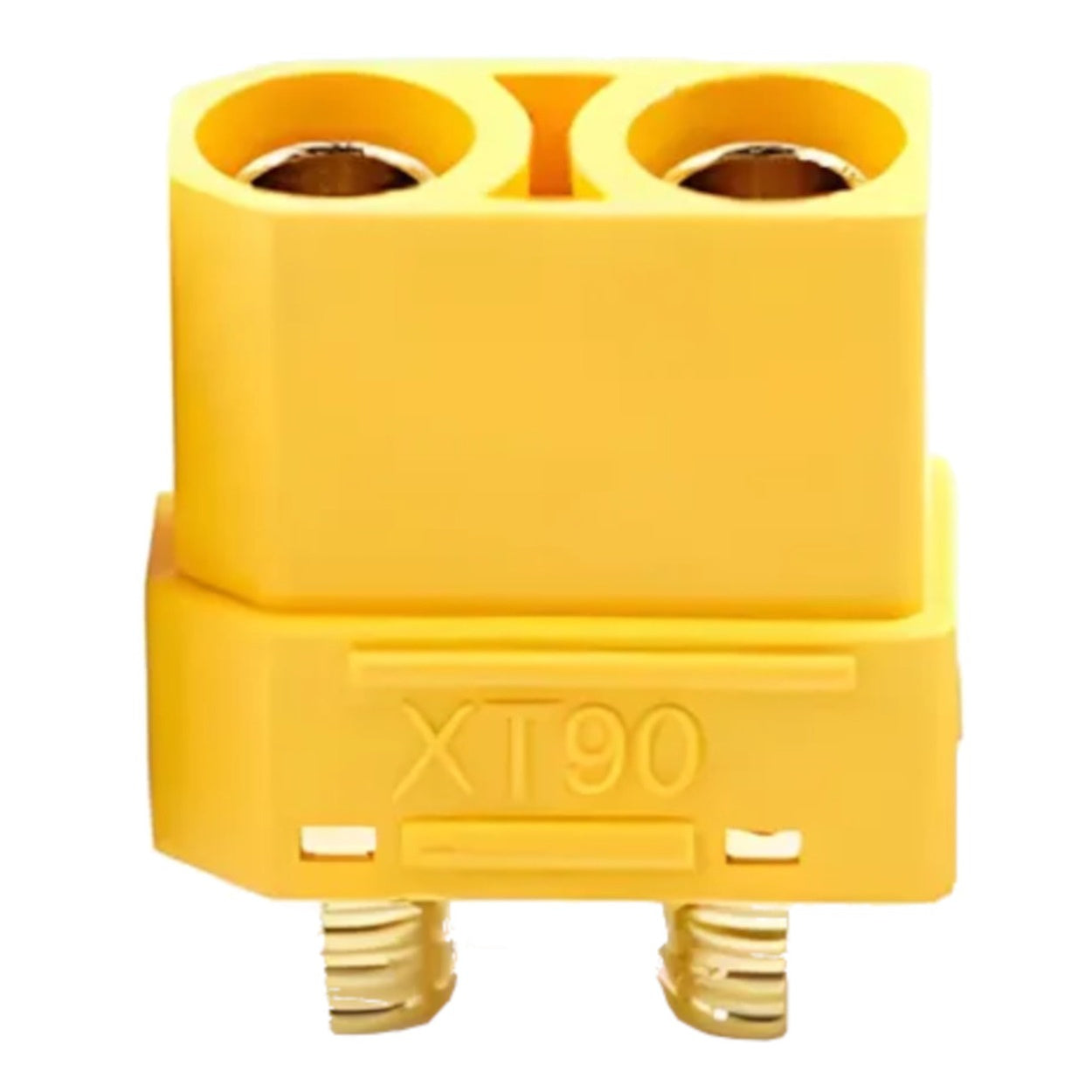

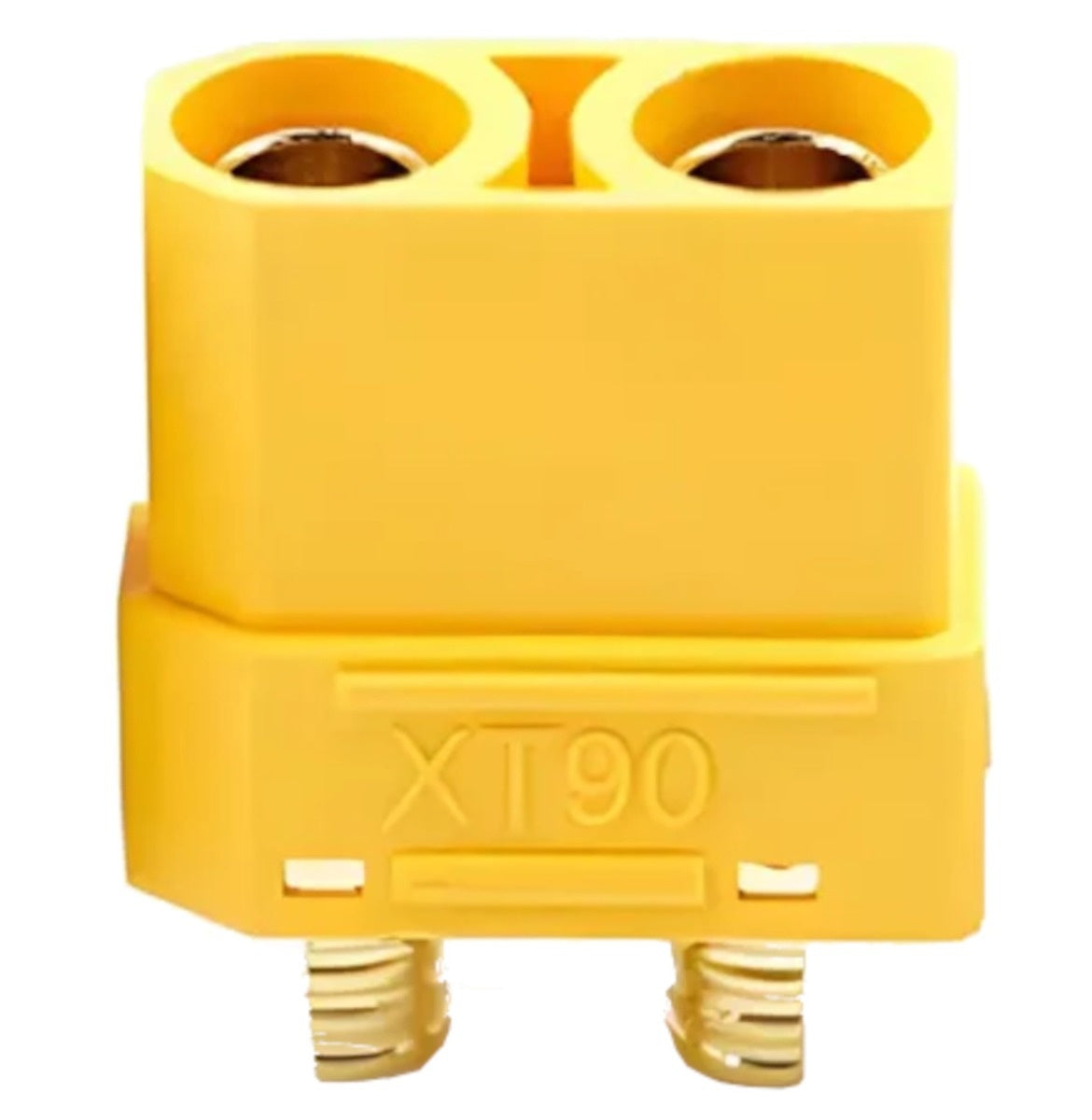

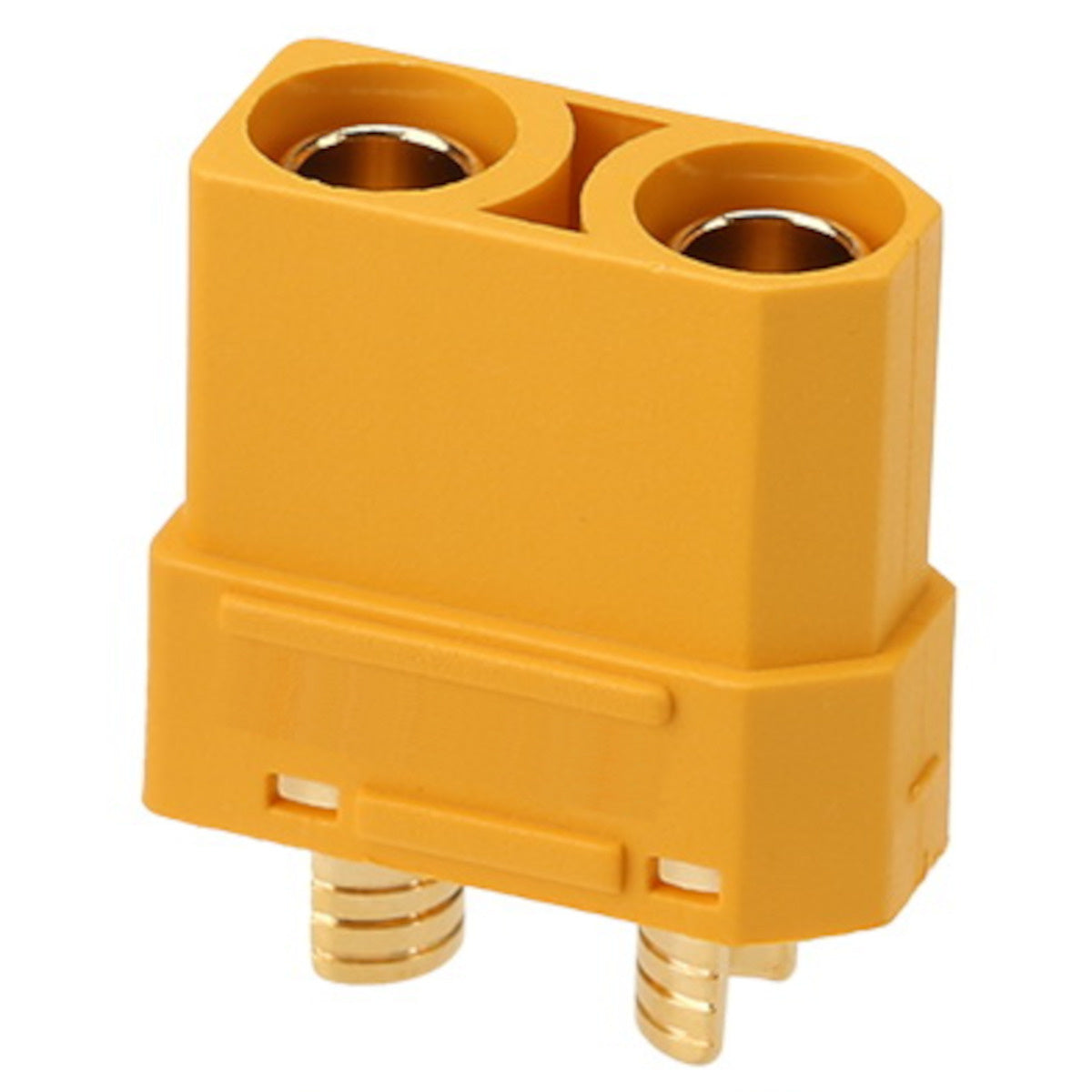

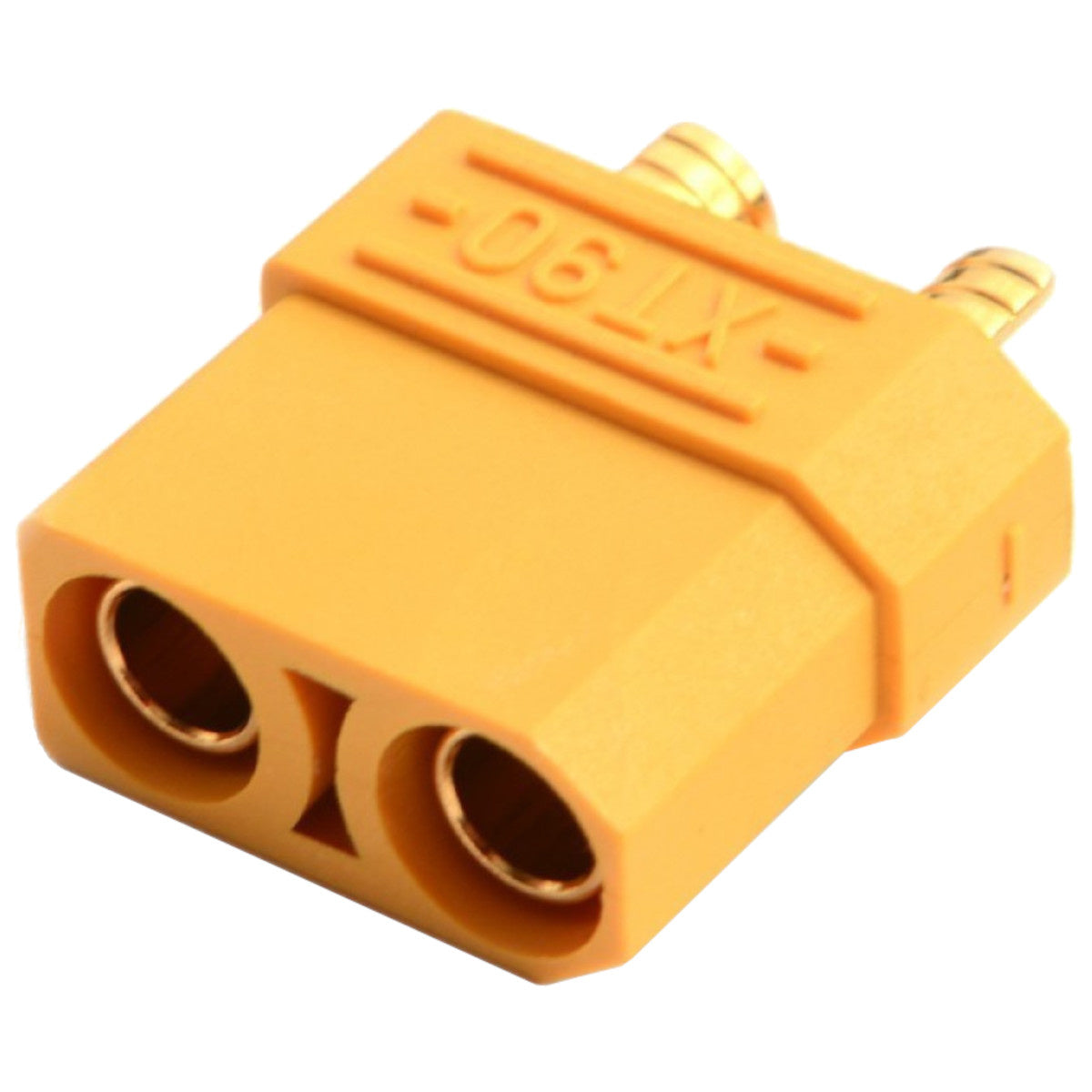

The XT90-F Female Connector is a high-current power connector designed for large RC aircraft, large electric RC cars, and high-power battery systems where the XT60 is insufficient. With a 90A continuous current rating, the XT90 is the go-to connector for large LiPo battery packs, high-power ESCs, and demanding RC power systems that push beyond the limits of smaller connectors.

• Connector Type: XT90-F (Female)
• Current Rating: 90A continuous
• Gender: Female (battery side)
• Material: High-temperature nylon housing with gold-plated bullet contacts
• Wire Gauge Compatibility: Suitable for 10AWG–12AWG wire
• Application: Large LiPo battery connectors, high-power ESC leads, large electric RC aircraft, large RC cars and trucks, high-current power distribution systems
• Compatibility: Mates with XT90 male connector
• Advantages:

• 90A continuous current rating – handles the highest current demands of large RC power systems
• Gold-plated contacts for low resistance and long-lasting corrosion-free connection
• Large, robust housing – easy to connect and disconnect even with gloves
• High-temperature nylon withstands soldering heat and operational temperatures
• Positive-locking fit prevents accidental disconnection under high-current load

The high-current standard for large RC builds — the XT90-F female connector is the trusted choice for large LiPo battery systems and high-power ESC connections where 60A connectors are not enough, delivering a secure, low-resistance 90A connection that handles the most demanding RC power systems with confidence.
