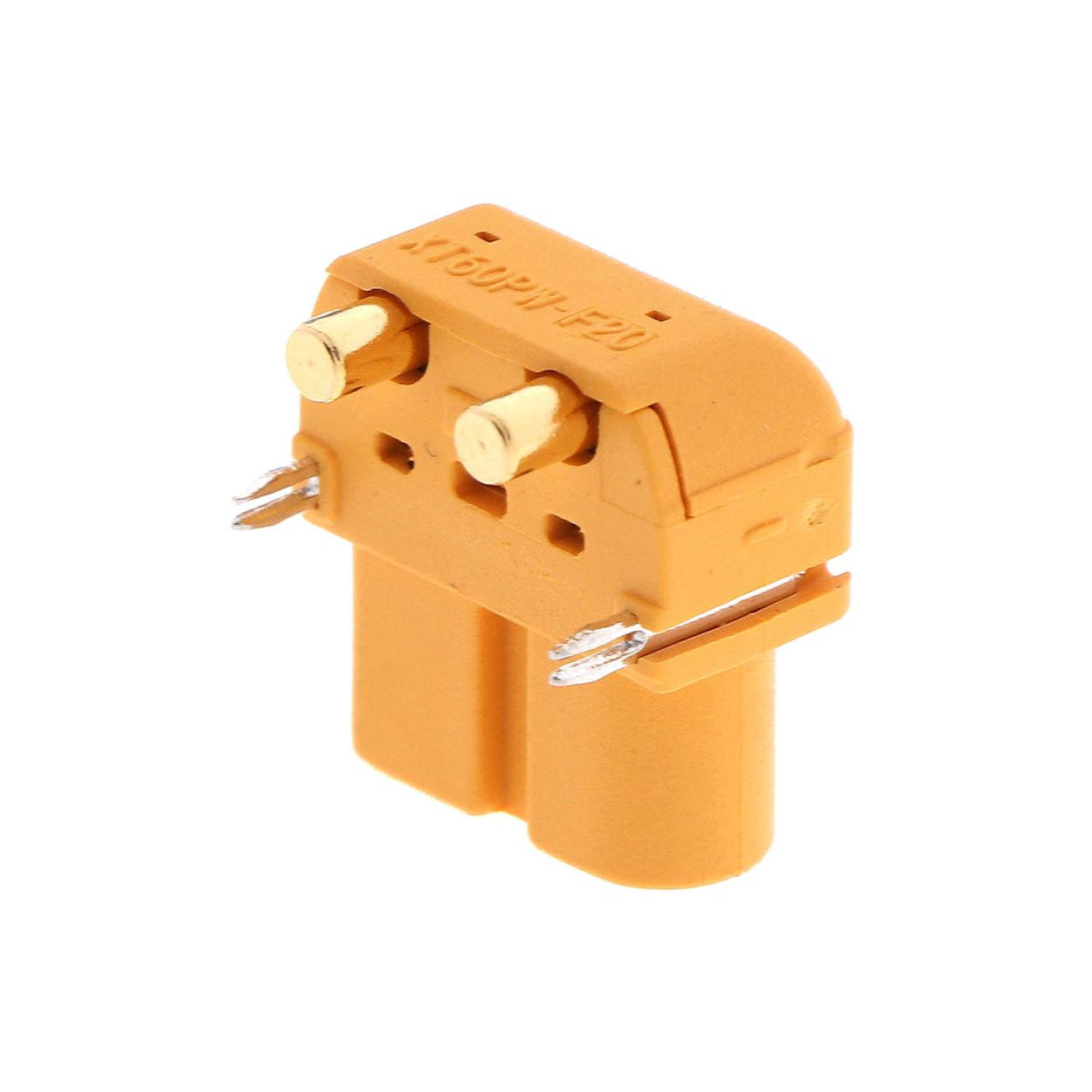

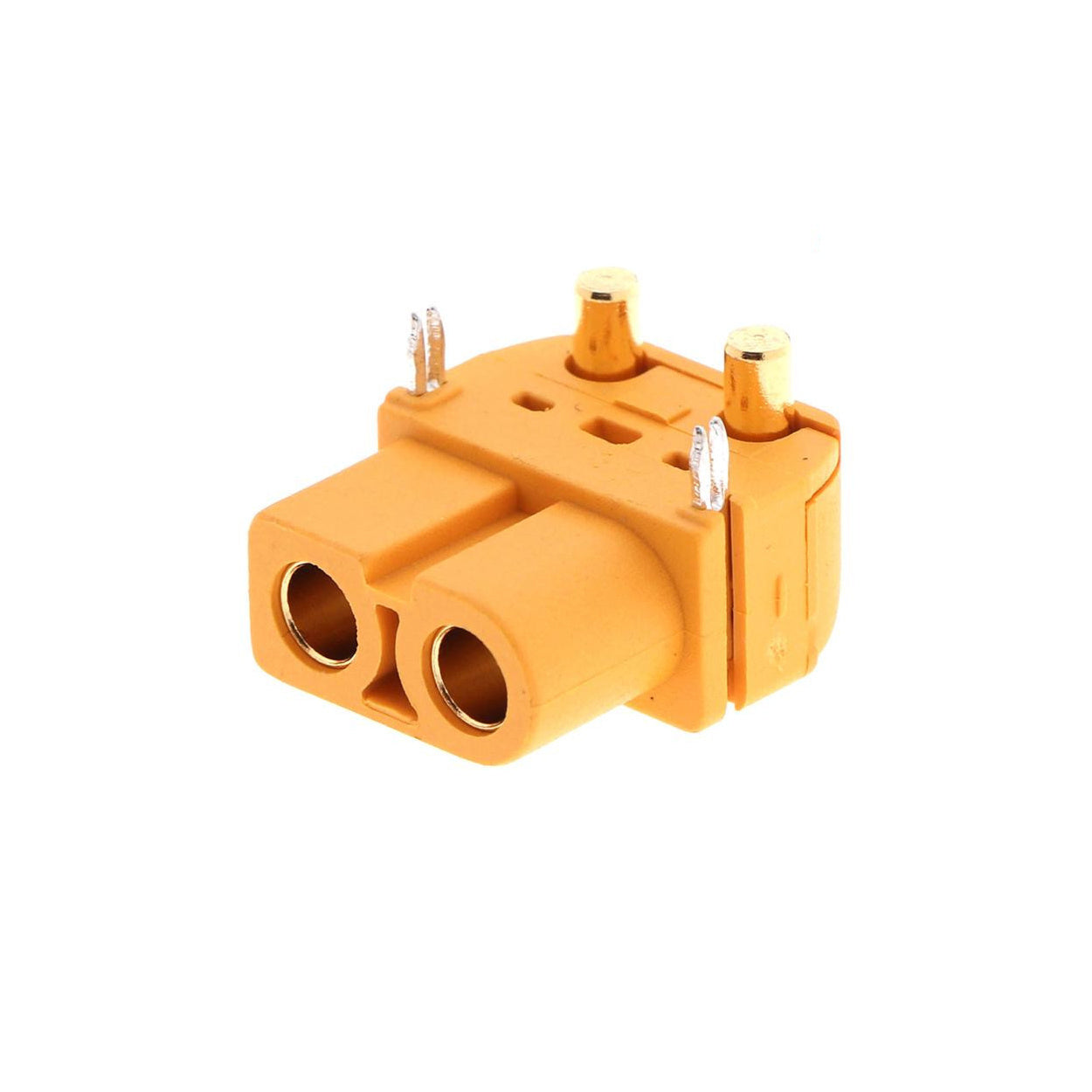

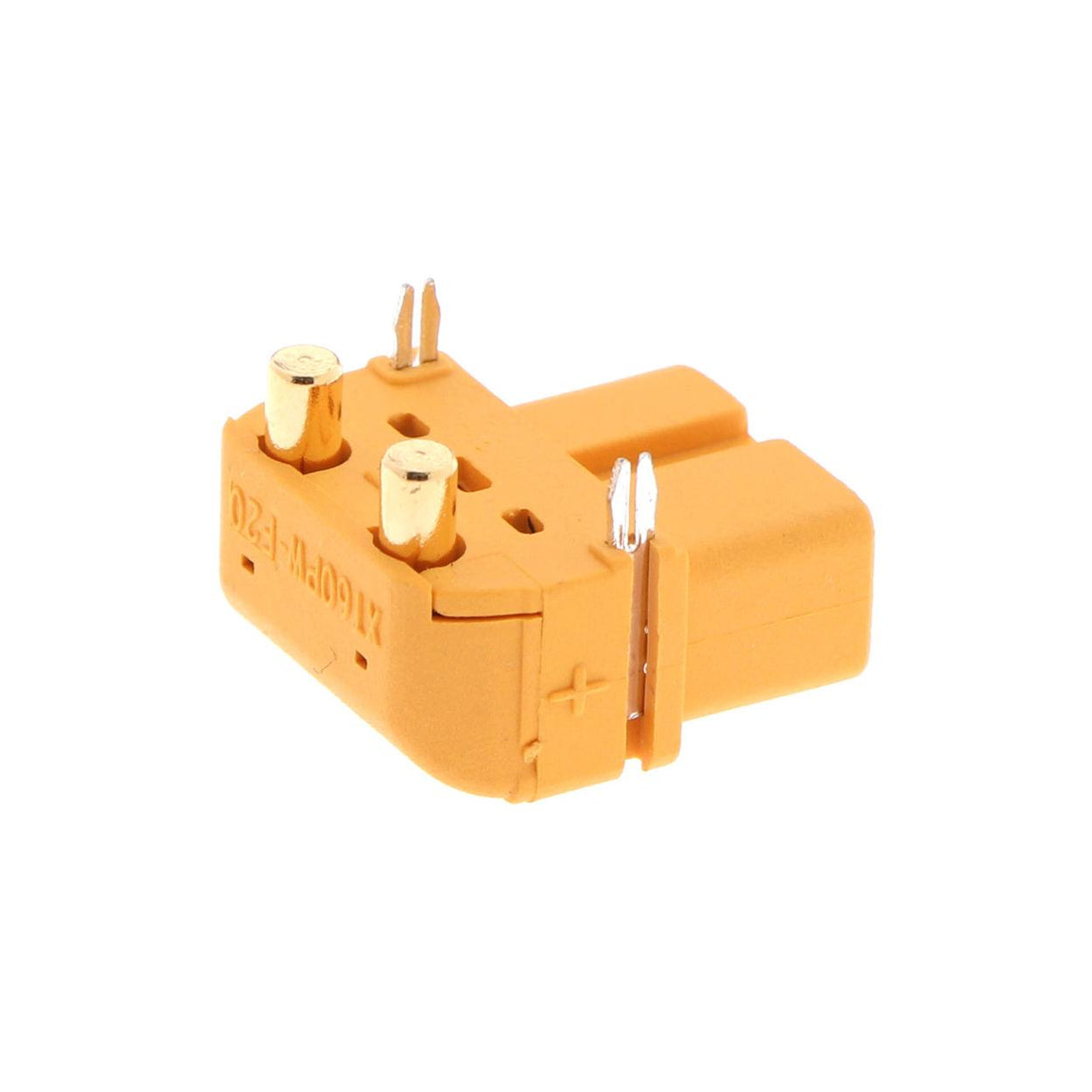

XT60PW-F Female Connector

XT60PW-F Female Connector

The XT60PW-F Female Connector is a parallel wire (PW) variant of the popular XT60 power connector, designed for applications where a low-profile, side-exit wire routing is required. The PW design allows the wire to exit parallel to the connector body rather than from the rear, making it ideal for tight battery bays, compact ESC installations, and builds where vertical wire clearance is limited.

• Connector Type: XT60PW-F (Female, Parallel Wire)
• Current Rating: 60A continuous
• Gender: Female (battery side)
• Wire Exit: PW – parallel wire exit for low-profile, side-exit wiring
• Material: High-temperature nylon housing with gold-plated bullet contacts
• Wire Gauge Compatibility: Suitable for 12AWG–16AWG wire
• Application: LiPo battery connectors in tight battery bays, compact RC aircraft builds, low-profile ESC wiring, and space-constrained RC power systems
• Compatibility: Mates with standard XT60 and XT60PW male connectors
• Advantages:

• Parallel wire exit reduces overall connector height – ideal for tight battery compartments
• Gold-plated contacts for low resistance and long-lasting corrosion-free connection
• 60A continuous current rating handles high-power RC battery systems
• High-temperature nylon withstands soldering heat and operational temperatures
• Compatible with all standard XT60 male connectors

The space-saving XT60 solution for tight builds — the XT60PW-F female connector delivers full XT60 60A performance with a parallel wire exit that keeps your battery wiring flat and low-profile, making it the ideal choice for compact RC aircraft, slim battery bays, and any build where vertical wire clearance is at a premium.
