XT60H-M Male Connector

XT60H-M Male Connector

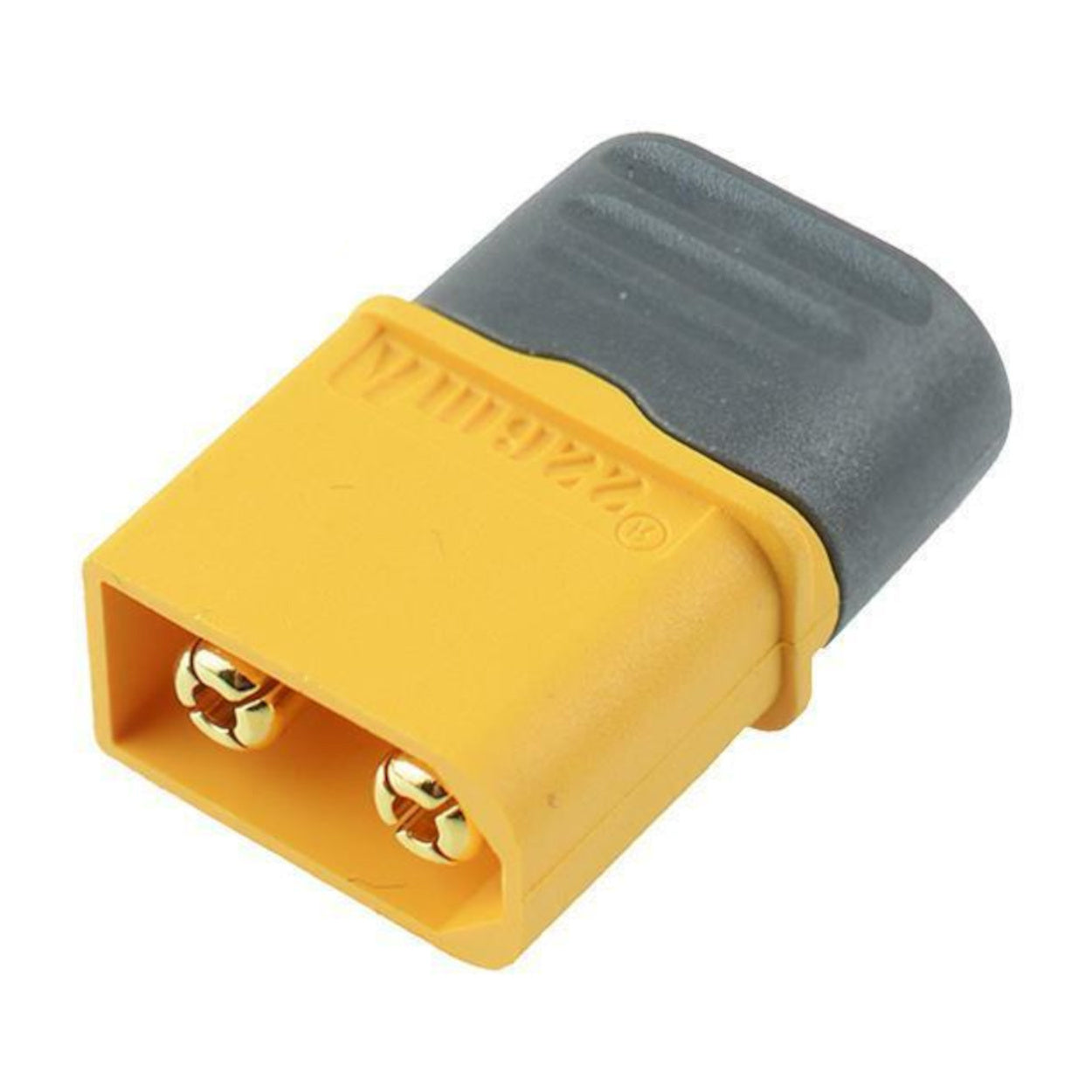

The XT60H-M Male Connector is an updated variant of the popular XT60 power connector, featuring an improved housing (H) design with better wire strain relief and a cleaner, more professional finish. The male gender makes it the ESC/device-side connector in standard RC power systems, and the XT60H housing provides a more robust wire exit compared to the original XT60 design.

• Connector Type: XT60H-M (Male, Housing variant)
• Current Rating: 60A continuous
• Gender: Male (ESC / device side)
• Housing: XT60H – improved housing with better wire strain relief and cleaner finish
• Material: High-temperature nylon housing with gold-plated bullet contacts
• Wire Gauge Compatibility: Suitable for 12AWG–16AWG wire
• Application: ESC power input leads, charger output leads, power distribution wiring, RC aircraft, RC cars, drones, and field charging systems
• Compatibility: Mates with standard XT60 and XT60H female connectors
• Advantages:

• Gold-plated contacts for low resistance and long-lasting corrosion-free connection
• Improved XT60H housing – better wire strain relief and more secure wire exit than original XT60
• 60A continuous current rating handles high-power RC battery systems
• High-temperature nylon withstands soldering heat and operational temperatures
• Backward compatible with all standard XT60 female connectors

The upgraded XT60 male for cleaner, more reliable builds — the XT60H-M male connector delivers the same trusted 60A performance of the XT60 standard with an improved housing design that makes soldering easier and wire exits more secure, giving your RC power system a professional, long-lasting finish.
