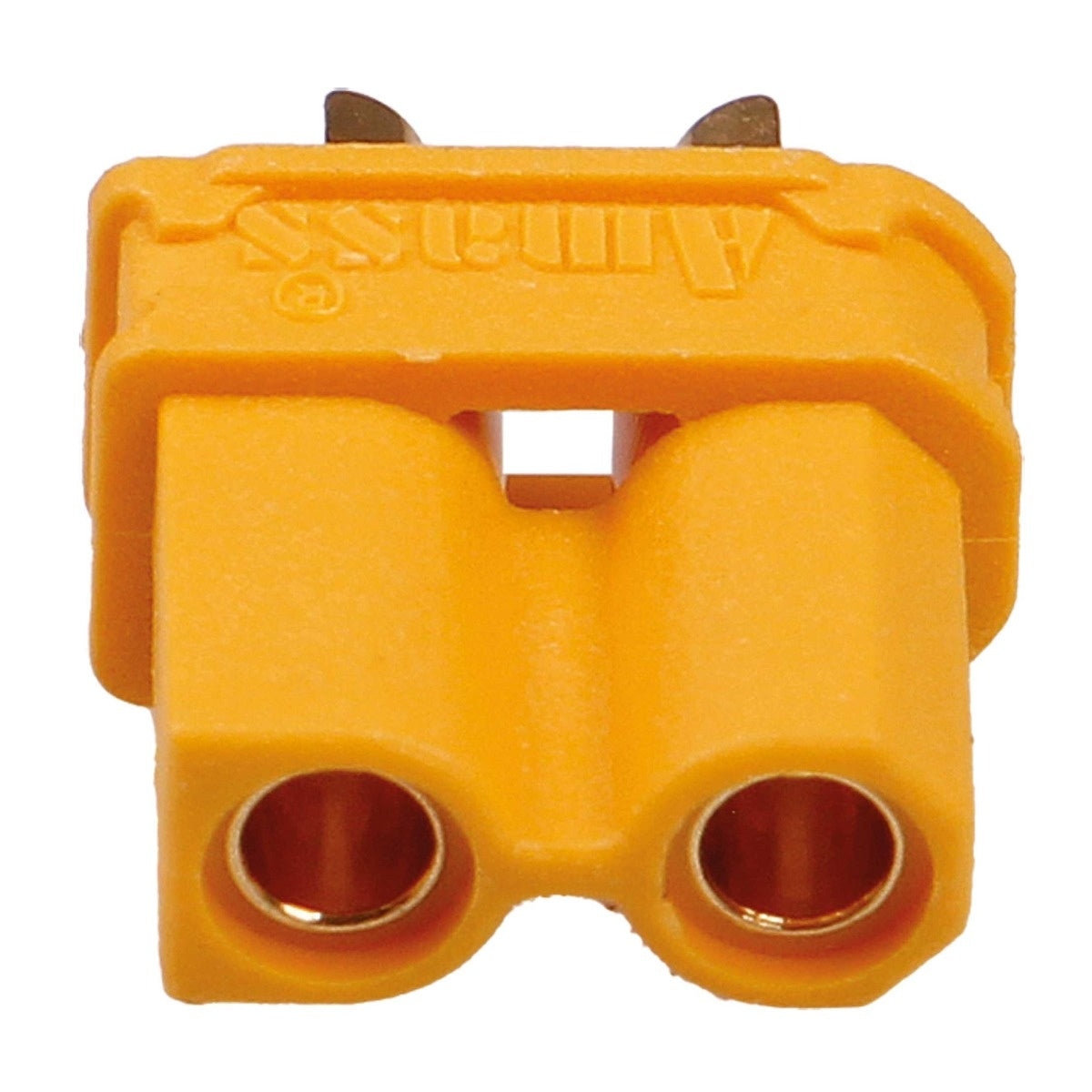

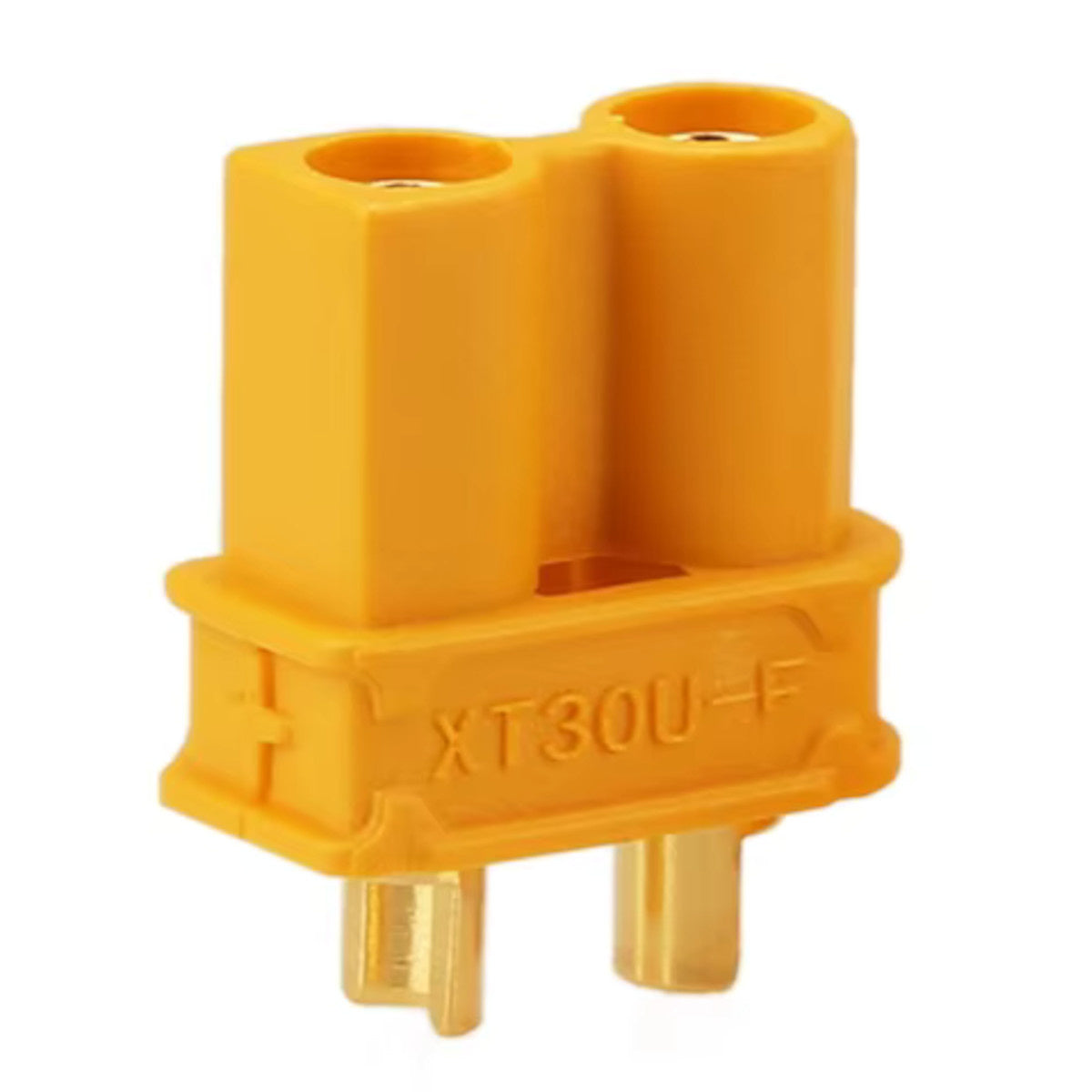

XT30U Female Connector

XT30U Female Connector

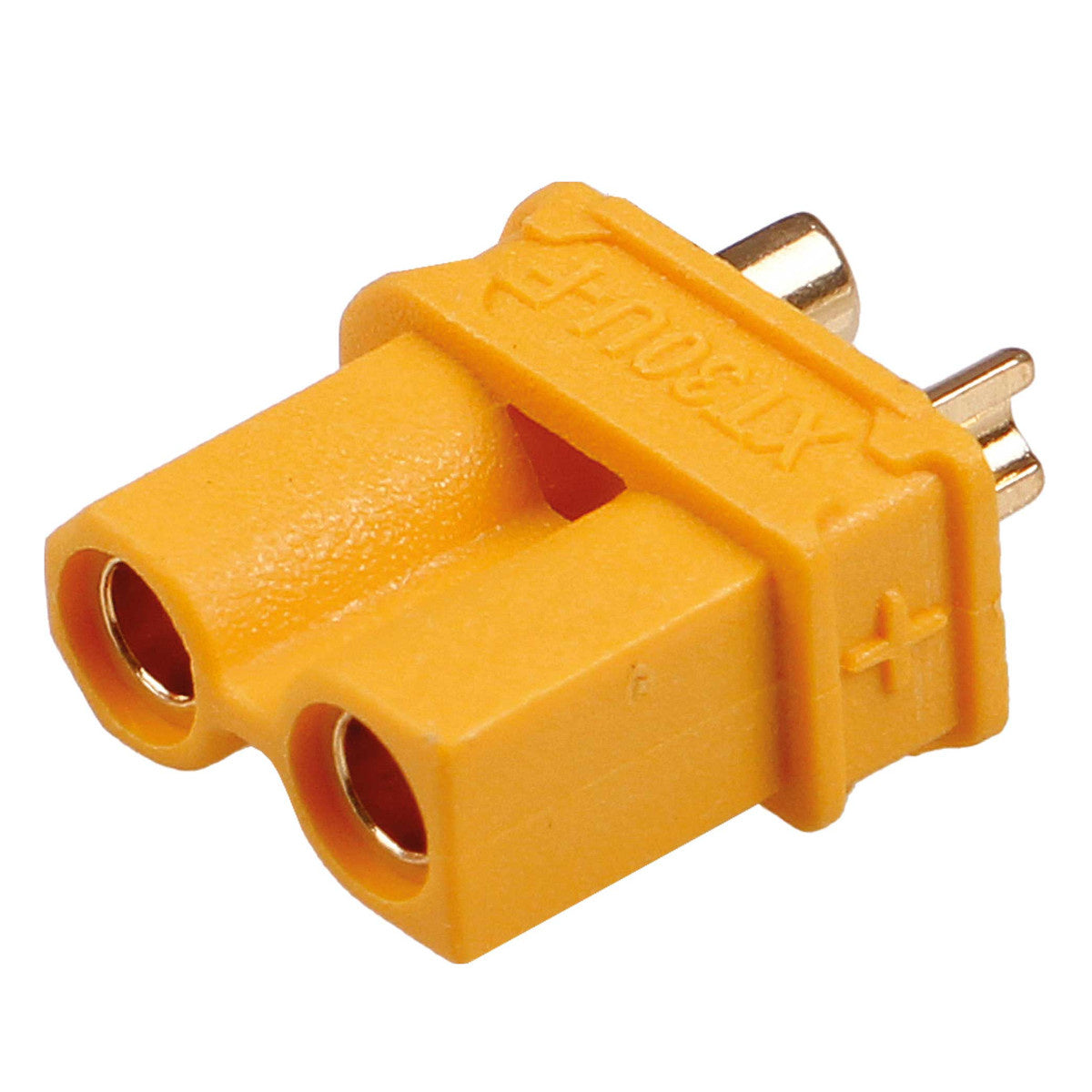

The XT30U Female Connector is a high-quality, compact power connector widely used in small RC aircraft, micro drones, and lightweight RC builds. The XT30U is the updated version of the original XT30, featuring an improved housing design for easier soldering and more secure wire retention. With a 30A continuous current rating, it is the go-to connector for small LiPo batteries, micro ESCs, and compact power systems where the XT60 is too large and heavy.

• Connector Type: XT30U (Female)
• Current Rating: 30A continuous (60A peak)
• Gender: Female (battery side)
• Material: High-temperature nylon housing with gold-plated bullet contacts
• Wire Gauge Compatibility: Suitable for 20AWG–16AWG wire
• Application: Small LiPo battery connectors, micro ESC power leads, small RC aircraft, micro FPV drones, and lightweight RC builds
• Compatibility: Mates with XT30U male connector
• Advantages:

• Gold-plated contacts for low resistance and long-lasting corrosion-free connection
• High-temperature nylon housing withstands soldering heat and operational temperatures
• Compact and lightweight – ideal for weight-sensitive micro and mini builds
• Positive-locking fit prevents accidental disconnection during flight or operation
• XT30U updated housing – easier to solder and more secure wire exit than original XT30

The standard power connector for small RC builds — the XT30U female connector is the trusted choice for micro and mini RC aircraft, FPV drones, and small LiPo battery systems where a compact, reliable, low-resistance power connection is essential.
