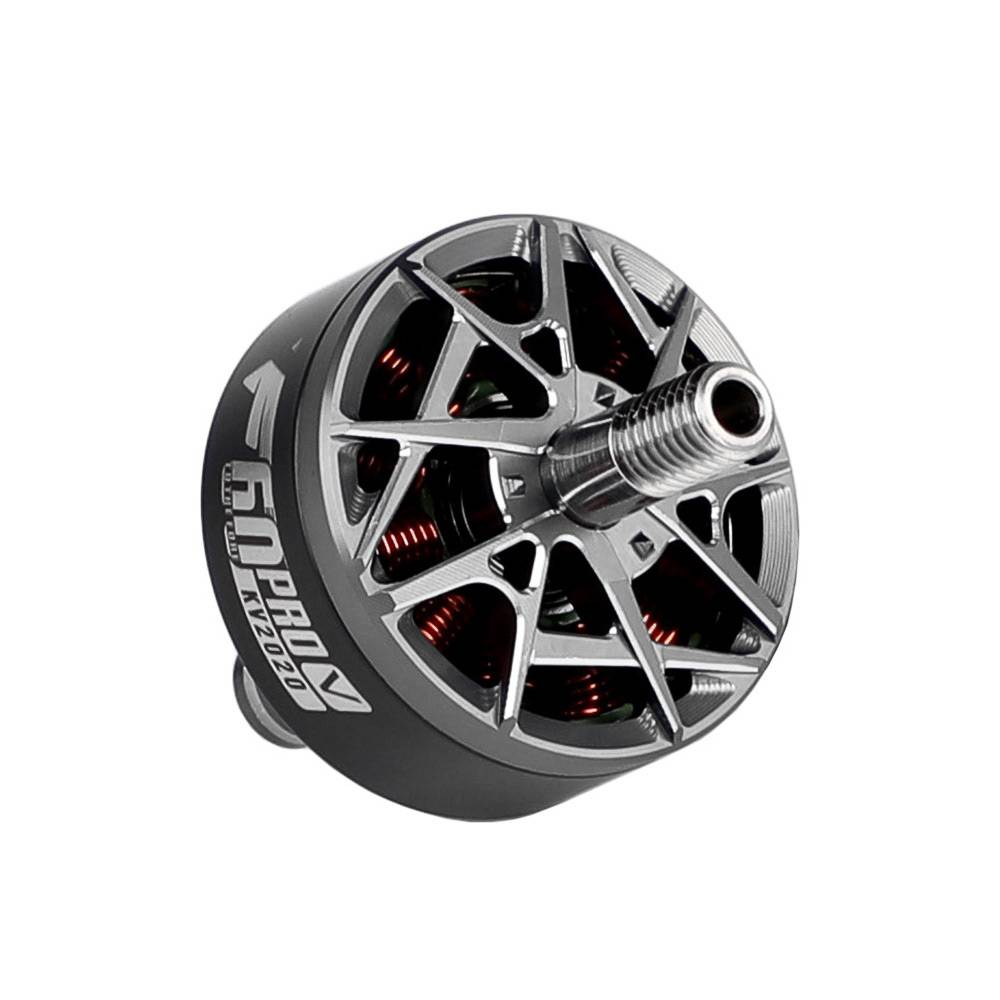

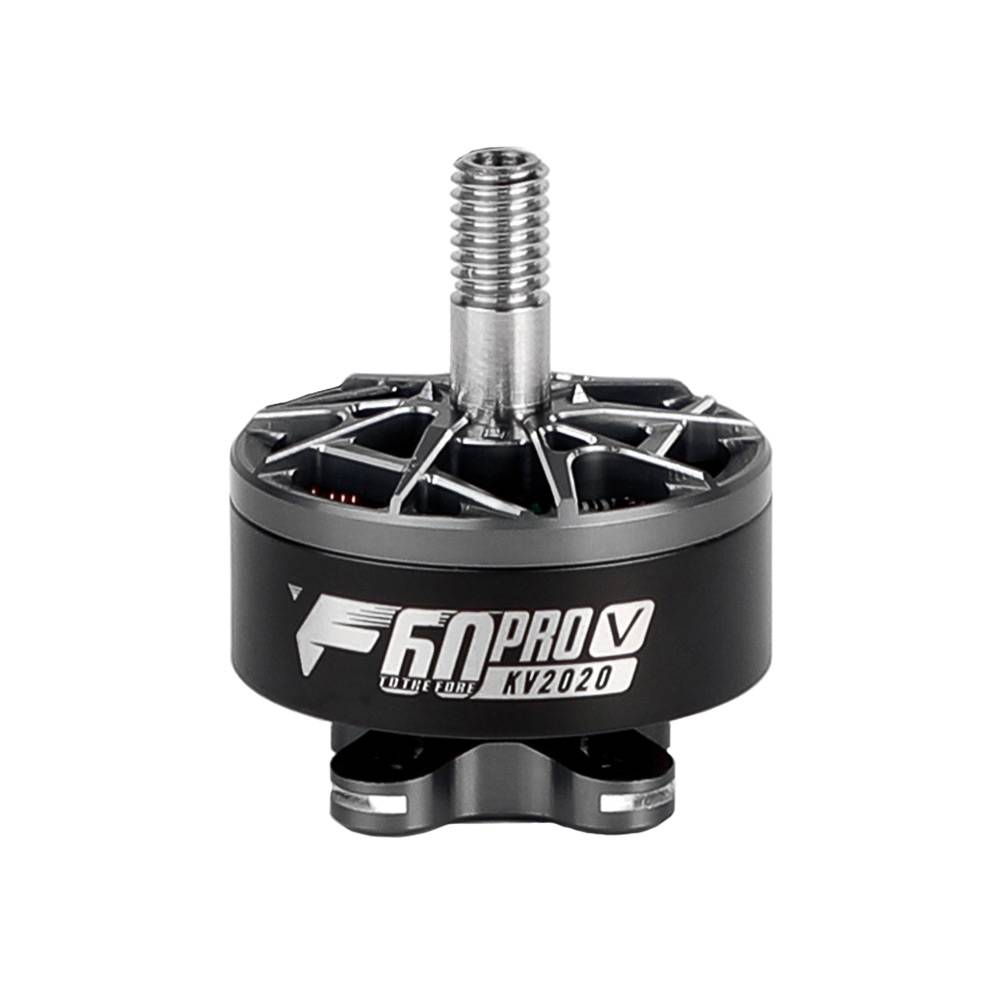

T-Motor F60 PRO V Brushless Motor 1750KV / 1950KV / 2020KV / 2550KV

T-Motor F60 PRO V Brushless Motor – 1750KV / 1950KV / 2020KV / 2550KV

The T-Motor F60 PRO V is the fifth generation of T-Motor's high-power F60 PRO series, engineered for 5-inch to 6-inch FPV freestyle, racing, and CineLifter platforms. With four KV options spanning 1750KV to 2550KV, it covers everything from smooth 6S long-range cruising to aggressive 4S racing — all backed by T-Motor's industry-leading build quality.

Key Specifications

• Brand: T-Motor
• Series: F60 PRO V (5th Generation)
• Motor Size: F60 / 2306+
• KV Options: 1750KV / 1950KV / 2020KV / 2550KV
• Recommended Battery: 4S–6S LiPo
• Recommended Prop: 5"–6"
• Application: FPV Freestyle / Racing / CineLifter / Long Range

KV Guide

• 1750KV — Best for 6S builds with large props; maximum efficiency and flight time
• 1950KV — Versatile 6S option; strong torque with excellent efficiency
• 2020KV — Balanced 4S–5S performer; smooth freestyle power
• 2550KV — High-speed 4S racing; aggressive throttle response and top-end punch

Features

• 5th generation F60 PRO design with refined stator geometry and improved thermal management
• Premium N52H high-temperature magnets for consistent thrust under load
• Precision CNC-machined titanium-coated shaft for crash resistance and longevity
• Low-vibration construction for smooth FPV footage and stable flight
• Compatible with standard 30.5×30.5mm motor mounts

The F60 PRO V is built for pilots who demand more — more power, more efficiency, more durability. Pick your KV, pick your build, and fly with confidence.

KV: 1950

• Motor Dimensions: 26.8*31.7mm
• Peak Current (10s): 49.3A
• Prop Mounting Size: 5mm
• Weight (Inc. Cable): 33.9g
• Max.Power (10s): 1216W
• Rated Voltage (Lipo): 6S
• Lead: 20#AWG 150mm
• Configuration: 12N14P.
• Shaft Diameter: 4mm
• Idle Current: 1.1A
• KV: 1950
