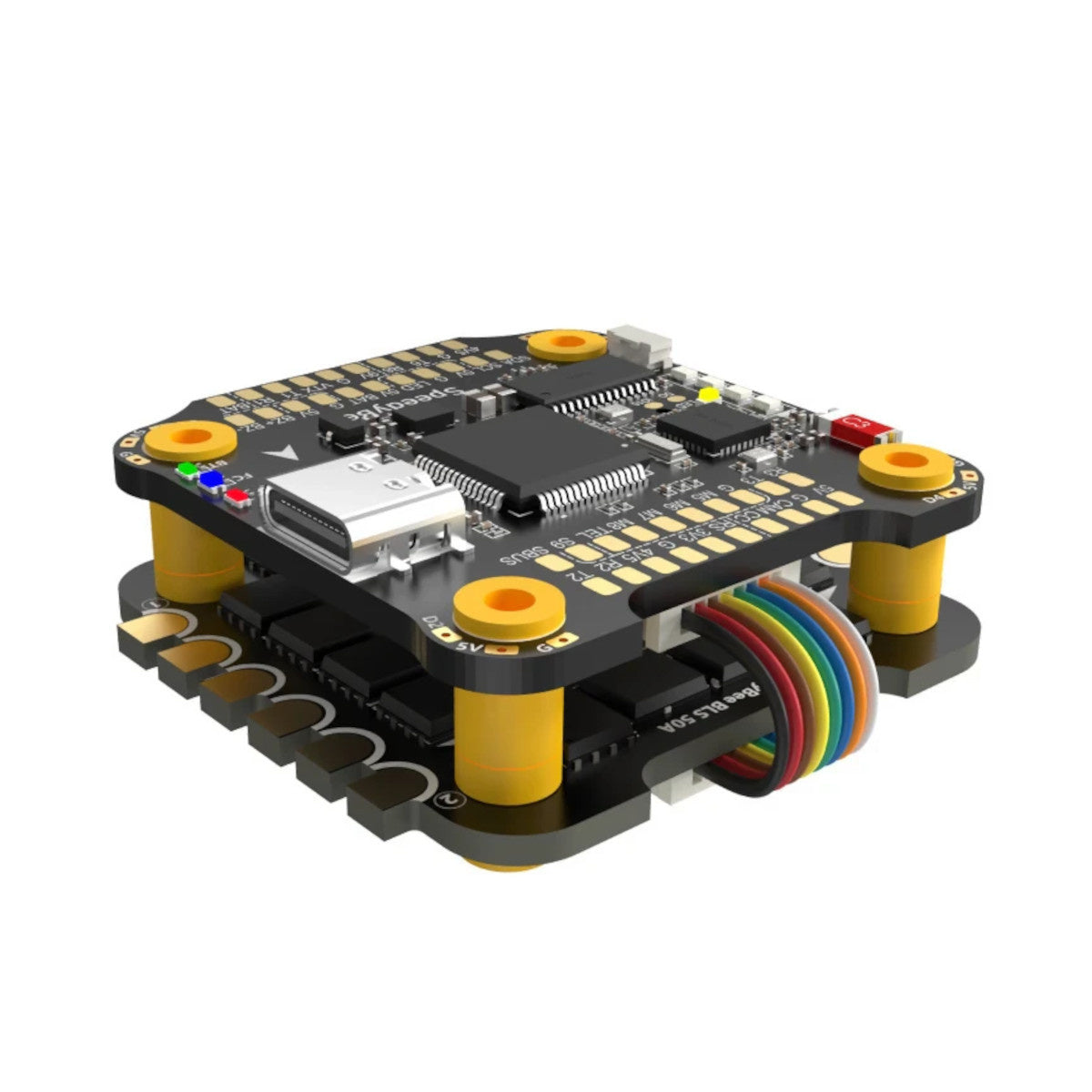

SpeedyBee F405 V3 BLS 50A Flight Controller & ESC Stack – DIY

SpeedyBee F405 V3 BLS 50A Flight Controller & ESC Stack – DIY

The SpeedyBee F405 V3 BLS 50A Stack is a feature-packed flight controller and ESC combo designed for FPV freestyle, racing, and DIY drone builds. Combining the STM32F405-based F405 V3 flight controller with a BLHeli-S 50A 4-in-1 ESC, this stack delivers reliable, smooth performance for 3-5 inch FPV builds at an accessible price point — making it a popular choice for pilots building their first high-performance quad or looking for a dependable everyday flyer stack.

Flight Controller – SpeedyBee F405 V3

• Processor: STM32F405 (168MHz)
• Gyro: ICM-42688-P (high-performance, low-noise 6-axis IMU)
• Firmware: Betaflight (fully supported)
• Barometer: Yes
• OSD: Integrated AT7456E OSD chip
• Blackbox: Onboard flash memory
• Connectivity: Bluetooth configuration via SpeedyBee app (no USB required for basic setup)
• UARTs: Multiple UARTs for GPS, VTX, receiver, and peripheral connections
• Mounting: 30.5x30.5mm standard stack pattern

ESC – BLS 50A 4-in-1

• Continuous Current: 50A per motor
• Firmware: BLHeli-S
• Protocol Support: DSHOT300, DSHOT600, Multishot, Oneshot
• Mounting: 30.5x30.5mm standard stack pattern

Stack Highlights

• Bluetooth configuration via SpeedyBee app – tune and configure without a laptop at the field
• ICM-42688-P gyro delivers clean, low-noise flight data for a smooth tune
• 50A per channel handles 3-5 inch builds with confidence
• Integrated OSD and blackbox simplify build wiring and data logging
• Beginner-friendly setup with SpeedyBee’s intuitive app ecosystem

The smart choice for DIY FPV builders — the SpeedyBee F405 V3 BLS 50A stack combines solid hardware with SpeedyBee’s unique Bluetooth configuration capability, making it one of the most builder-friendly stacks available for 3-5 inch FPV freestyle and racing builds.
