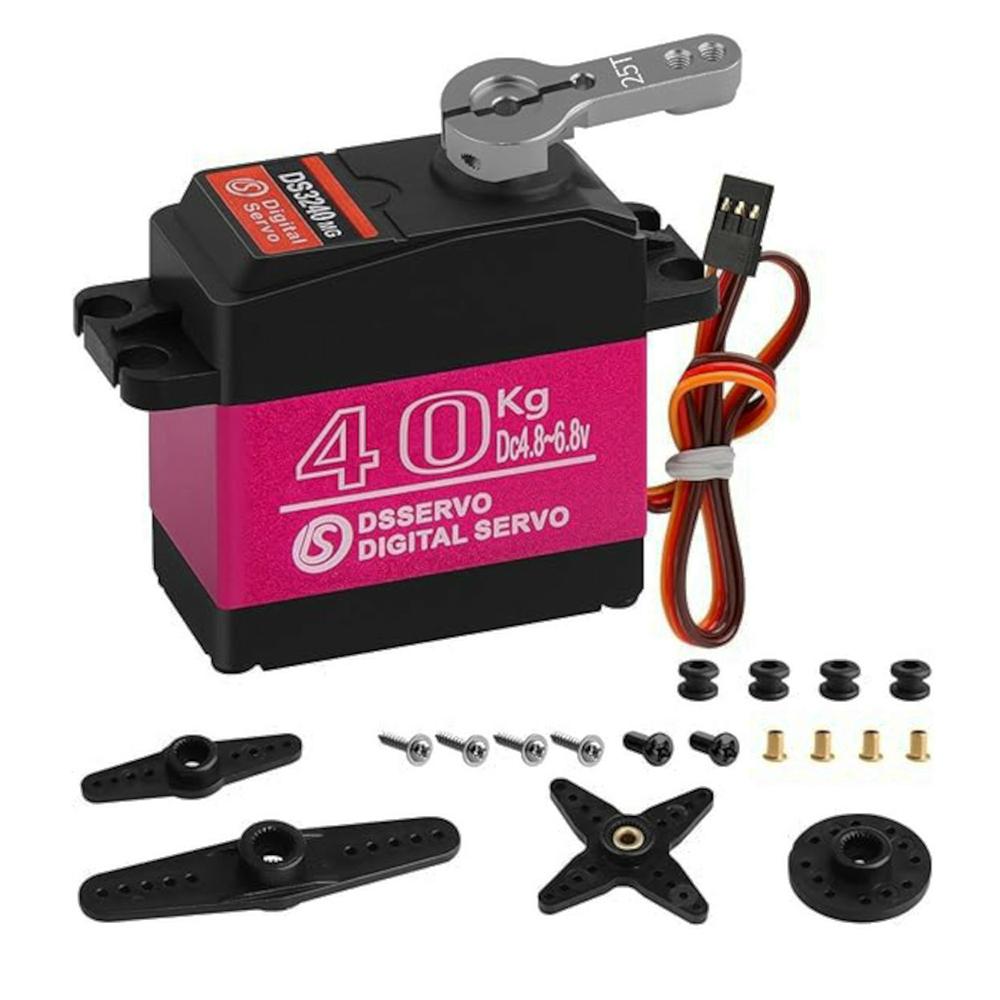

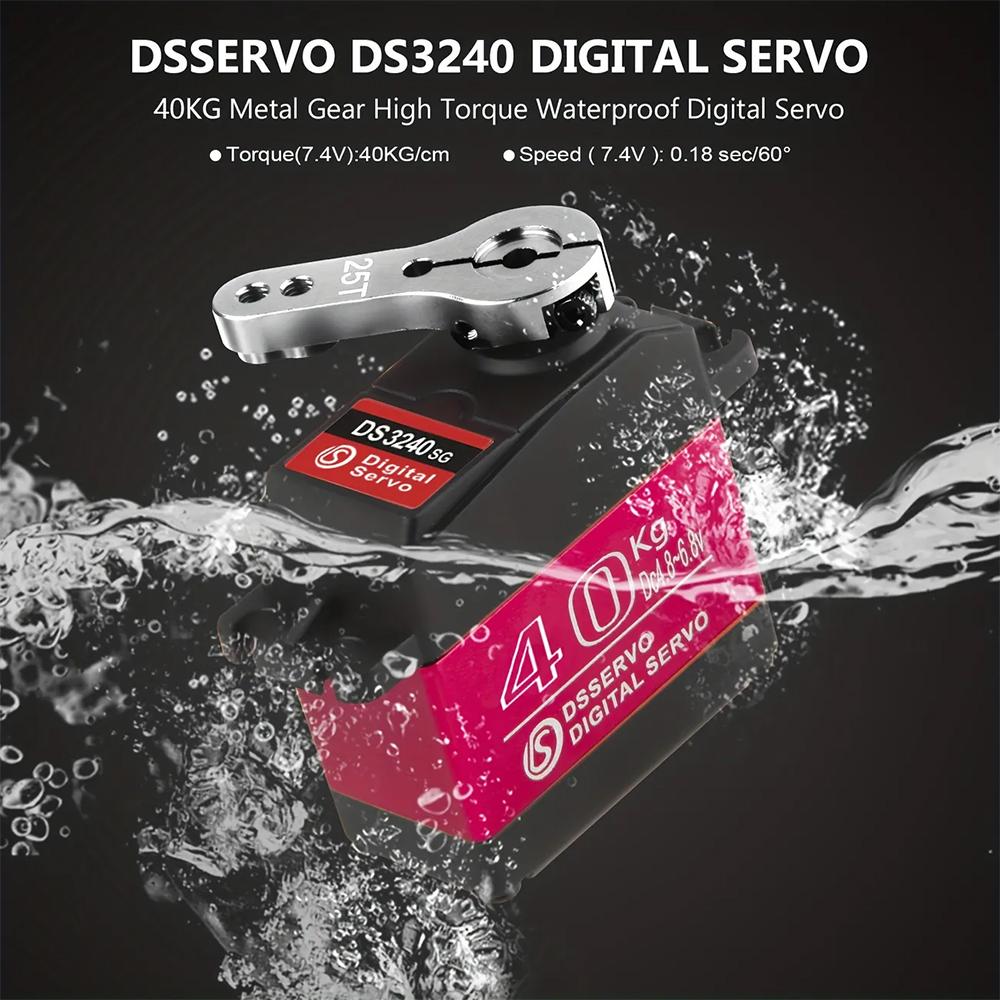

Servo 40KG DS3240MG 270Degree Metal Gear Digital Servo Motor Arduino High Torque
Servo 40KG DS3240MG 270Degree Metal Gear Digital Servo Motor Arduino High Torque
Regular price
Rs. 1,899.00
Regular price
Sale price
Rs. 1,899.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Model: DS3240 40KG.
- Deliver upto 40kgs of torque @ 6.8V
- Operating Voltage: 4.8 ~ 6.8V DC
- CNC aluminum middle Shell for IP66 Protection from Water & Dust
- Dual ball bearings for smooth operation and long life
- High-performance digital standard servo offers higher accuracy compared to standard servos
- High-precision metal gears with hard anodizing for high-torque applications
- Torque Digital Servo Stall Torque (5V): 39.5 kg/cm (263.8oz/in)
- Stall Torque (6.8V): 34.5kg/cm (298.5 oz/in)
- Speed : 0.2 sec/60°(5V) / 0.17 sec/60°(6.8V)
- Signal Dead Band: 3μs
- Weight: 58g±2g
- Motor Type: DC Motor
- Gear Type: Copper & Aluminum
- Working frequency: 1520μs / 333hz
- Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
- Command signal: Pulse width modification
