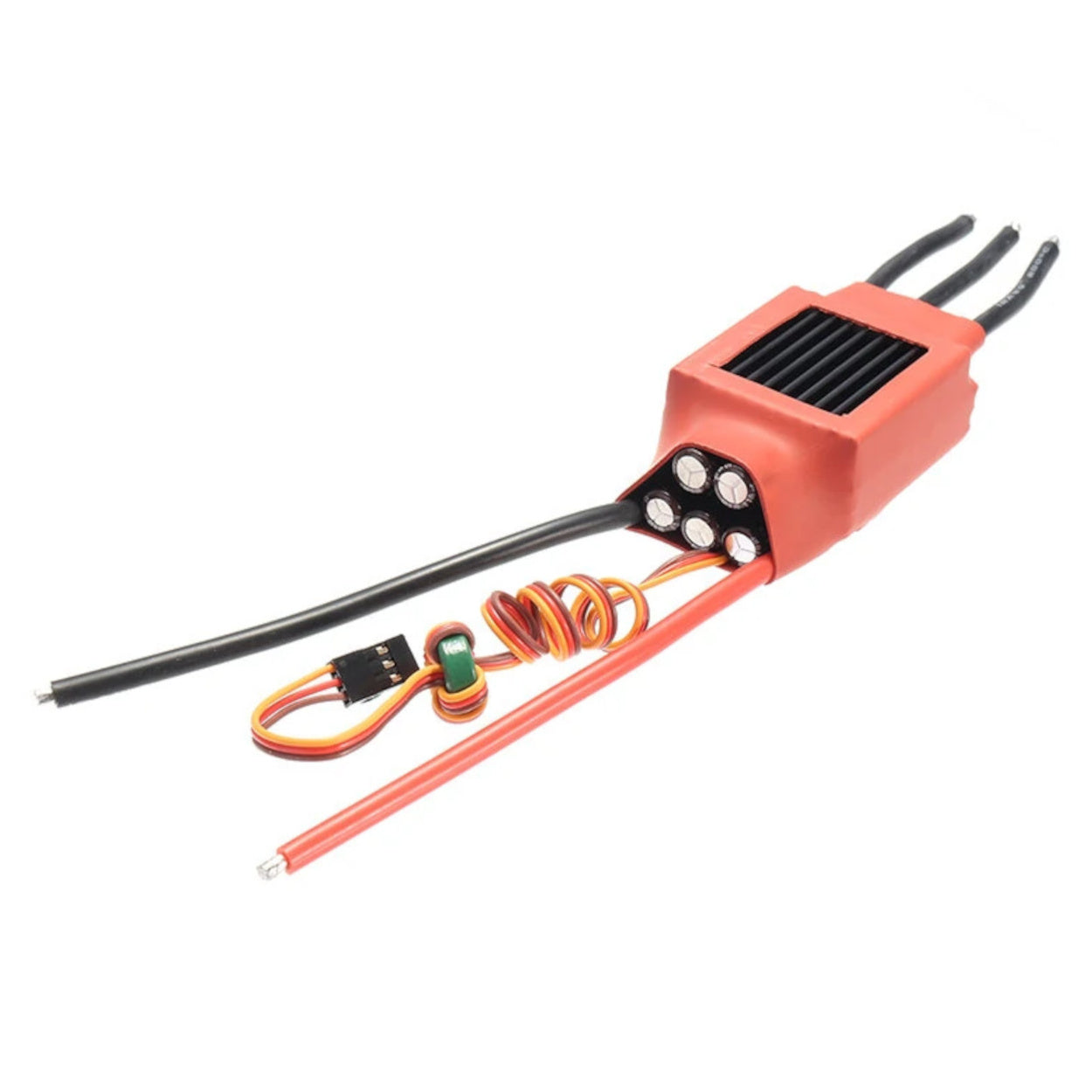

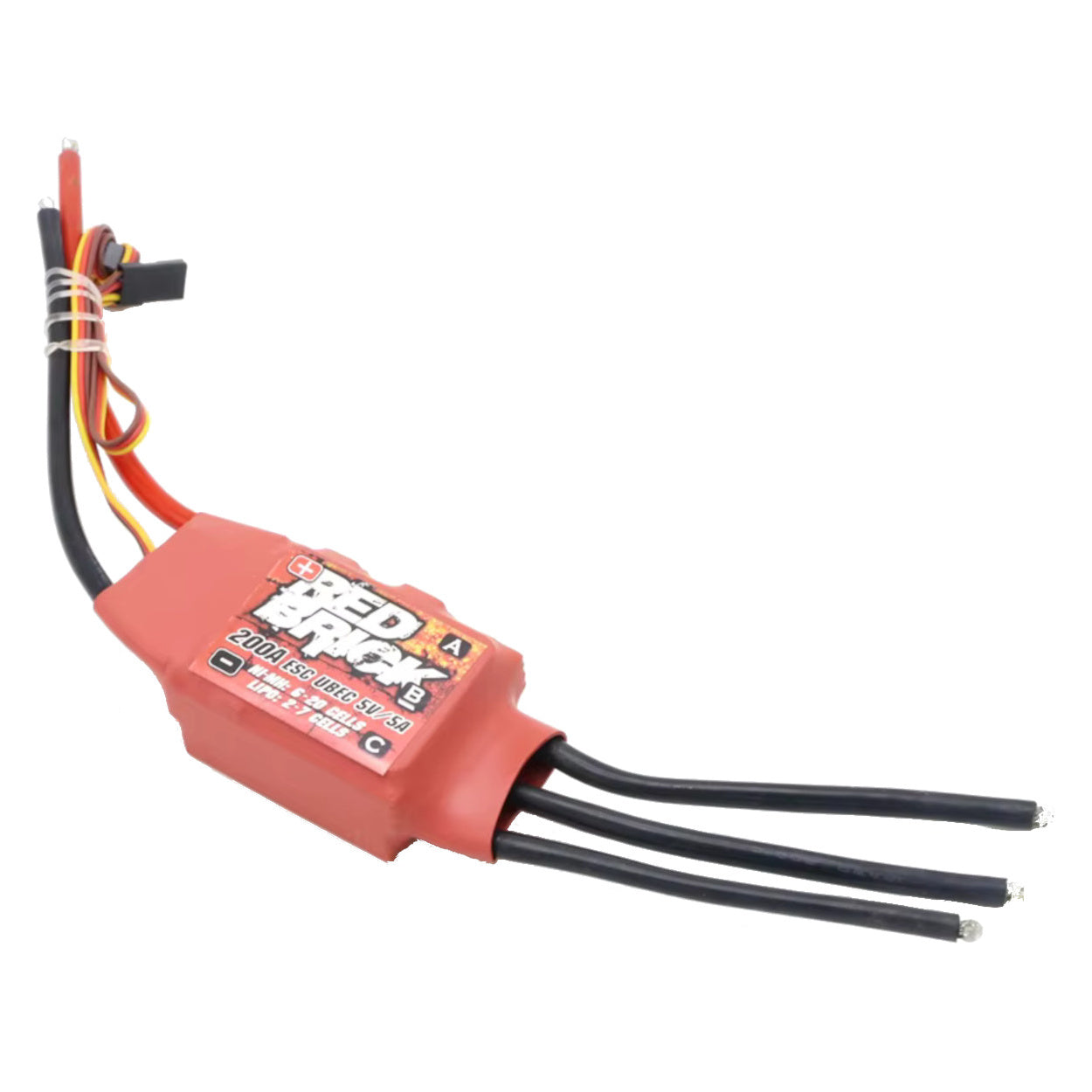

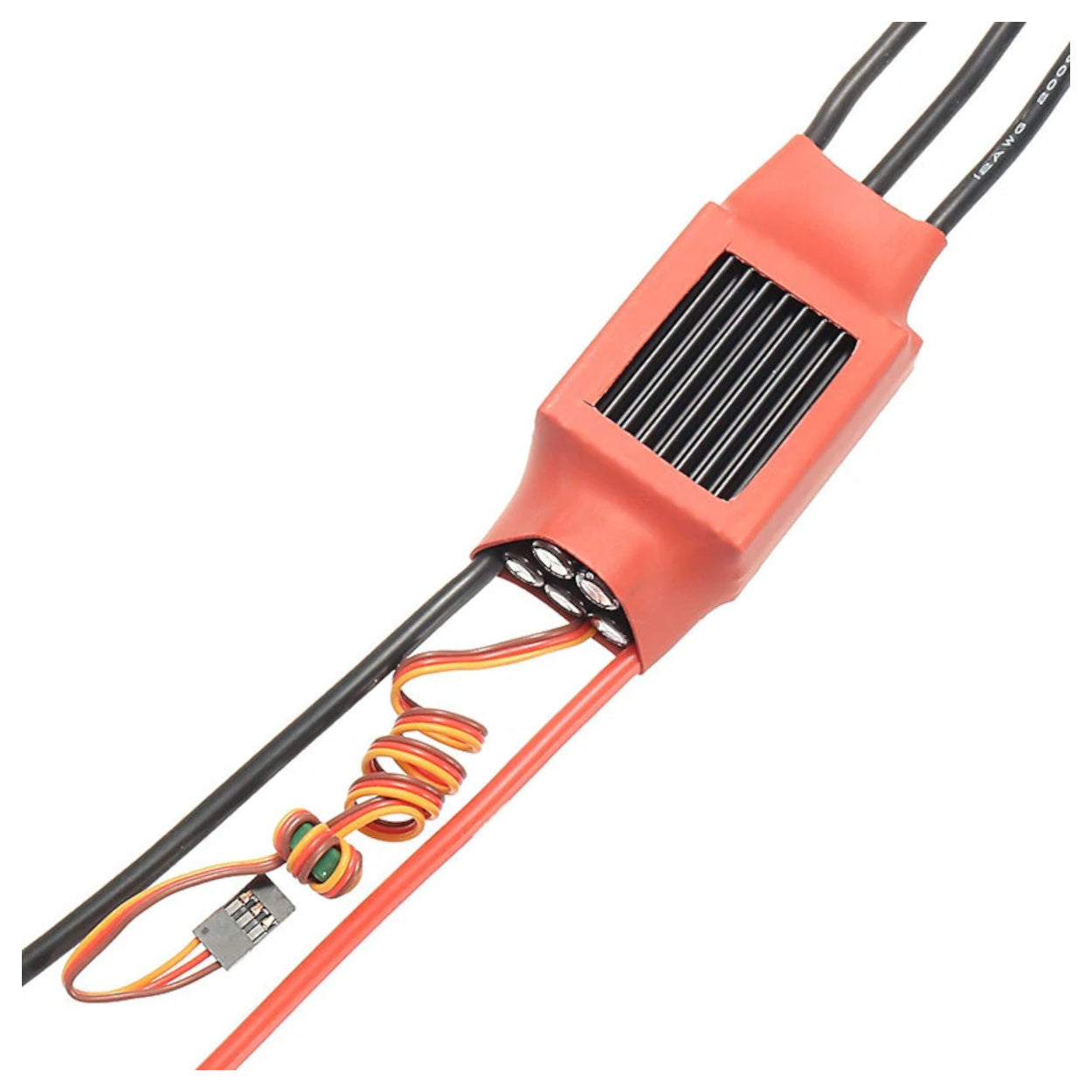

Red Brick 200A BLDC ESC – 2-7S LiPo Electronic Speed Controller with 5V/5A UBEC

Red Brick 200A BLDC ESC – 2-7S LiPo | 5V/5A UBEC

The Red Brick 200A Brushless Electronic Speed Controller (ESC) is a high-current, wide-voltage ESC designed for large electric RC aircraft, multi-rotors, and high-power electric drive systems. With a 200A continuous current rating and support for 2S to 7S LiPo packs, it delivers the raw power handling needed for large electric warbirds, giant sport planes, and heavy-lift builds. The integrated 5V/5A UBEC provides clean, regulated power to your receiver and servos, eliminating the need for a separate BEC or receiver battery.

• Brand: Red Brick
• Continuous Current: 200A
• Voltage Range: 2S–7S LiPo (7.4V–25.9V)
• UBEC Output: 5V / 5A (integrated, switching UBEC)
• Motor Type: Brushless (BLDC) – sensorless
• Programming: Programmable via transmitter stick or programming card
• Protection Features: Low voltage cutoff, over-temperature protection, throttle signal loss protection
• Application: Large electric RC aircraft, giant sport planes, warbirds, heavy-lift multi-rotors, and high-power electric drive systems
• Cooling: Aluminium heat sink case with active or passive cooling

Serious power for serious builds — the Red Brick 200A ESC handles the highest current demands of large electric RC aircraft with confidence, while the integrated 5V/5A UBEC keeps your receiver and servo system powered cleanly and reliably throughout the flight.
