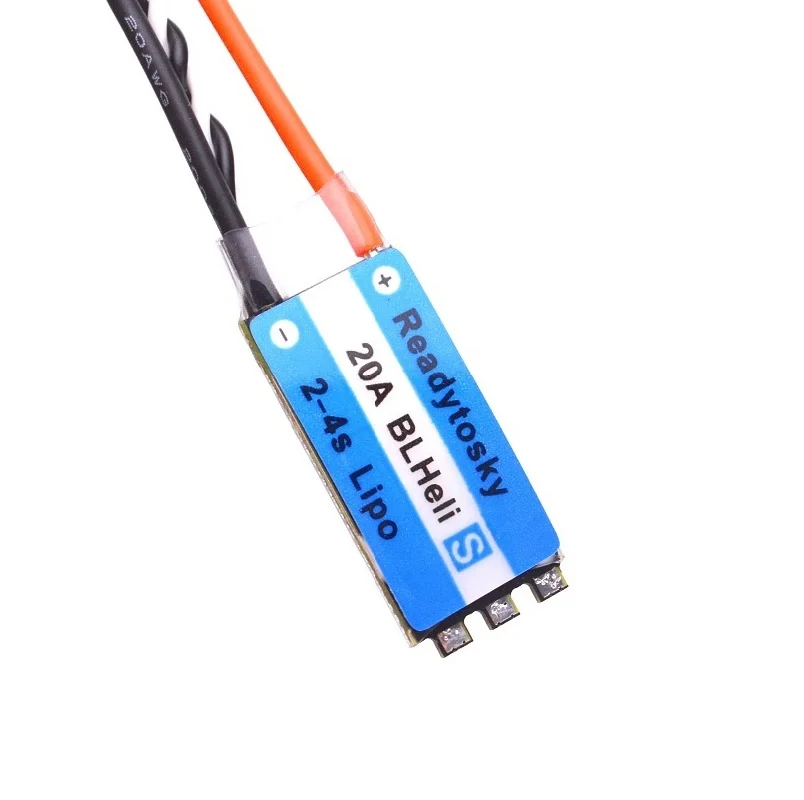

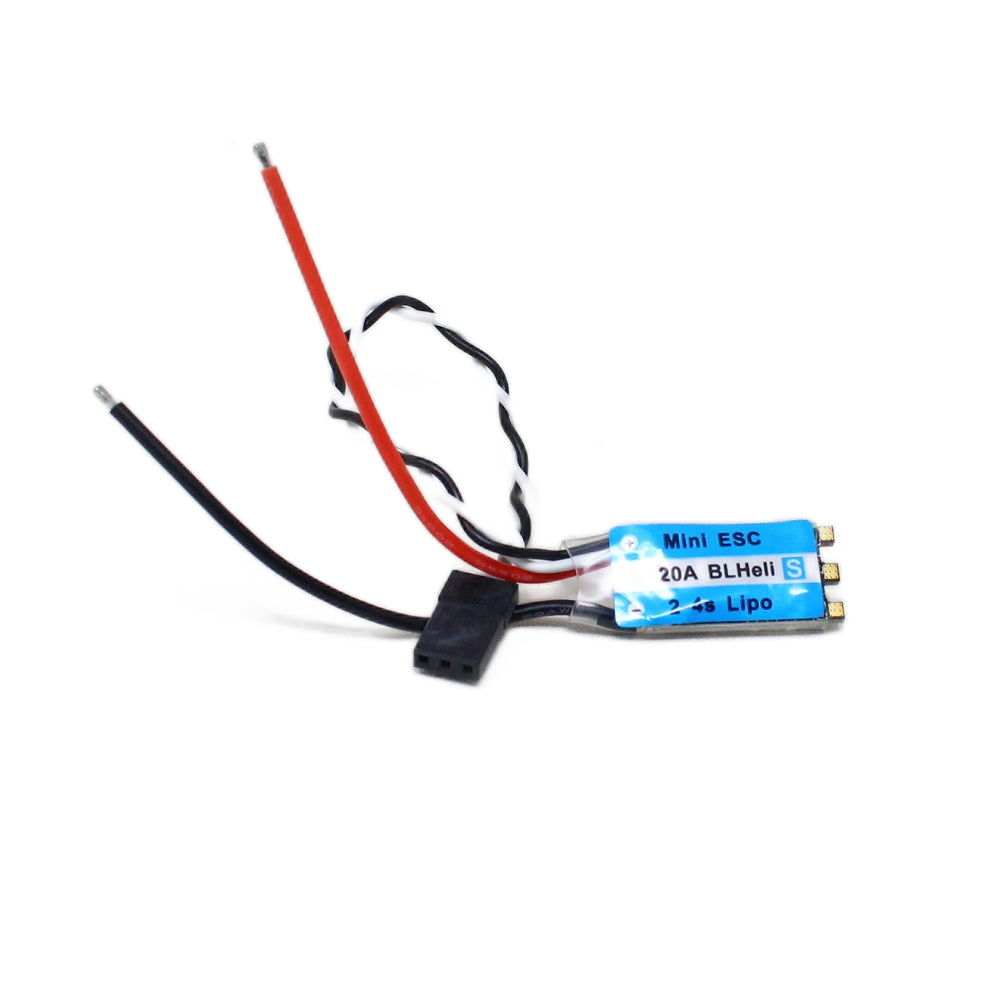

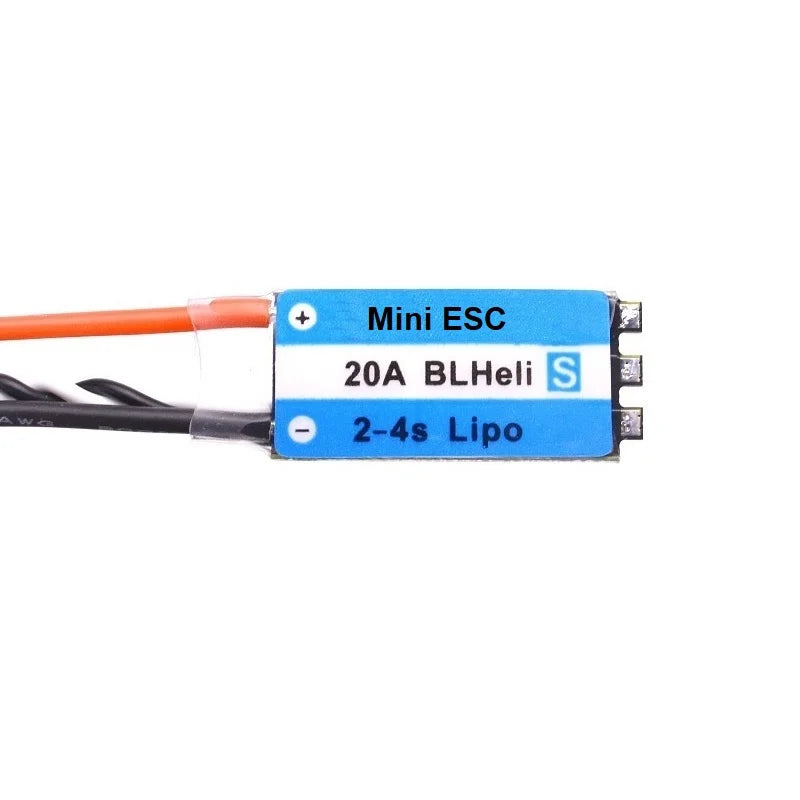

Readytosky 20A 2-4S Mini BLHeli-S OPTO ESC for FPV Race RC Helicopter

Readytosky 20A 2-4S Mini BLHeli-S OPTO ESC for FPV Race RC Helicopter

Rs. 980.00
Rs. 980.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The Readytosky 20A 2-4S Mini BLHeli-S OPTO ESC is designed for FPV race RC helicopters, offering high functionality and performance. It operates at a maximum frequency of 50MHz and includes built-in automatic temperature protection. This ESC is compatible with 2-4S LiPo batteries.

Supporting BLHeli-S firmware, it allows for easy online firmware and parameter upgrades, and includes all BLHeli_S functions. Additionally, it can be programmed for throttle setup and supports both two-way mode and FPV 3D mode.

Applications:

Vehicles & Remote Control Toys

Features:

  1. Firmware: Blheli_S
  2. Wide Compatibility
  3. Lipo:2-4s
  4. Support the newest protocol of Dshot150/300/600
  5. Support PWM, Oneshot125, Oneshot42
  6. smaller size, lighter weight, and easy to build
  7. Stable performance
  8. support two-way mode and FPV 3D mode
  9. Built-in automatic protection of temperature sensor

specification-

Model 20A BLHeli-S OPTO ESC
Suitable Lipo Batteries 2 ~ 4S
Board size 27*12mm
Continuous current 20A
Peak Current(10s) 25A
Dimensions (mm) LxWxH 27*12*5
Weight (gm) 8
Shipping Weight 0.012 kg
Shipping Dimensions 4 × 2 × 1 cm

Package Includes:

1  x Mini BLHeil-S 20A OPTO ESC
