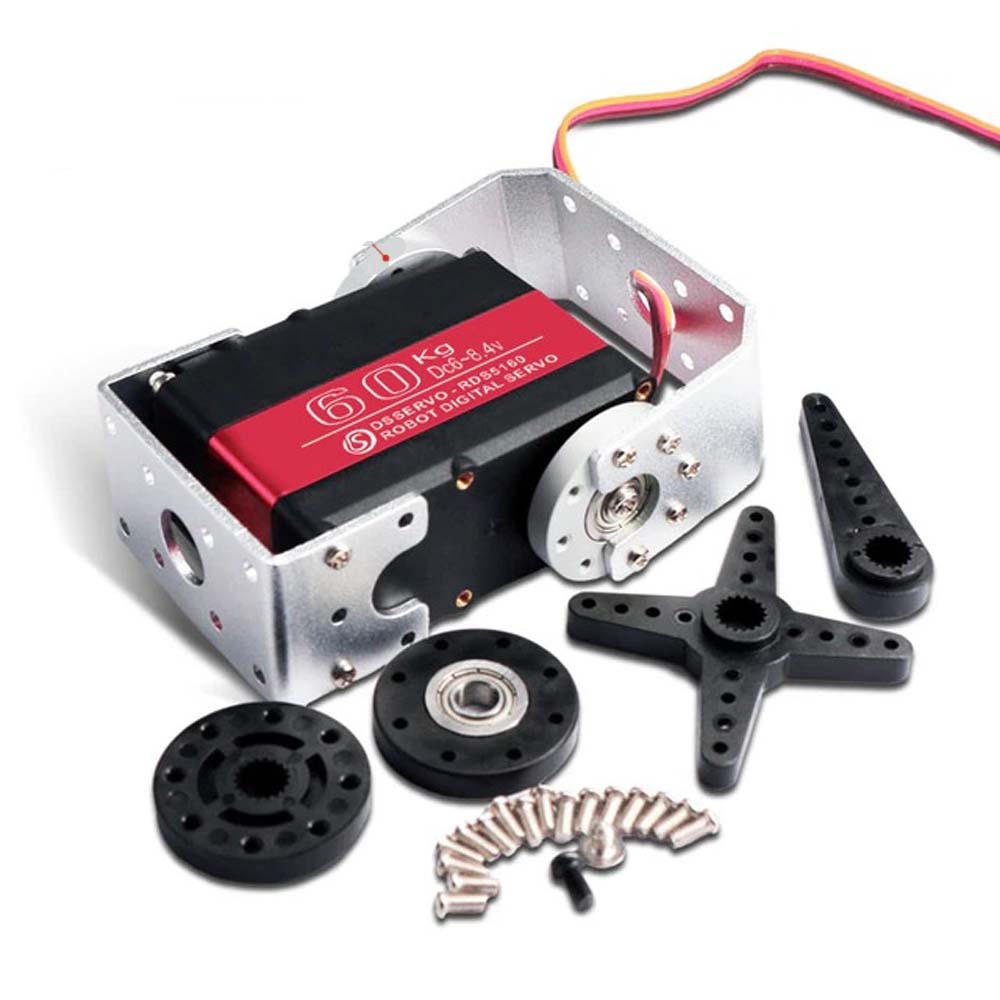

RDS5160 60KG High Torque Digital Servo 270° Metal Gear Dual Shaft

RDS5160 60KG High Torque Digital Servo – 270° Rotation

The RDS5160 is a heavy-duty metal gear digital servo engineered for the most demanding RC, robotics, and Arduino applications. With an exceptional 60KG·cm torque output and a wide 270° rotation range, this servo is built to handle large-scale control surfaces, heavy robotic arms, industrial automation rigs, and high-load pan-tilt systems with ease.

Key Features

• 60KG·cm Torque – Exceptional output for heavy-load and large-scale applications
• 270° Rotation Range – Extended travel for greater positional control
• Full Metal Gear Train – Durable, backlash-resistant, built for longevity
• Digital Signal Processing – Faster response and higher holding torque vs. analog servos
• Dual Shaft Output – Versatile mounting for complex linkage setups
• Arduino & PWM Compatible – Works with standard 50Hz PWM signal (500–2500µs pulse width)
• Coreless Motor – Smooth, efficient operation with reduced heat buildup

Specifications

• Model: RDS5160
• Torque: 60KG·cm @ 6V
• Rotation: 270°
• Operating Voltage: 4.8V – 6.8V
• Signal: PWM (500–2500µs)
• Gear Material: Full Metal
• Connector: JR / Futaba compatible

Ideal For

• Large-scale RC aircraft control surfaces
• Heavy robotic arms and industrial grippers
• Arduino / Raspberry Pi high-load servo projects
• Heavy-duty pan-tilt camera rigs
• Custom automation and large CNC builds
