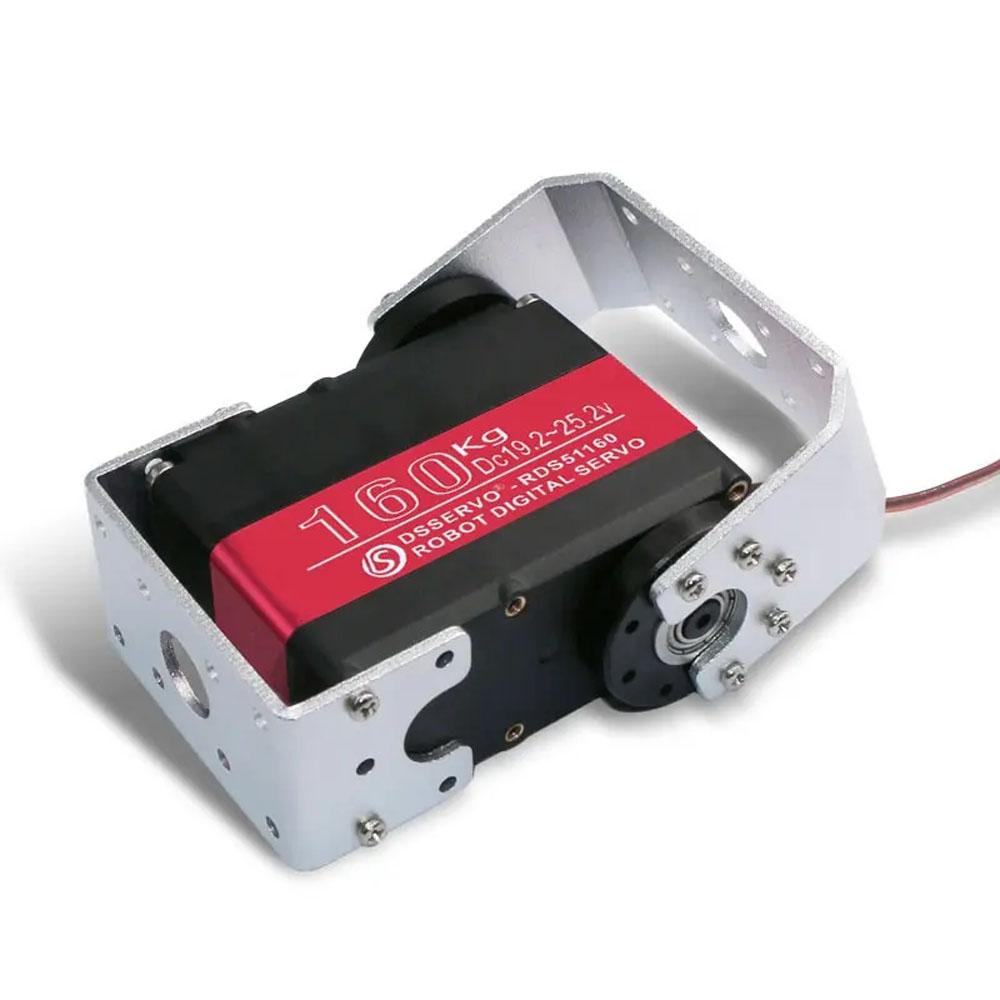

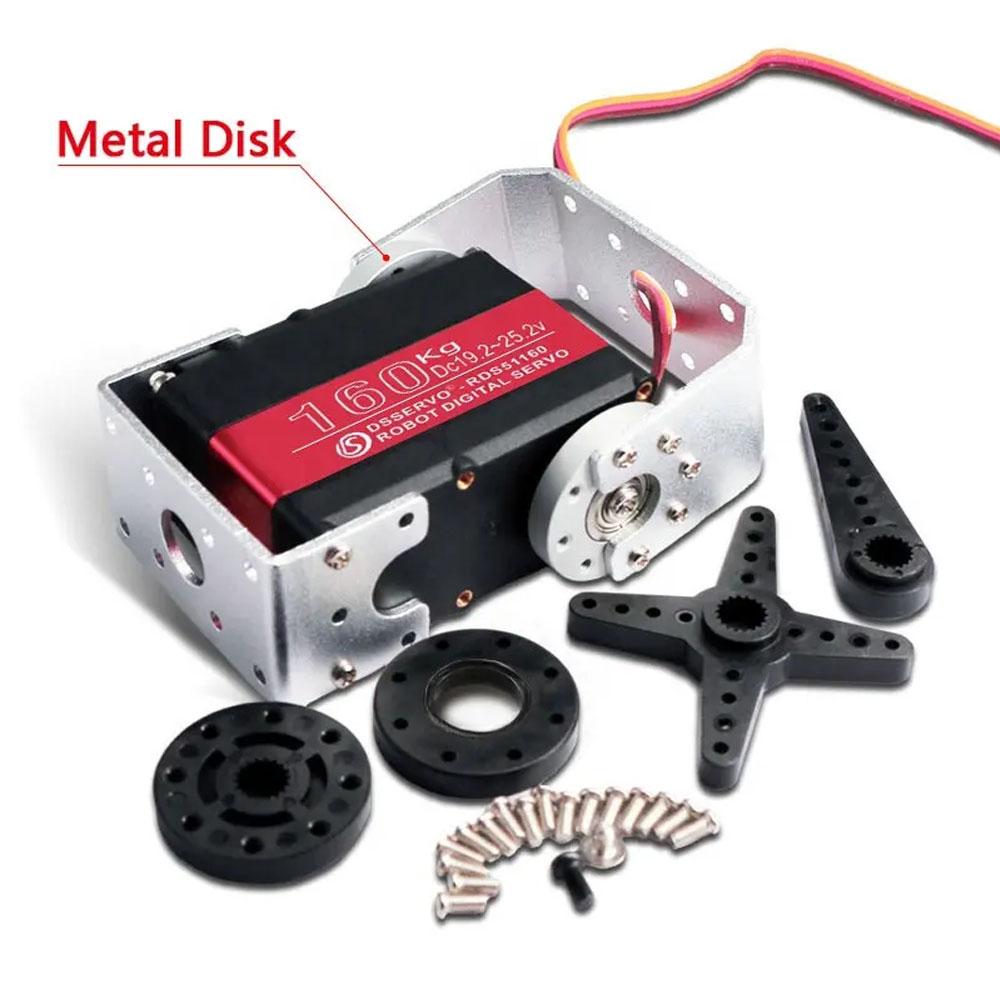

RDS51160 24V 160KG 270° Metal Gear Digital Servo Motor

Ultra-High-Torque 24V Digital Servo with Wide 270° Range

The RDS51160 is a heavy-duty 24V digital servo delivering 160Kg.cm of torque across a wide 270-degree operating range. Built with a full metal gear train and powered by 24V for sustained high-torque output, it's engineered for large-scale robotic arms, industrial automation, professional pan-tilt systems, heavy RC platforms, and animatronics where both extreme force and wide positional range are required simultaneously.

The 270° operating angle gives it a significant positional advantage over standard 180° servos — enabling greater reach and flexibility in robotic joint and actuator designs without sacrificing any of the 160Kg.cm torque output.

• Model: RDS51160
• Voltage: 24V DC
• Torque: 160 Kg.cm
• Operating Angle: 270°
• Gear Type: Full Metal Gear
• Control Type: Digital
• Ultra-high torque with wide 270° positional range
• 24V operation for sustained power under continuous heavy load
• Heavy-duty metal gear train for industrial-level forces
• Low deadband for precise, responsive positioning
• Compatible with standard PWM servo controllers (with 24V supply)
• Suitable for robotic arms, industrial automation, heavy pan-tilt rigs, large RC platforms, and animatronics
