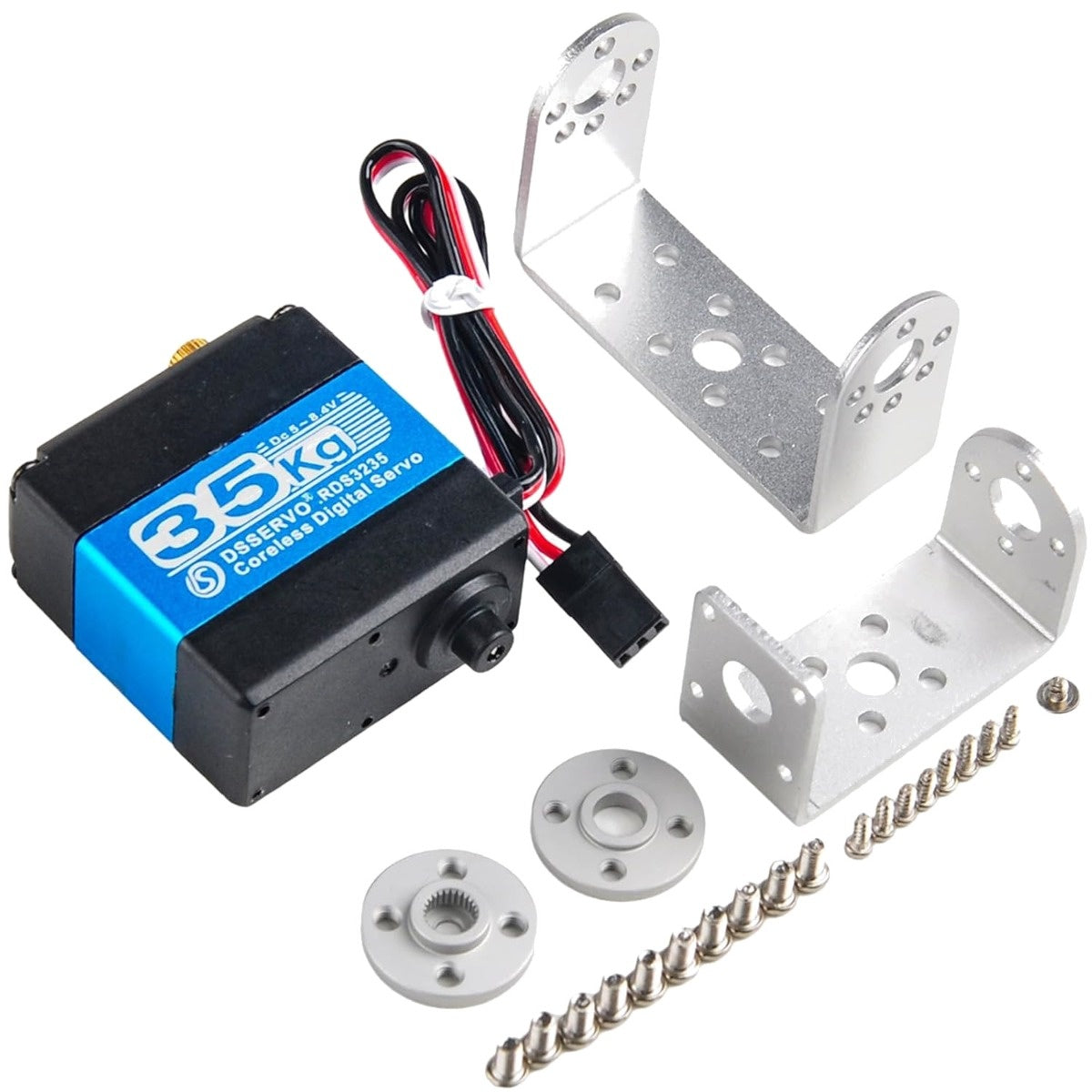

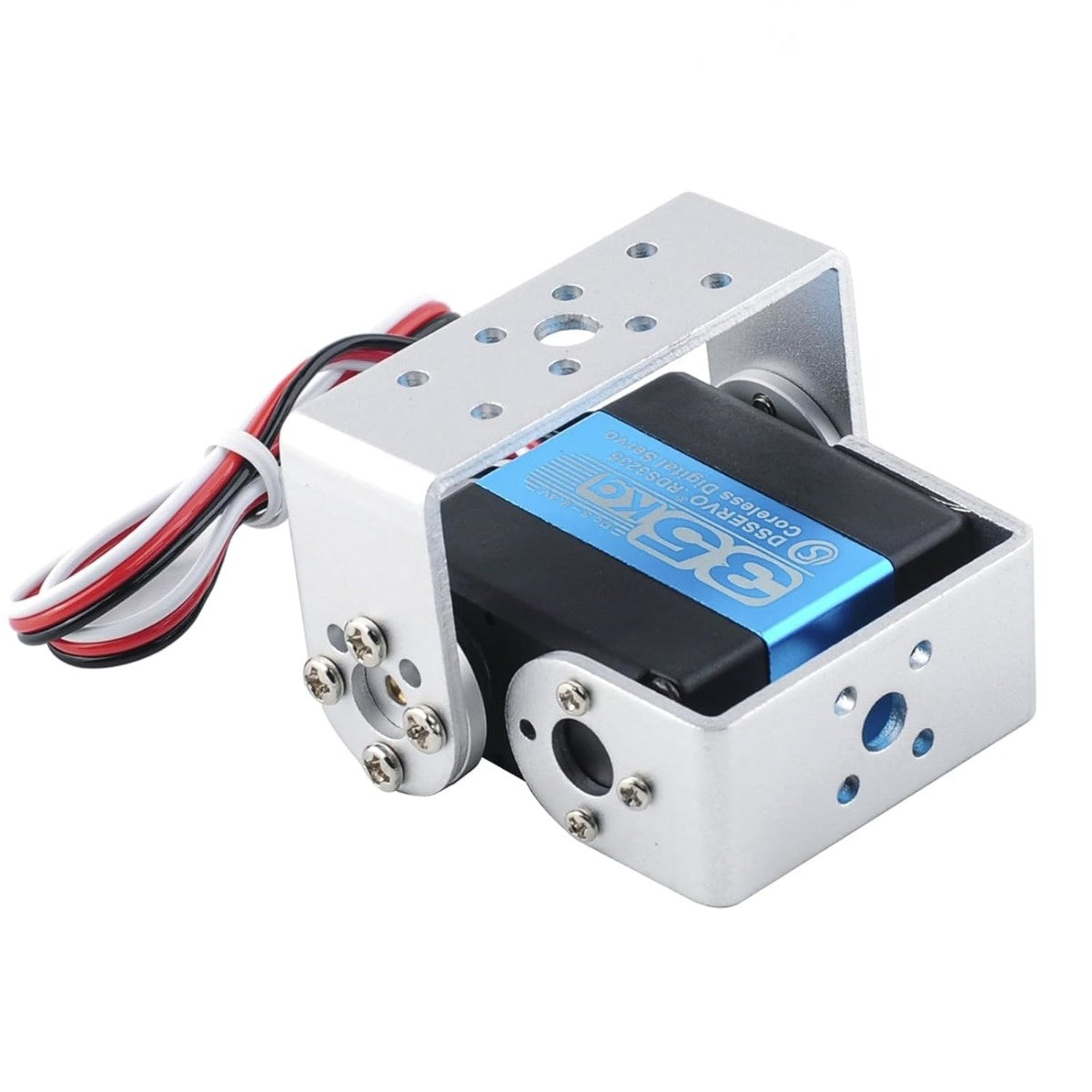

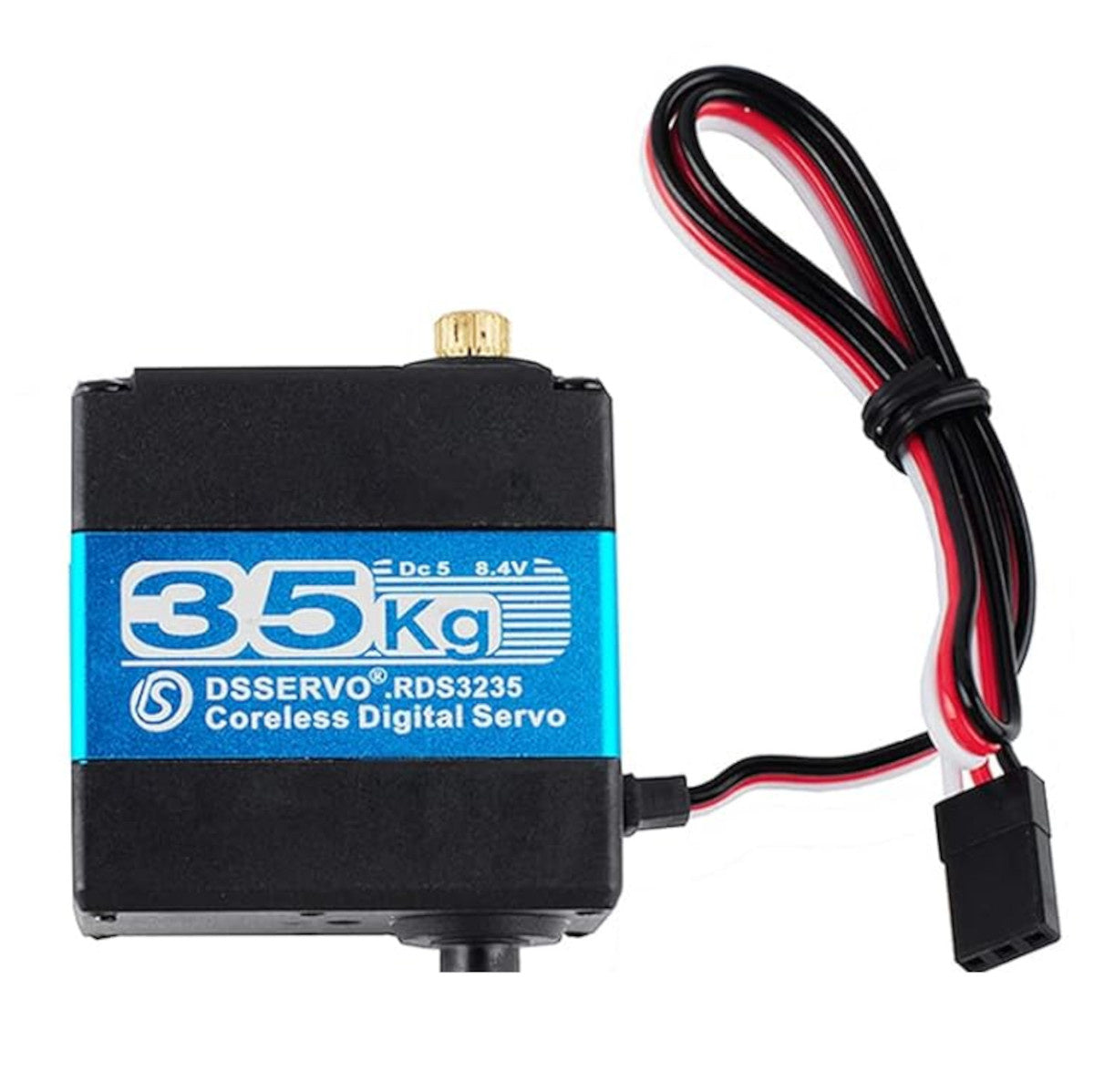

RDS3235 High Torque Digital Servo 35KG Dual Shaft 180 Degree Metal Gear

RDS3235 High Torque Digital Servo – 35KG | Dual Shaft | 180° | Metal Gear

The RDS3235 brings together the raw power of a 35kg/cm torque output with the versatility of a dual shaft design and a full 180° rotation range. Built with a full metal gear train and digital control electronics, this servo is the ideal choice for large-scale RC aircraft, heavy robotic arms, and demanding automation systems where both power and flexible mounting are essential. Two output shafts mean more linkage options – front and rear – giving your build the freedom it deserves.

Key Specifications

• Model: RDS3235
• Type: Digital Servo
• Torque: 35 kg/cm (at 6.8V)
• Rotation Angle: 180°
• Shaft: Dual shaft (front and rear output)
• Gear Material: Full metal gears
• Control Signal: PWM digital signal
• Operating Voltage: 4.8V – 6.8V
• Connector: Standard JR/Futaba compatible

Key Features

• 35kg/cm torque – ideal for large-scale RC aircraft and heavy robotic applications
• Dual shaft output for versatile front and rear linkage configurations
• Full metal gear train for exceptional durability under high and sustained loads
• Digital control for fast response, precise positioning, and strong holding torque
• 180° travel range for standard RC and robotics linkage setups

Applications

• Large-scale RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and heavy crawlers
• Robotic arms and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
