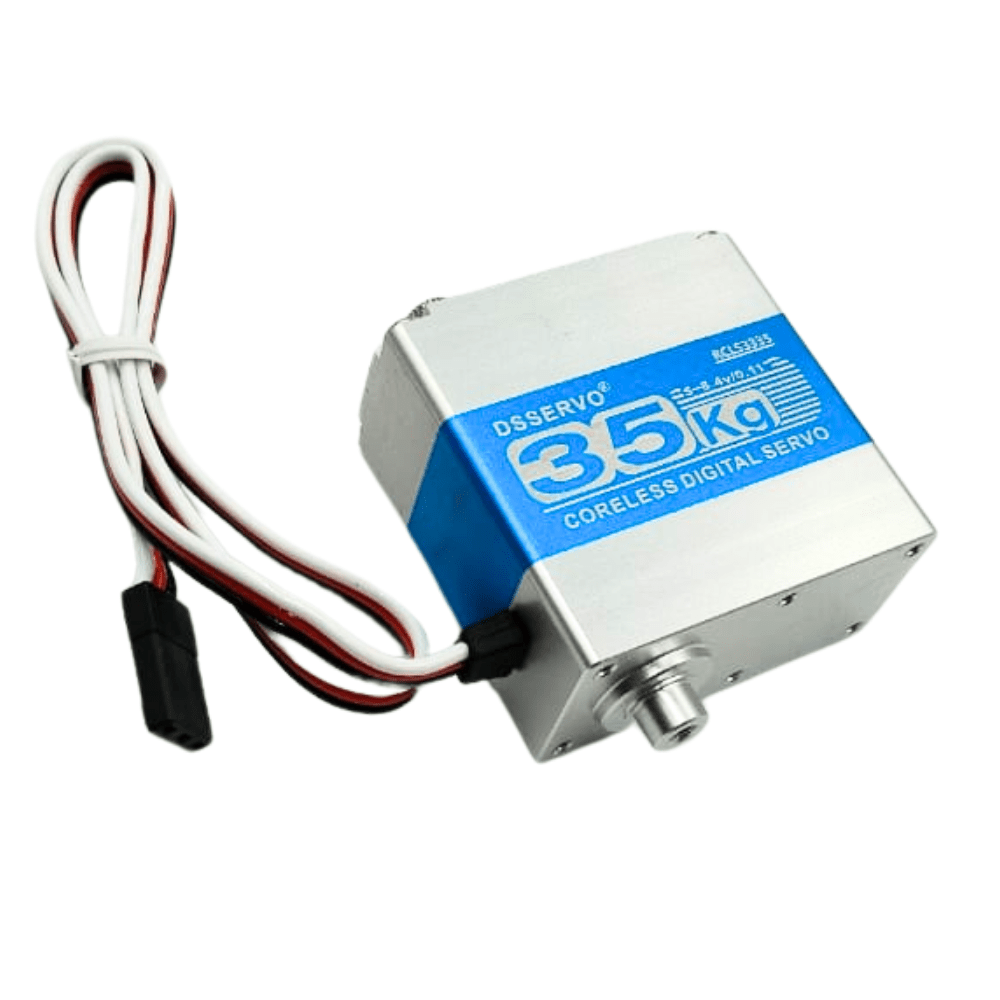

RCLS3335 Coreless Digital Servo Motor 35KG Dual Shaft 270 Degree Full Metal Gear HV

RCLS3335 Coreless Digital Servo – 35KG | Dual Shaft | 270° | Full Metal Gear | HV

The RCLS3335 is a high-performance coreless digital servo that combines a solid 35kg/cm torque output with the speed and efficiency advantages of a coreless motor, a versatile dual shaft design, and a wide 270° rotation range. High-voltage compatible and built with a full metal gear train, it delivers faster acceleration, smoother operation, and greater efficiency under load compared to conventional cored motor servos. The dual shaft gives you front and rear output options – maximum flexibility for complex linkage setups on large-scale RC aircraft, robotic systems, and automation platforms.

Key Specifications

• Model: RCLS3335
• Type: Coreless Digital Servo (High Voltage)
• Torque: 35 kg/cm (at 8.4V)
• Rotation Angle: 270°
• Shaft: Dual shaft (front and rear output)
• Gear Material: Full metal gears
• Motor Type: Coreless
• Control Signal: PWM digital signal
• Operating Voltage: 5V – 8.4V (HV compatible)
• Connector: Standard JR/Futaba compatible

Key Features

• Coreless motor – faster acceleration, smoother operation, and higher efficiency vs cored motors
• 35kg/cm torque at 8.4V – powerful performance for large-scale RC and robotics
• Dual shaft output for versatile front and rear linkage configurations
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• High-voltage (HV) compatible – connect directly to 2S LiPo without voltage regulation loss
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for precise positioning, minimal deadband, and strong holding torque

Applications

• Large-scale RC aircraft (main control surfaces, retract systems)
• Heavy-lift drones and UAV platforms
• Robotic arms and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
