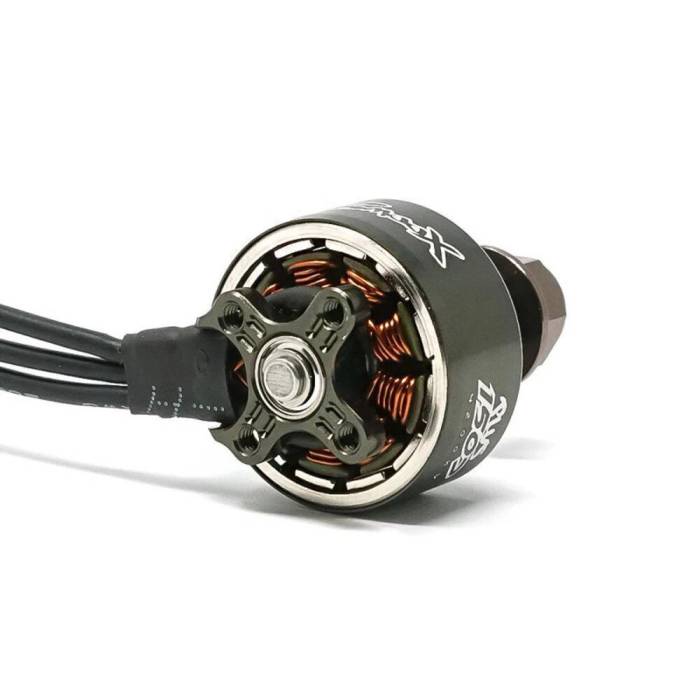

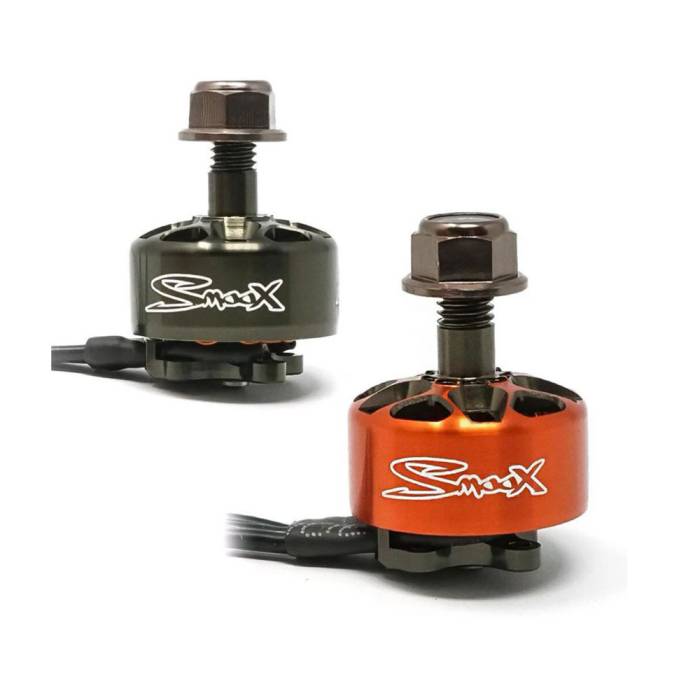

RCinPower SmooX 1507 Plus 3800KV FPV Motor

RCinPower SmooX 1507 Plus 3800KV FPV Motor

The RCinPower SmooX 1507 Plus 3800KV is a high-performance micro brushless motor from RCinPower, engineered for 3" to 4" micro FPV freestyle and racing builds. The SmooX Plus series is tuned for ultra-smooth power delivery and reduced vibration — making it ideal for cinematic micro FPV and freestyle flying on 3S and 4S systems.

Key Features

• 1507 stator — ideal size for 3"–4" micro FPV builds
• 3800KV — optimised for 3S–4S LiPo with 3"–4" propellers
• SmooX Plus series — tuned for ultra-smooth power delivery and reduced vibration
• Crisp, responsive throttle for precise micro freestyle flying
• Lightweight bell construction for crash resistance
• High-quality magnets for consistent power output
• Corrosion-resistant stainless steel shaft
• Standard 16x16mm mounting pattern

Specifications

• Series: SmooX Plus
• Stator Size: 15mm x 7mm
• KV Rating: 3800KV
• Motor Type: Brushless Outrunner
• Recommended Battery: 3S – 4S LiPo
• Recommended Prop: 3"–4"
• Brand: RCinPower
• Application: 3"–4" micro FPV freestyle and cinematic builds
• Mounting: 16x16mm standard pattern

SmooX smoothness in a micro package — the RCinPower 1507 Plus 3800KV delivers the refined performance your 3" build deserves.

• KV: 2680KV/3800KV/4200KV
• Color: Orange/Black
• Configuration: 9N12P
• Stator Diameter: 15mm
• Stator Length: 7mm
• Shaft Diameter: 2mm
• Motor Dimension(Dia*Len): 20.7×28.2mm
• Weight: 16.8g (3cm wire)

Includes

• 1 x RCINPOWER SmooX 1507 Plus 2680KV/3800KV/4200KV Motor
• 1 x Motor Nut
