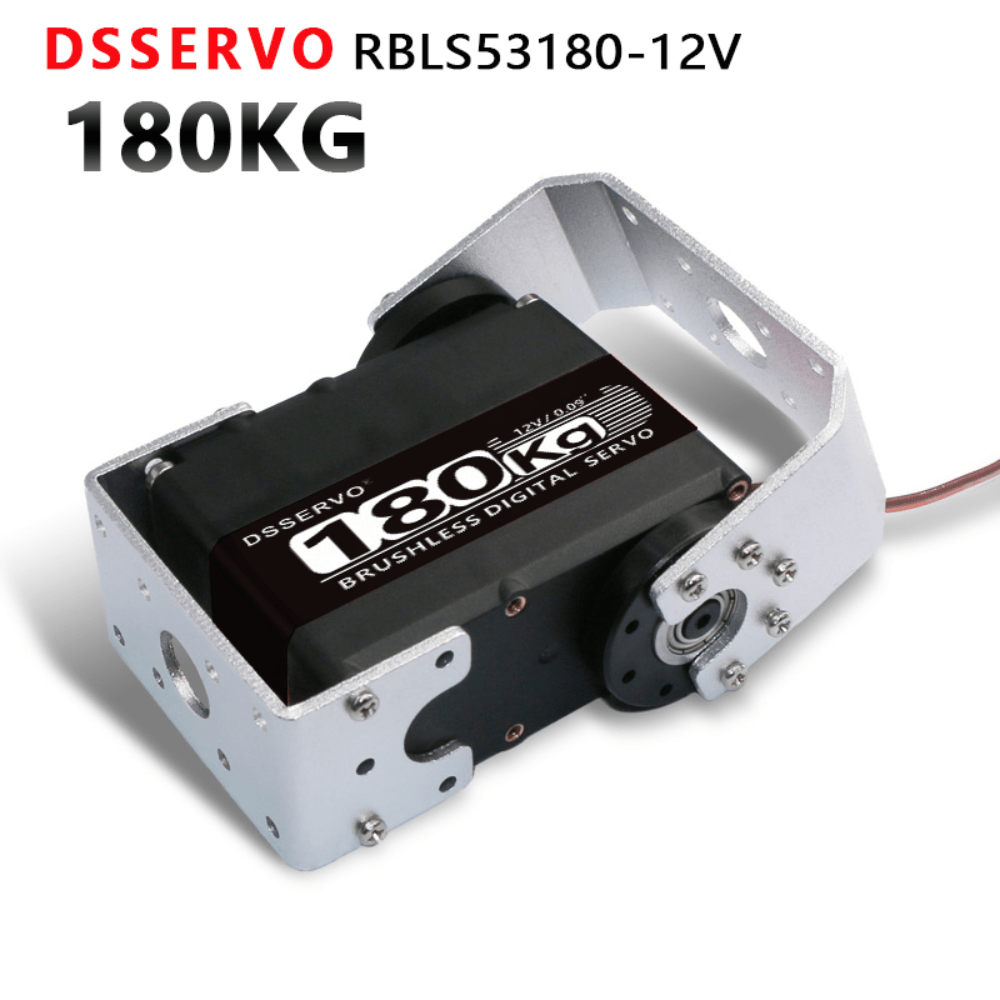

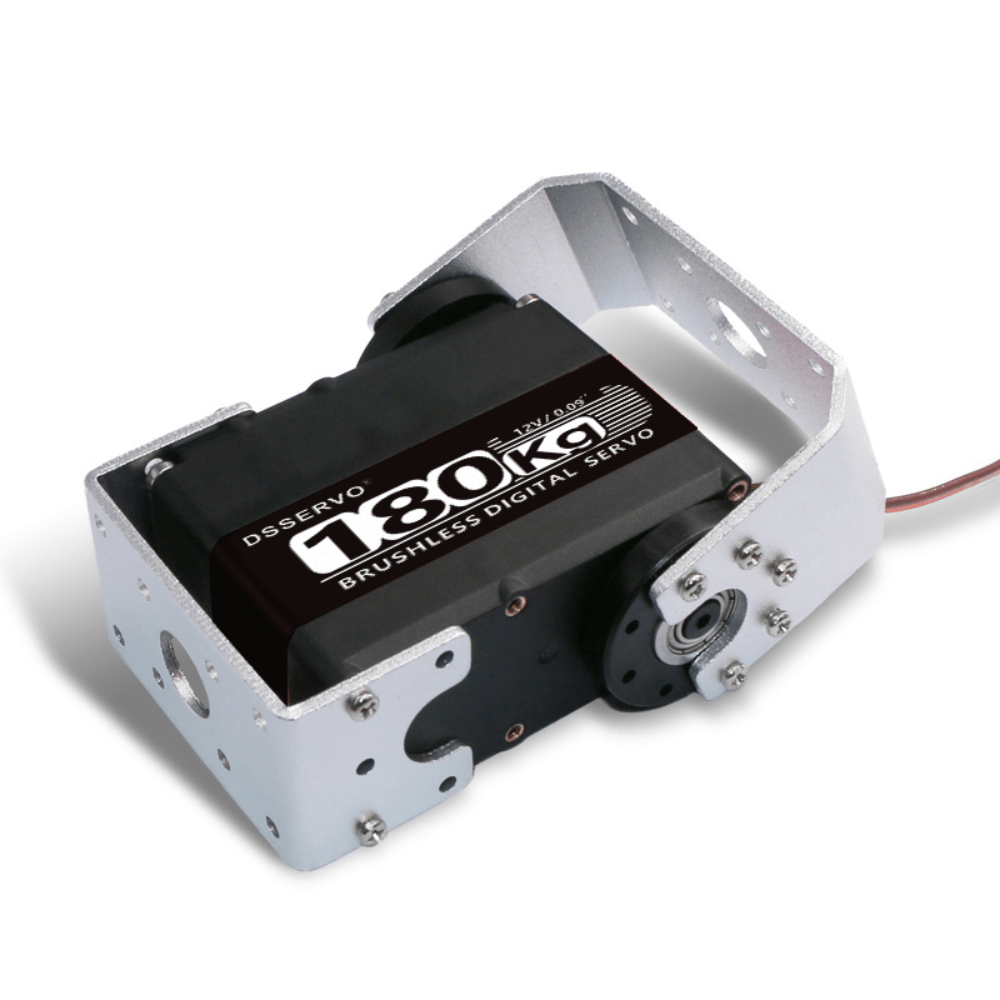

RBLS53180 Brushless Digital Servo 180KG Dual Shaft 270 Degree Full Metal Gear 12V

RBLS53180 Brushless Digital Servo – 180KG | Dual Shaft | 270° | Full Metal Gear | 12V

The RBLS53180 is an elite industrial-grade brushless digital servo delivering an extraordinary 180kg/cm torque output at 12V. Built with a dual shaft design, a wide 270° rotation range, and a bulletproof full metal gear train, this servo is engineered for the most extreme giant-scale RC aircraft, heavy industrial UAV platforms, and demanding industrial automation systems. The brushless motor core ensures maximum efficiency, lightning-fast response, and an exceptionally long service life – making the RBLS53180 the go-to choice for builders who demand the absolute pinnacle of servo performance.

Key Specifications

• Model: RBLS53180
• Type: Brushless Digital Servo (High Voltage)
• Torque: 180 kg/cm (at 12V)
• Rotation Angle: 270°
• Shaft: Dual shaft (front and rear output)
• Gear Material: Full metal gears
• Motor Type: Brushless
• Control Signal: PWM digital signal
• Operating Voltage: 12V
• Connector: Standard JR/Futaba compatible

Key Features

• 180kg/cm torque at 12V – extraordinary power for the most demanding RC and industrial applications
• Brushless motor core – faster response, higher efficiency, and significantly longer lifespan vs brushed servos
• Dual shaft output for versatile front and rear linkage configurations
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• 12V operation for maximum torque output – compatible with 3S LiPo systems
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for precise positioning, minimal deadband, and strong holding torque
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Giant-scale RC aircraft (main control surfaces, retract systems, nose wheel steering)
• Heavy industrial UAV and drone platforms
• Industrial robotics and heavy automation systems
• Large-scale motion control and actuator systems
• Heavy pan-tilt and tracking systems
