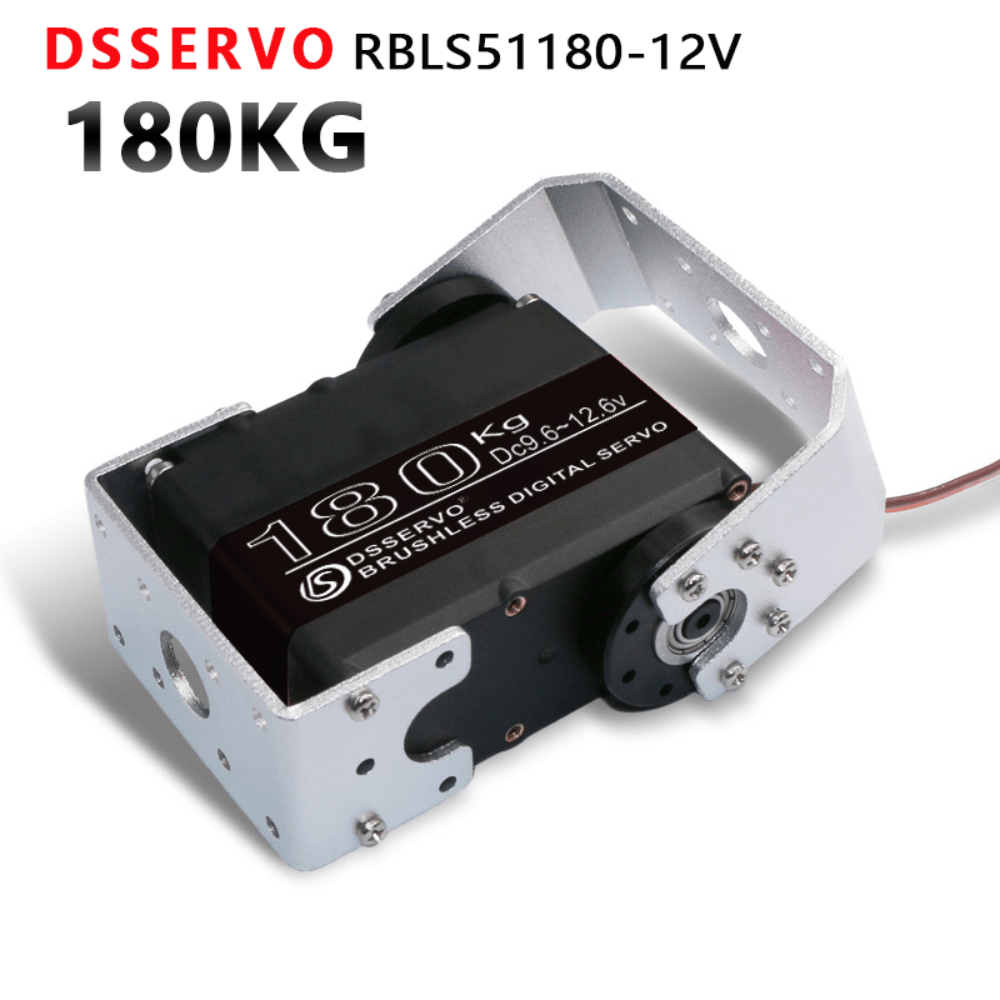

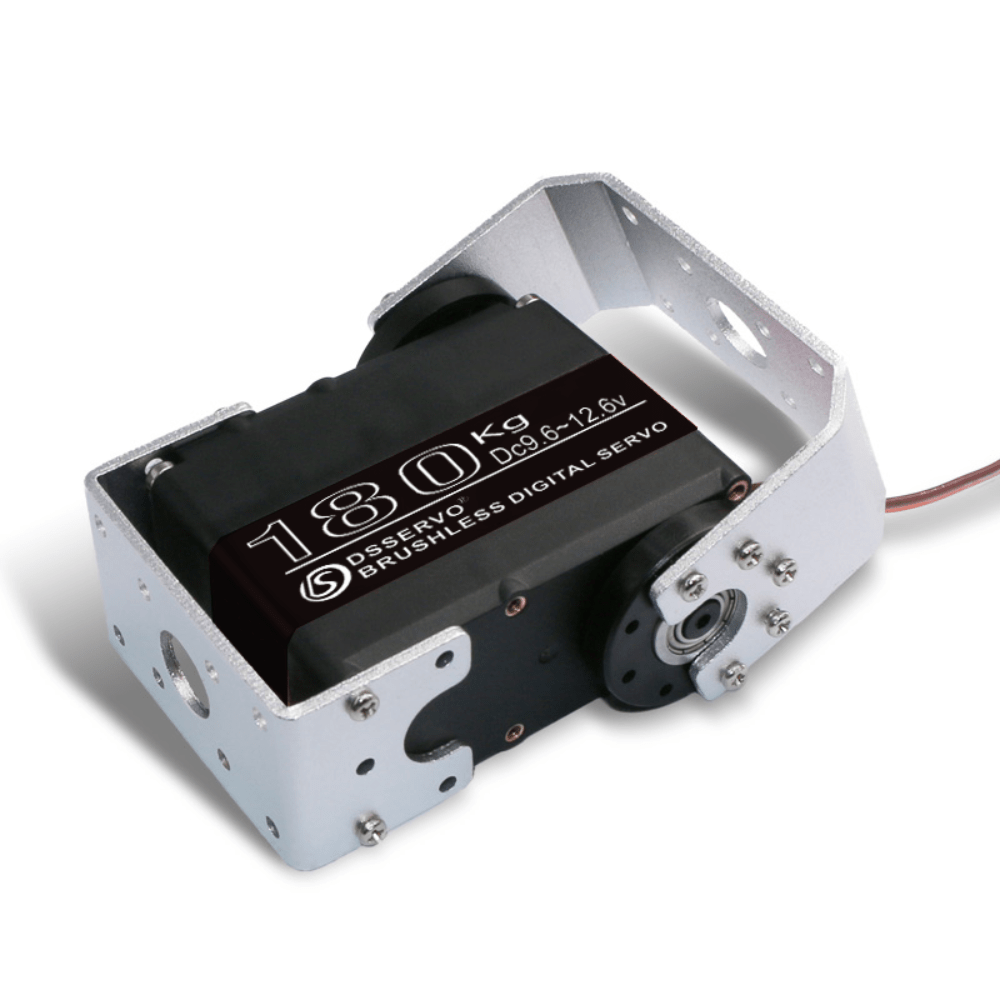

RBLS51180 Brushless Digital Servo 180KG Dual Shaft 270 Degree Full Metal Gear 12.6V

RBLS51180 Brushless Digital Servo – 180KG | Dual Shaft | 270° | Full Metal Gear | 12.6V

The RBLS51180 is the ultimate high-torque brushless digital servo – an absolute powerhouse delivering a staggering 180kg/cm torque output at 12.6V. With a dual shaft design, a wide 270° rotation range, and a bulletproof full metal gear train, this servo is purpose-built for the most extreme giant-scale RC aircraft, heavy industrial UAV platforms, and demanding industrial automation systems where nothing less than absolute performance will do. The brushless motor core ensures maximum efficiency, lightning-fast response, and an exceptionally long service life – making the RBLS51180 the definitive choice for builders who push the absolute limits of what RC and robotics can achieve.

Key Specifications

• Model: RBLS51180
• Type: Brushless Digital Servo (High Voltage)
• Torque: 180 kg/cm (at 12.6V)
• Rotation Angle: 270°
• Shaft: Dual shaft (front and rear output)
• Gear Material: Full metal gears
• Motor Type: Brushless
• Control Signal: PWM digital signal
• Operating Voltage: 12.6V (3S LiPo)
• Connector: Standard JR/Futaba compatible

Key Features

• 180kg/cm torque at 12.6V – the most powerful servo in its class for extreme RC and industrial use
• Brushless motor core – faster response, higher efficiency, and significantly longer lifespan vs brushed servos
• Dual shaft output for versatile front and rear linkage configurations
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• 12.6V (3S LiPo) operation for maximum torque output and reduced current draw
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for precise positioning, minimal deadband, and strong holding torque
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Giant-scale RC aircraft (main control surfaces, retract systems, nose wheel steering)
• Heavy industrial UAV and drone platforms
• Industrial robotics and heavy automation systems
• Large-scale motion control and actuator systems
• Heavy pan-tilt and tracking systems
