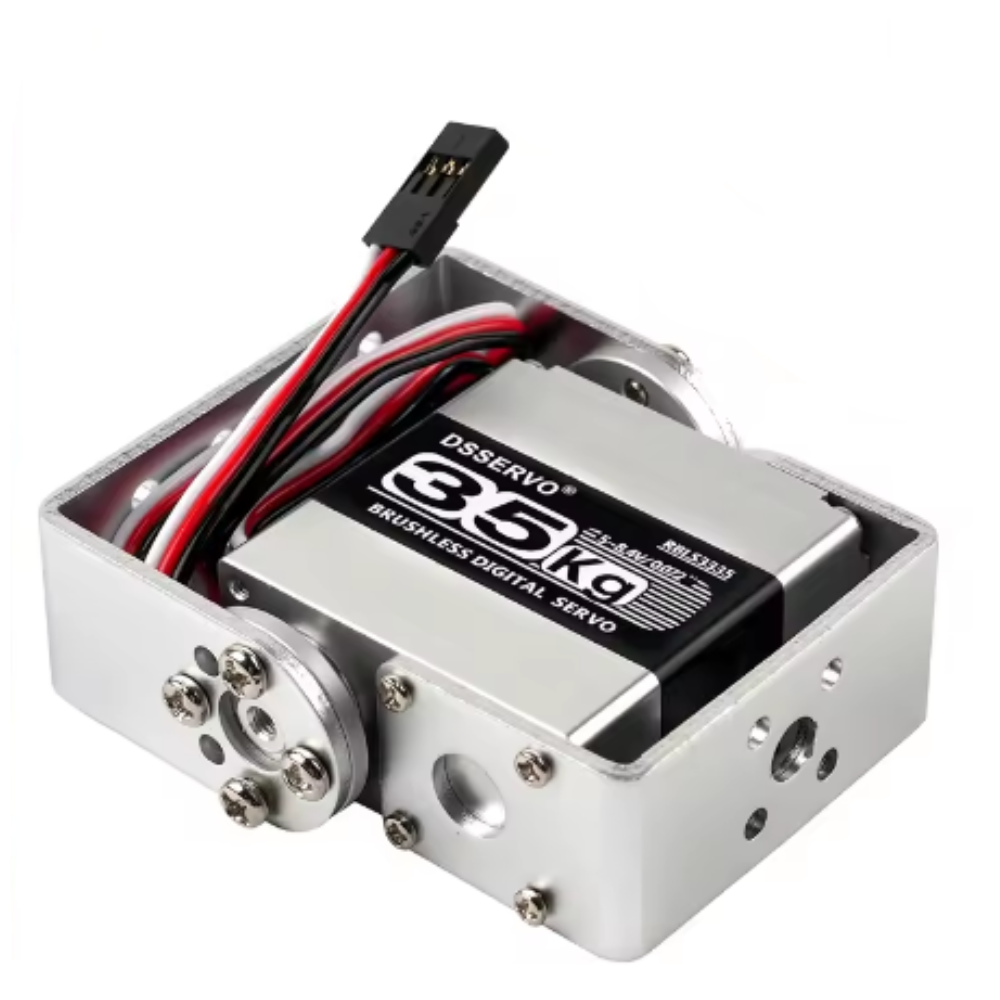

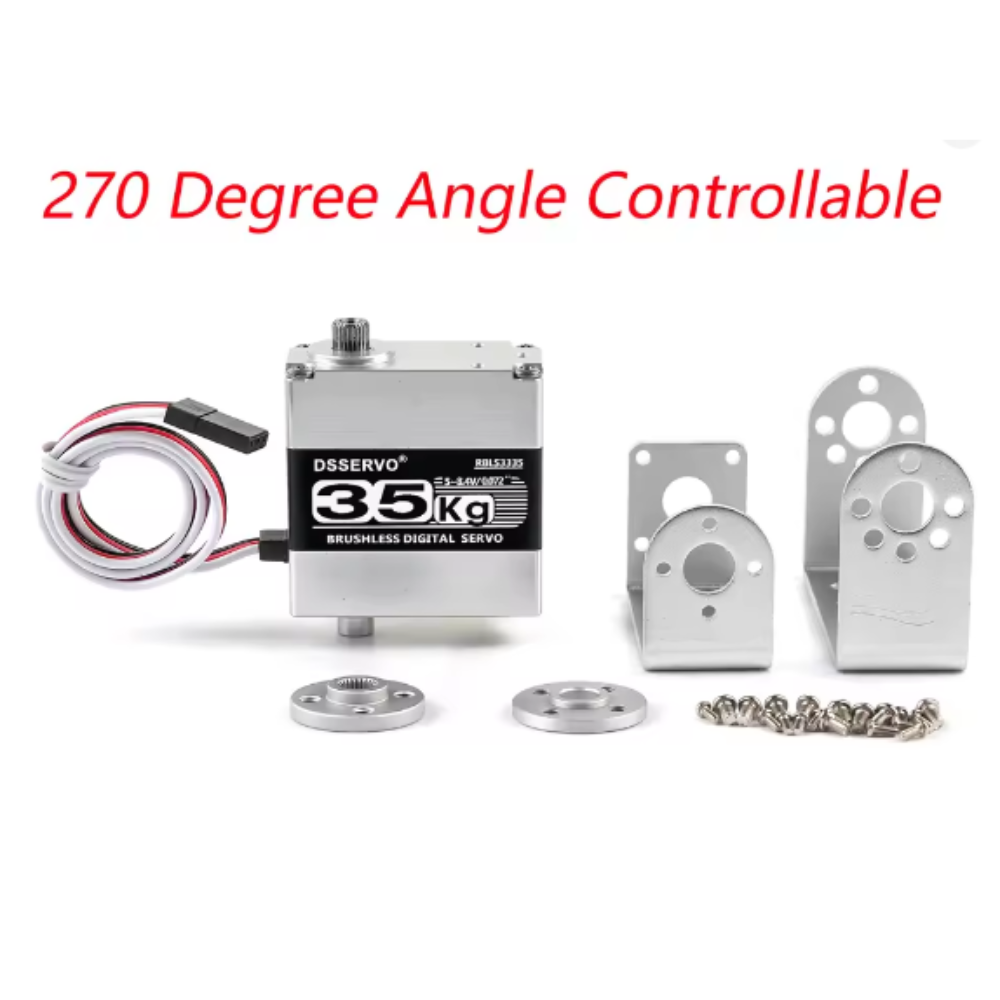

RBLS3335 Brushless Digital Servo Motor 35KG Dual Shaft 270 Degree Full Metal Gear 5~8.4V

RBLS3335 Brushless Digital Servo – 35KG | Dual Shaft | 270° | Full Metal Gear | 5–8.4V HV

The RBLS3335 is a premium brushless digital servo that combines the power of a 35kg/cm torque output with the versatility of a dual shaft design, a wide 270° rotation range, and high-voltage operation up to 8.4V. The brushless motor core delivers superior efficiency, faster response, and a significantly longer service life compared to conventional brushed servos – making the RBLS3335 the smart choice for builders who demand the best. Two output shafts mean more linkage flexibility, front and rear, giving your build the freedom to perform at its peak.

Key Specifications

• Model: RBLS3335
• Type: Brushless Digital Servo (High Voltage)
• Torque: 35 kg/cm (at 8.4V)
• Rotation Angle: 270°
• Shaft: Dual shaft (front and rear output)
• Gear Material: Full metal gears
• Motor Type: Brushless
• Control Signal: PWM digital signal
• Operating Voltage: 5V – 8.4V (HV compatible)
• Connector: Standard JR/Futaba compatible

Key Features

• Brushless motor core – faster response, higher efficiency, and longer lifespan vs brushed servos
• 35kg/cm torque at 8.4V – powerful performance for large-scale RC and robotics
• Dual shaft output for versatile front and rear linkage configurations
• 270° rotation range for wider control surface deflection and extended robotic movement
• High-voltage (HV) compatible – connect directly to 2S LiPo without voltage regulation loss
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for precise positioning, minimal deadband, and strong holding torque

Applications

• Large-scale RC aircraft (main control surfaces, retract systems)
• Heavy-lift drones and UAV platforms
• Robotic arms and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
