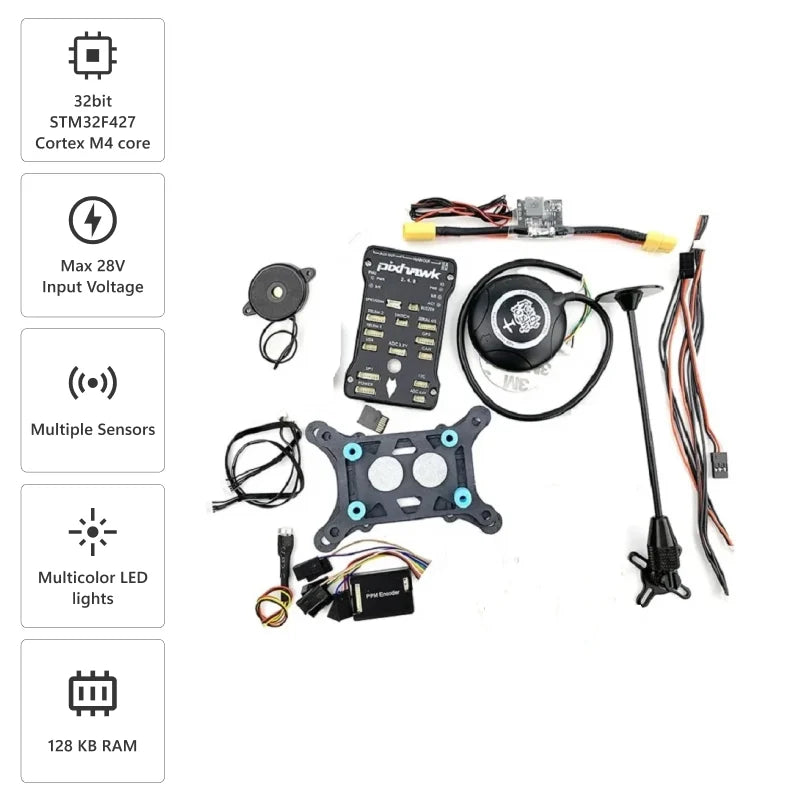

PIXHAWK 2.4.8 Combo Kit

PIXHAWK 2.4.8 Combo Kit

Rs. 15,000.00
Rs. 15,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications and Features:

Pixhawk V2.4.8 Flight board:

  1. The advanced 32-bit ARM CortexM4 high-performance processors can run Nux RTOS real-time operating system.
  2. 14 PWM / servo output.
  3. Bus interface (UART, I2C, SPI, CAN).
  4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
  5. Provide automatic and manual modes.
  6. Provide redundant power input and failover.
  7. Multicolor LED lights.

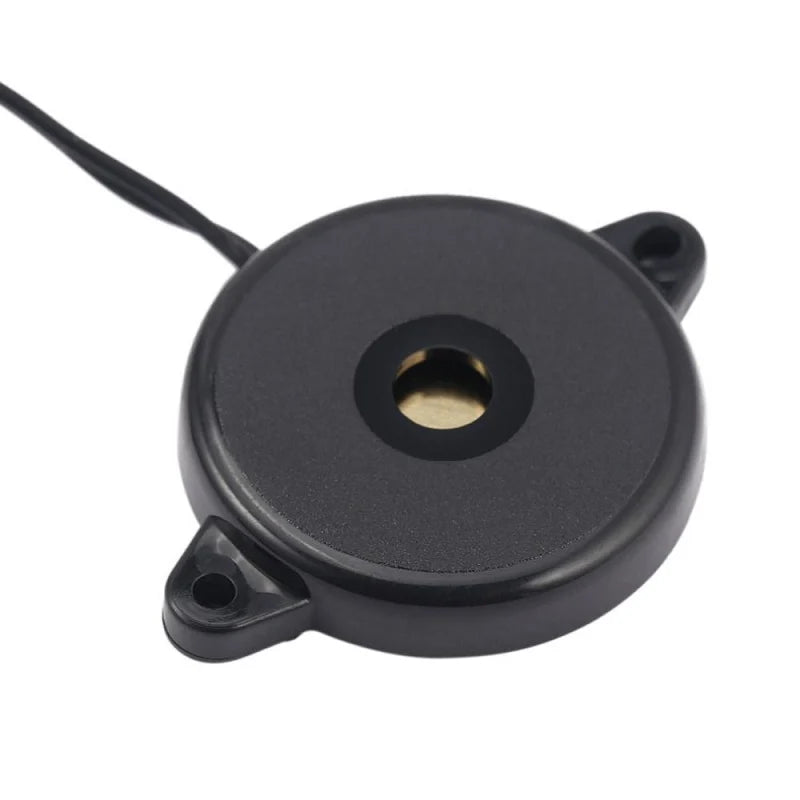

  8. Provide a multi-tone buzzer Interface.
  9. Micro SD recording flight data.

Processor:

  1. 32bit STM32F427 Cortex M4 core with FPU.
  2. 168 MHz.
  3. 128 KB RAM.
  4. 2 MB Flash.
  5. 32-bit STM32F103 failsafe co-processor.

Sensors:

  1. ST Micro L3GD20H 16 bit gyroscope.
  2. ST Micro X4HBA 303H 14-bit accelerometer/magnetometer.
  3. Invensense MPU 6000 3-axis accelerometer/gyroscope.
  4. MEAS MS5607 barometer.

Interfaces:

  1. 5x UART (serial ports), one high-power capable, 2x with HW flow control.
  2. 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
  3. Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
  4. Futaba S.BUS® compatible input and output.
  5. PPM sum signal input.
  6. RSSI (PWM or voltage) input.
  7. I2C.
  8. SPI.
  9. 3.3 and 6.6V ADC inputs.
  10. Internal micro USB port and external micro USB port extension.

PIXHAWK PPM Encoder Module:

  1. Support the input channels: 8.
  2. Output: PPM SUM × 1 / MUX × 1.

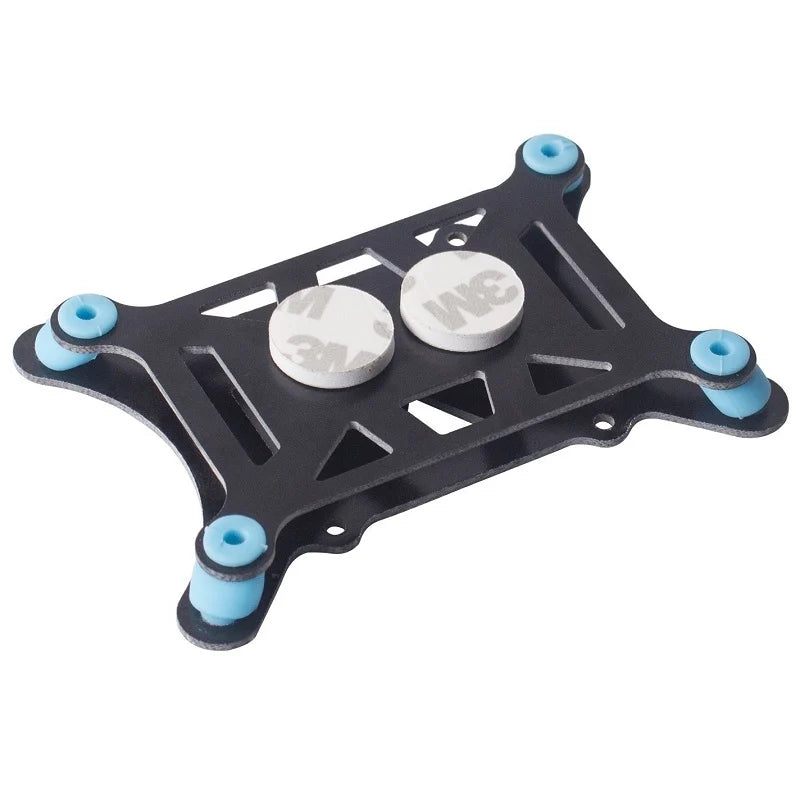

Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:

  1. Color: Black
  2. Material: Glass-fiber
  3. Suit for the different open-source flight controllers, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4

NEO-M8N GPS Module:

  1. Receiver type 72-channel Ublox M8 engine.
  2. GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
  3. SBAS L1 C/A: WAAS, EGNOS, MSAS.
  4. Galileo-ready E1B/C (NEO-M8N).
  5. Nav. update rate1 Single GNSS: up to 18 HZ.
  6. Concurrent GNSS: up to 10 Hz.
  7. Position accuracy2 2.0 m CEP.
  8. Acquisition2 Cold start: 26 s.
  9. Aided starts: 2 s.
  10. Reacquisition: 1.5 s.
  11. Sensitivity2 Tracking & Nav: –167 dBm.
  12. Cold start: –148 dBm.
  13. Hot starts: –156 dBm.
  14. Assistance AssistNow GNSS Online.
  15. Assist Now GNSS Offline (up to 35 days)3.
  16. Assist Now Autonomous (up to 6 days).
  17. OMA SUPL & 3GPP compliant
  18. Oscillator TCXO (NEO-M8N/Q).
  19. Crystal (NEO-M8M).
  20. RTC crystal Built-In.
  21. Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
  22. lowest noise figure (NEO-M8N/Q).
  23. Anti-jamming Active CW detection and removal.
  24. An extra onboard SAW bandpass filter (NEO-M8N/Q).
  25. Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
  26. Supported antennas Active and passive.
  27. Odometer Travelled distance.
  28. Data-logger For position, velocity, and time (NEO-M8N).

GPS Folding Base Antenna set:

  1. Material: CNC Aluminum alloy, carbon glass fiber rod
  2. Mounting rod diameter: 4mm
  3. length of rod: 14 cm.
  4. GPS plate diameter: 40 mm.
  5. Base plate diameter: 35 mm
  6. Mounting hole spacing: 16-35mm
  7. Weight: 20g
  8. Colour: Anodised black
  9. Note: Adhesive Pad is not included.

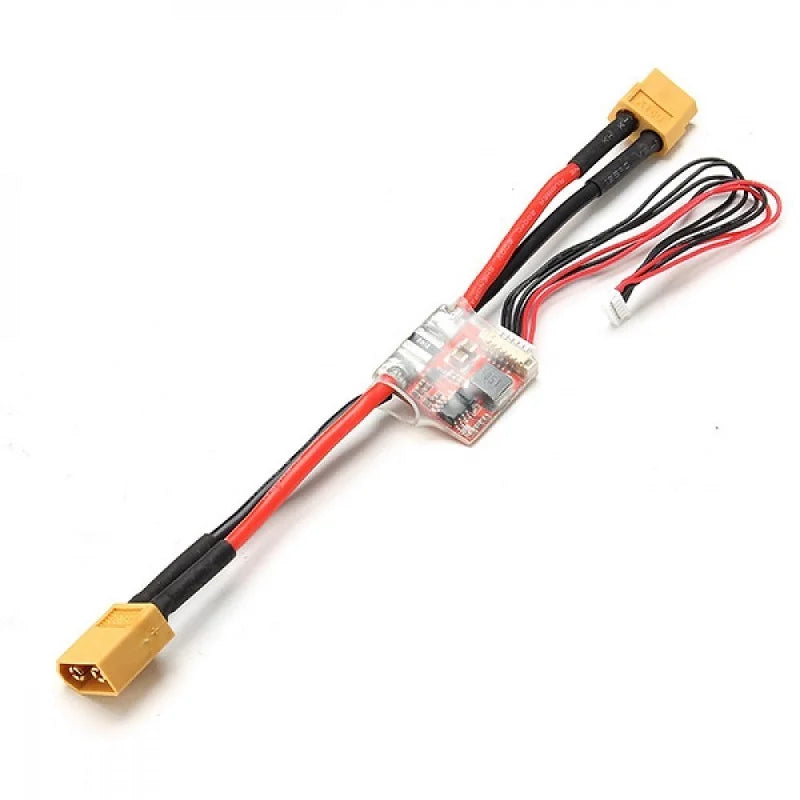

APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0:

  1. Max input voltage: 28V
  2. Max current sensing: 90A
  3. Voltage and current measurement configured for 5V ADC
  4. Switching regulator outputs 5.3V and 3A max
  5. 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
  6. Support 6S battery.

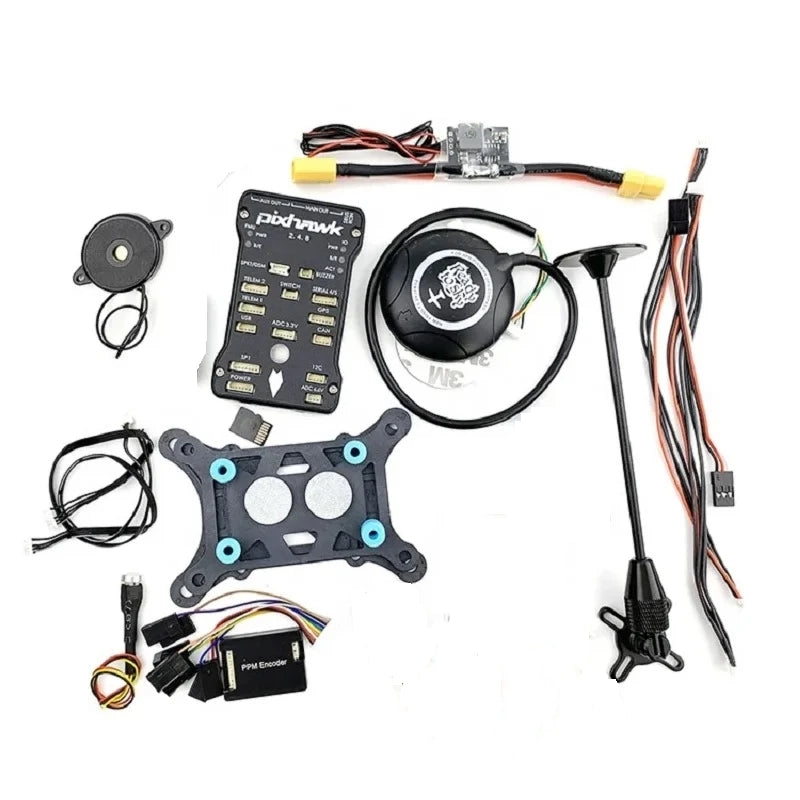

Package Includes:

1 x Pixhawk V2.4.8 Flight board with Original Shell.

1 x 4GB TF card(IO firmware has written).

3 x Connecting Cables.

1 x Pixhawk PPM Encoder Module.

1x JR plug 10P input end of the cable 100mm.

1 x JR plug 4P output end of the cable 100mm.

1 x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set.

1x NEO-M8N GPS Module with translucent Shell.

2 x cables (APM/PIX).

1 x GPS Folding Base Antenna set.

1 x APM 2.5.2/2.6/2.8 Pixhawk Power Module.

1 x I2C Splitter with Cable

1 x OSD OLED Display
