Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module

Pixhawk 2.4.8 Basic Flight Controller kit with GPS Module

Rs. 33,000.00
Rs. 33,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

 Features:

Pixhawk V2.4.8 Flight board:

  1. The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system.
  2. 14 PWM / servo output.
  3. Bus interface (UART, I2C, SPI, CAN).
  4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe.
  5. Provide automatic and manual modes.
  6. Provide redundant power input and failover.
  7. Multicolor LED lights.
  8. Provide multi-tone buzzer Interface.
  9. Micro SD recording flight data.

Processor:

  1. 32bit STM32F427 Cortex M4 core with FPU.
  2. 168 MHz.
  3. 128 KB RAM.
  4. 2 MB Flash.
  5. 32-bit STM32F103 failsafe co-processor.

Sensors:

  1. ST Micro L3GD20H 16 bit gyroscope.
  2. ST Micro X4HBA 303H 14 bit accelerometer/magnetometer.
  3. Invensense MPU 6000 3-axis accelerometer/gyroscope.
  4. MEAS MS5607 barometer.

Interfaces:

  1. 5x UART (serial ports), one high-power capable, 2x with HW flow control.
  2. 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
  3. Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
  4. Futaba S.BUS® compatible input and output.
  5. PPM sum signal input.
  6. RSSI (PWM or voltage) input.
  7. I2C.
  8. SPI.
  9. 3.3 and 6.6V ADC inputs.
  10. Internal micro USB port and external micro USB port extension.

Glass Fiber Flight Controller Anti-vibration/Shock absorber Set:

  1. Color: Black
  2. Material: Glass fiber
  3. Suit for different open source flight controller, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4
Packaging Details:
  1. Package Weight: 24 gm.
  2. Upper Frame size:  90 x 60 x 2 mm(LxWxH).
  3. Lower Frame Size: 100 x 70 x 2 mm(LxWxH).
  4. Shock absorber Height: 10 x 12 mm.(DxH).

NEO-M8N GPS Module:

  1. Receiver type 72-channel Ublox M8 engine.
  2. GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
  3. SBAS L1 C/A: WAAS, EGNOS, MSAS.
  4. Galileo-ready E1B/C (NEO-M8N).
  5. Nav. update rate1 Single GNSS: up to 18 HZ.
  6. Concurrent GNSS: up to 10 Hz.
  7. Position accuracy2 2.0 m CEP.
  8. Acquisition2 Cold start: 26 s.
  9. Aided starts: 2 s.
  10. Reacquisition: 1.5 s.
  11. Sensitivity2 Tracking & Nav: –167 dBm.
  12. Cold start: –148 dBm.
  13. Hot starts: –156 dBm.
  14. Assistance AssistNow GNSS Online.
  15. Assist Now GNSS Offline (up to 35 days)3.
  16. Assist Now Autonomous (up to 6 days).
  17. OMA SUPL & 3GPP compliant
  18. Oscillator TCXO (NEO-M8N/Q).
  19. Crystal (NEO-M8M).
  20. RTC crystal Built-In.
  21. Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
  22. lowest noise figure (NEO-M8N/Q).
  23. Anti-jamming Active CW detection and removal.
  24. Extra onboard SAW bandpass filter (NEO-M8N/Q).
  25. Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
  26. Supported antennas Active and passive.
  27. Odometer Travelled distance.
  28. Data-logger For position, velocity, and time (NEO-M8N).

GPS Folding Base Antenna set:

  1. Material: CNC Aluminum alloy, carbon glass fiber rod
  2. Mounting rod diameter: 4mm
  3. length of rod: 14 cm.
  4. GPS plate diameter: 40 mm.
  5. Base plate diameter: 35 mm
  6. Mounting hole spacing: 16-35mm
  7. Weight: 20g
  8. Colour: Anodised black
  9. Note: Adhesive Pad is not included.

APM 2.5.2/2.6/2.8 Pixhawk Power Module V1.0:

  1. Max input voltage: 28V
  2. Max current sensing: 90A
  3. Voltage and current measurement configured for 5V ADC
  4. Switching regulator outputs 5.3V and 3A max
  5. 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
  6. Support 6S battery.

433MHZ Radio Telemetry:

  1. Very small size
  2. Lightweight (under 4 grams without antenna)
  3. Available in 433Mhz
  4. Receiver sensitivity to -121 dBm
  5. Transmit power up to 20dBm (100mW)
  6. Transparent serial link
  7. Air data rates up to 250kbps
  8. The range of approx 1 mile
  9. MAVLink protocol framing and status reporting
  10. Frequency hopping spread spectrum (FHSS)
  11. Adaptive time division multiplexing (TDM)
  12. Support for LBT and AFA
  13. Configurable duty cycle
  14. Built-in error correcting code (can correct up to 25% data bit errors)
  15. A demonstrated range of several kilometers with a small Omni antenna
  16. Can be used with a bi-directional amplifier for even more range
  17. Open source firmware
  18. AT commands for radio configuration
  19. RT commands for remote radio configuration
  20. Adaptive flow control when used with APM
  21. Based on the HopeRF HM-TRP radio module, featuring a SiLabs Si1000 RF microcontroller.

Pixhawk PPM Encoder Module:

  1. Support the input channels: 8.
  2. Output: PPM SUM × 1 / MUX × 1.
  3. Dimensions: 28 x 19 x 5 mm.
  4. Weight: 12 gm. (containing all the input and output wires).

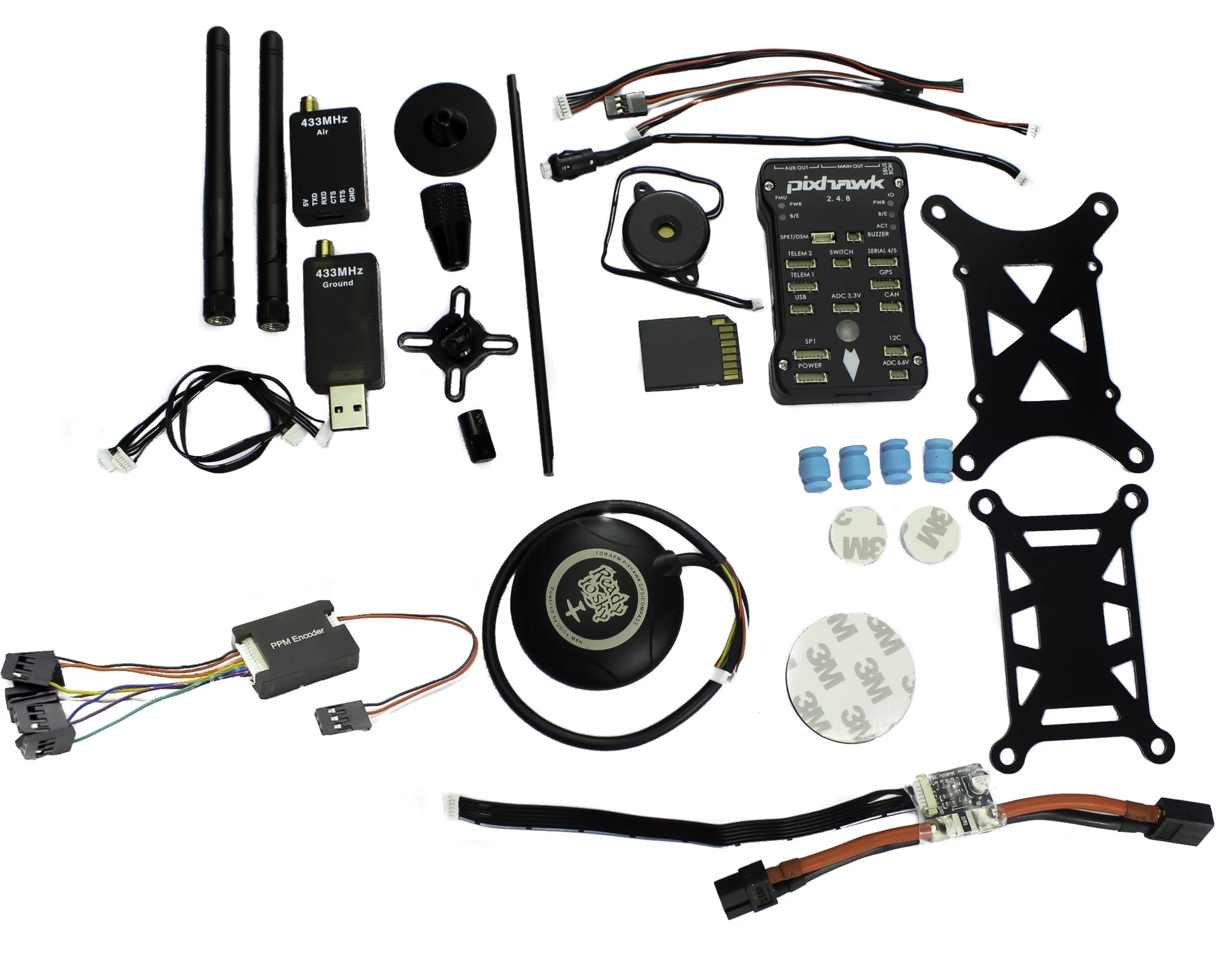

Package Includes:

1 x Pixhawk V2.4.8 Flight board with Original Shell.
1 x 16GB TF card(IO firmware has written).
3 x Connecting Cables.
1 x Buzzer Module.
1 x Pixhawk PPM Encoder Module.
1x JR plug 10P input end of the cable 100mm.
1 x JR plug 4P output end of the cable 100mm.
1 x Glass Fiber Flight Controller Anti-vibration/Shock absorber Set.
1x NEO-M8N GPS Module with translucent Shell.
2 x cables (APM/PIX).
1 x GPS Folding Base Antenna set.
1 x APM 2.5.2/2.6/2.8 Pixhawk Power Module.
2 x 3.5dbi antennas.
1 x 3DR Radio Telemetry with the case(Tx and Rx).
