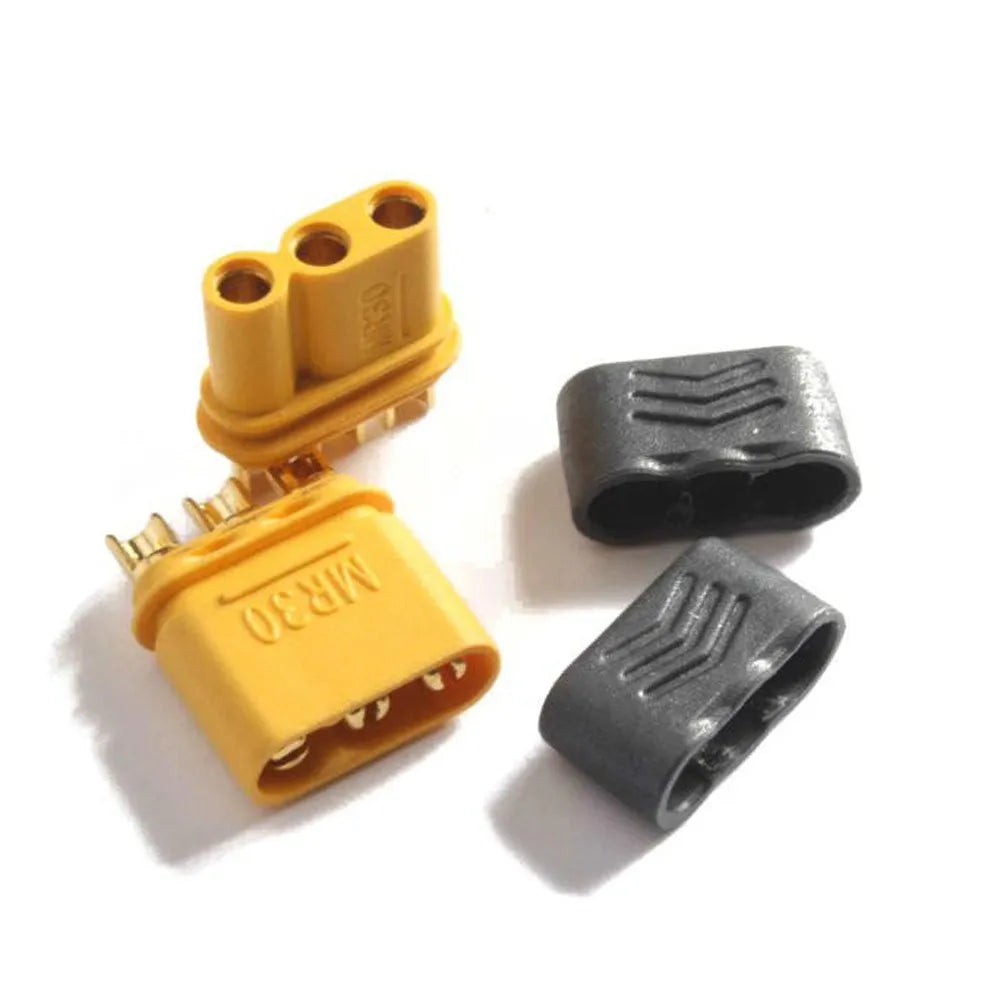

MR30 Power Connectors

Five male and five female power connectors made of genuine high-temp brass and gold plated copper. The MR30 ensures a solid high-amp connection, perfect for applications up to 30A constant.

Features

• Lightweight
• Short circuit protection

Specifications

• Brand Name: Amass
• Item Name: MR30 connector
• Body Material and Surface Plating: Brass and gold plated
• Insulation Material: PA66
• Original Internal Resistance: 0.8MΩ
• 500 Times Internal Resistance: 0.85MΩ
• Max. Continuous Current: 30A (within 30 minutes)
• Max. Instantaneous Current: 40A (within 1 minute)
• Recommended Cable Spec: 18AWG 2.8mm diameter
• Recommended Soldering Spec: 400° C/3S
• Weight: 1.2g/pcs
• Insulation Degree: UL94V-0
• Machine live: 3000 Times
• Suitable for connecting ESCs, Motors, RC Airplanes

Includes

• 1 x Amass MR30 Pair Connector

or

• 1 x Amass MR30 Male Connector

or

• 1 x Amass MR30 Female Connector
