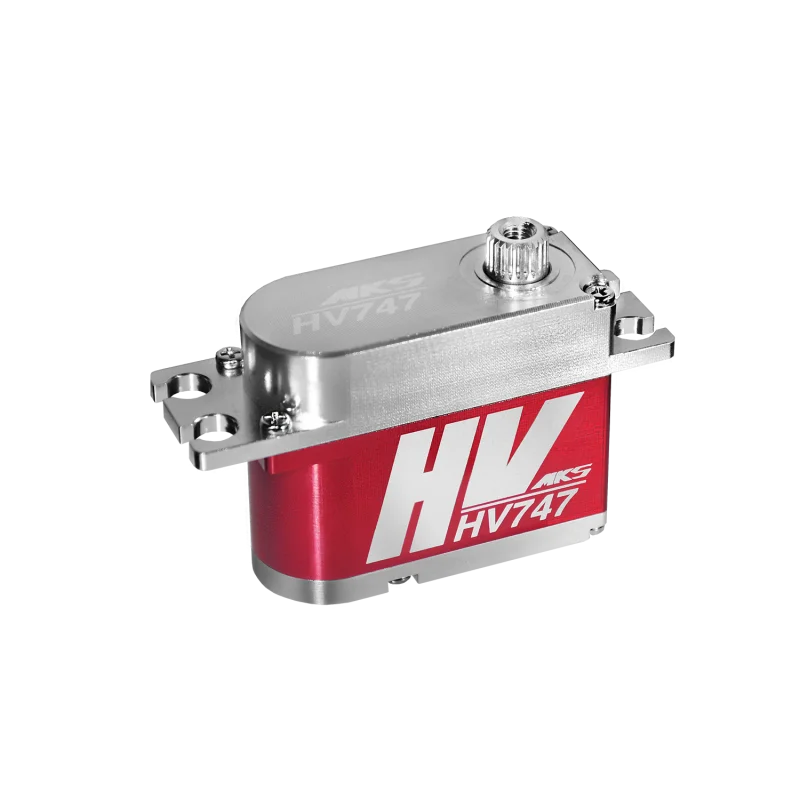

MKS HV747 Servo Motor

MKS HV747 Servo Motor

SERVO SPECIFICATION
Torque (kg-cm) 11.8 (6.0V) / 13.8 (7.4V) / 15 (8.2V)
Torque (oz-in) 163.9 (6.0V) / 191.6 (7.4V) / 208.3 (8.2V)
Speed 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Stall Current (at locked load) 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage 6.0V ~ 8.4V DC Volts
Working Frequency 1520μs / 333Hz
Dead Band 0.001 ms (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Coreless Motor
Wire Length 29.5 cm
