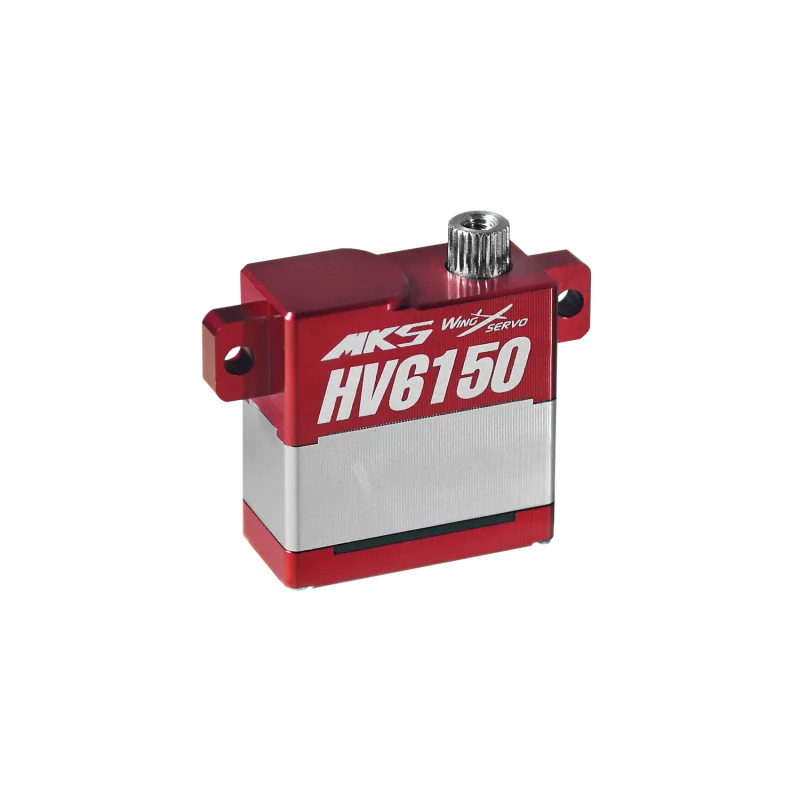

MKS HV6150 Servo Motor

MKS HV6150 Servo Motor

SERVO SPECIFICATION
Torque (kg-cm) 6.3(4.8V) / 8.2(6.0V) / 9.8(7.4V) / 10.9(8.2V)
Torque (oz-in) 87.4(4.8V) / 113.8(6.0V) / 136.1(7.4V) / 151.3(8.2V)
Speed 0.274 s (4.8V) / 0.190 s (6.0V) / 0.176 s (7.4V) / 0.159 s (8.2V)
Stall Current (at locked load) 0.8A (4.8V) / 0.96A (6.0V) / 1.2A (7.4V) / 1.35A (8.2V)
Working Voltage 4.8V ~ 8.4V DC Volt
Working Frequency 1520μs / 333Hz
Dead Band 0.001 ms (Default)
Bearing 2*Oil-retaining Bearing + 2*Jewel Bearing
Gear Metal Alloy Gear
Motor Coreless Motor
