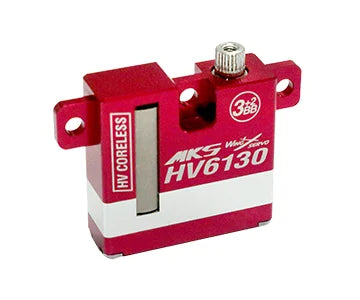

MKS HV6130 Wing Servo Motor

MKS HV6130 Wing Servo Motor

Dead Band 0.001 ms
Control System +Pulse Width Control
Working Frequence 1520μs / 333Hz
Operating Voltage 3.5~8.4 V DC Volt (2S Lipo un-regulated)
Operating Speed (6V) 0.14 sec/60° degrees at no load
Operating Speed (7.4V) 0.11 sec/60° degrees at no load
Operating Speed (8.4V) 0.10 sec/60° degrees at no load
Stall Torque (6V) 6 Kg/cm (83 oz/in)
Stall Torque (7.4V) 7.6 Kg/cm (105.5 oz/in)
Stall Torque (8.4V) 8.1 Kg/cm (112.5 oz/in)
Motor Type Coreless Motor
Potentiometer Drive Direct Drive
Bearing Type 3x Ball Bearings + 2x Jewel Bearing
Gear Type Metal Alloy gear
Dimensions 30x10x29.8 mm (1.1811X0.39X1.17 in)
Weight 23g (0.81oz)
