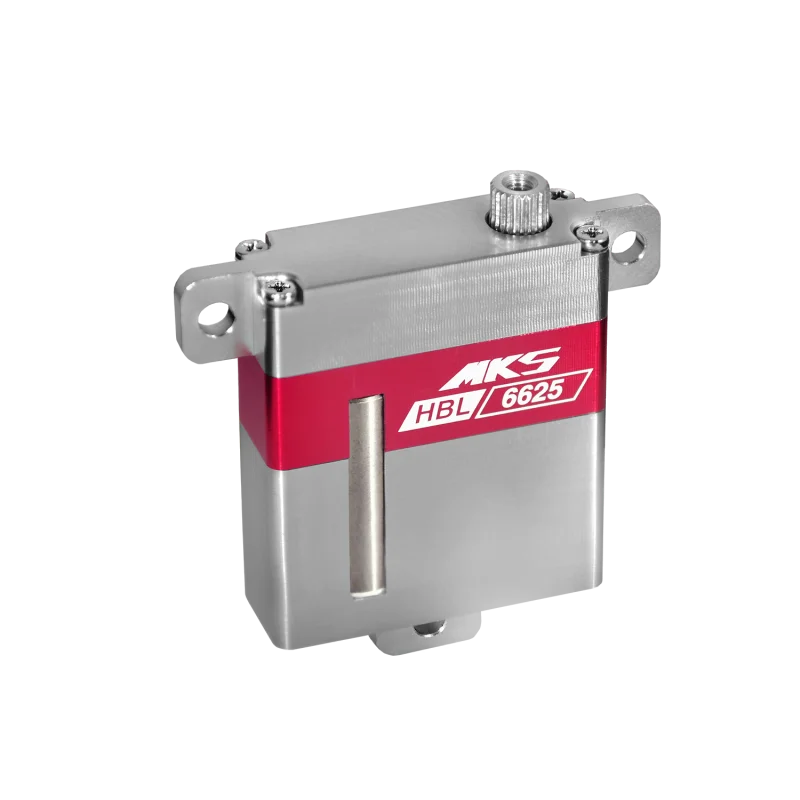

MKS HBL6625 Servo Motor

MKS HBL6625 Servo Motor

Specifications

Torque (6.0V): 8.2 kg-cm / 113.9 oz-in
Torque (7.4V): 9.6 kg-cm / 133.3 oz-in
Torque (8.2V): 10.4 kg-cm / 144.4 oz-in
Speed: 0.16 s (6.0V) / 0.127 s (7.4V) / 0.11 s (8.2V)
Weight: 27.85 g (0.98 oz)

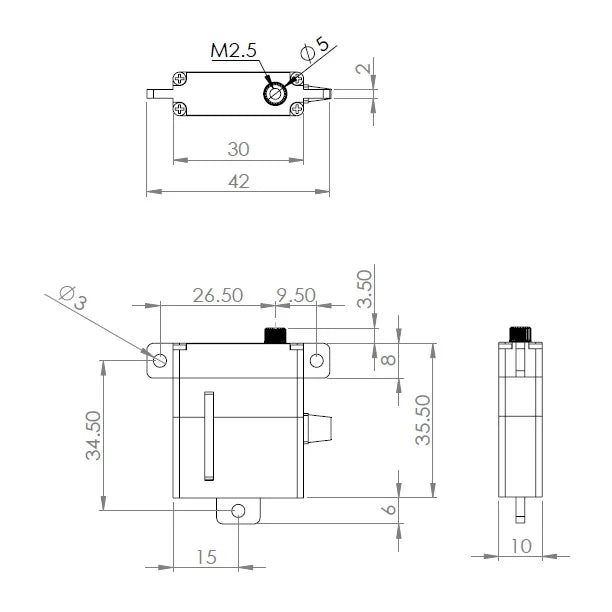

Dimension : 30 x 10 x 35.5 mm
Dead Band 0.001 ms
Spline Size 5mm
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 4.8~8.4 V DC Volts
Operating Speed (6V) 0.16 sec/60 degrees at no load
Operating Speed (7.4V) 0.127 sec/60 degrees at no load
Operating Speed (8.4V) 0.11 sec/60 degrees at no load
Stall Torque (6V) 8.2 Kg/cm (113.88 oz/in)
Stall Torque (7.4V) 9.6 Kg/cm (133.32 oz/in)
Stall Torque (8.4V) 10.4 Kg/cm (144.43 oz/in)
Motor Type Brushless Motor
Potentiometer Drive Direct Drive
Bearing Type Dual Ball Bearings
Gear Type Chrome-Titanium alloy gear
Programmable No
Connector Wire Length 15.0 cm (5.89 in)
