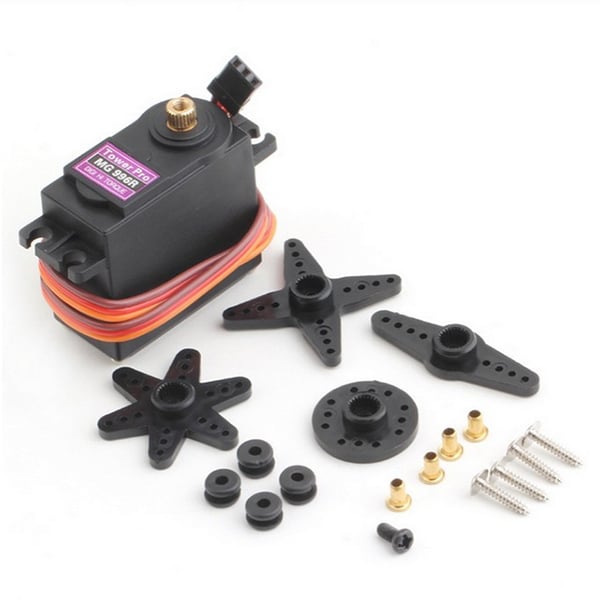

MG996R High Torque Servo Motor 10KG 180 Degree Metal Gear

MG996R High Torque Servo Motor – 10KG/cm | 180° | Metal Gear

The MG996R 10kg.cm is a high-performance variant of the iconic MG996R servo, rated at a solid 10kg/cm torque at 6V. With a full 180° rotation range and a durable full metal gear train, it delivers dependable, precise control for RC aircraft, robotic systems, and Arduino/Raspberry Pi projects. A trusted name in the hobby world – the MG996R continues to be the benchmark servo for builders who want reliable performance without compromise.

Key Specifications

• Model: MG996R
• Type: Analog Servo
• Torque: 10 kg/cm (at 6V)
• Rotation Angle: 180°
• Gear Material: Full metal gears
• Operating Voltage: 4.8V – 7.2V
• Connector: Standard JR/Futaba compatible (universal 3-pin)
• Weight: ~55g

Key Features

• 10kg/cm torque at 6V – reliable power for RC aircraft and robotic applications
• Full metal gear train for durability and resistance to stripping under load
• 180° travel range for standard RC and robotics linkage setups
• Wide voltage range (4.8V–7.2V) compatible with most RC receivers and microcontrollers
• Universal 3-pin connector – plug-and-play with RC systems, Arduino, and Raspberry Pi
• Industry-standard form factor – drop-in compatible with most servo mounts

Applications

• RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and boats (steering)
• Robotic arms and joints
• Arduino and Raspberry Pi projects
• Pan-tilt camera mounts
