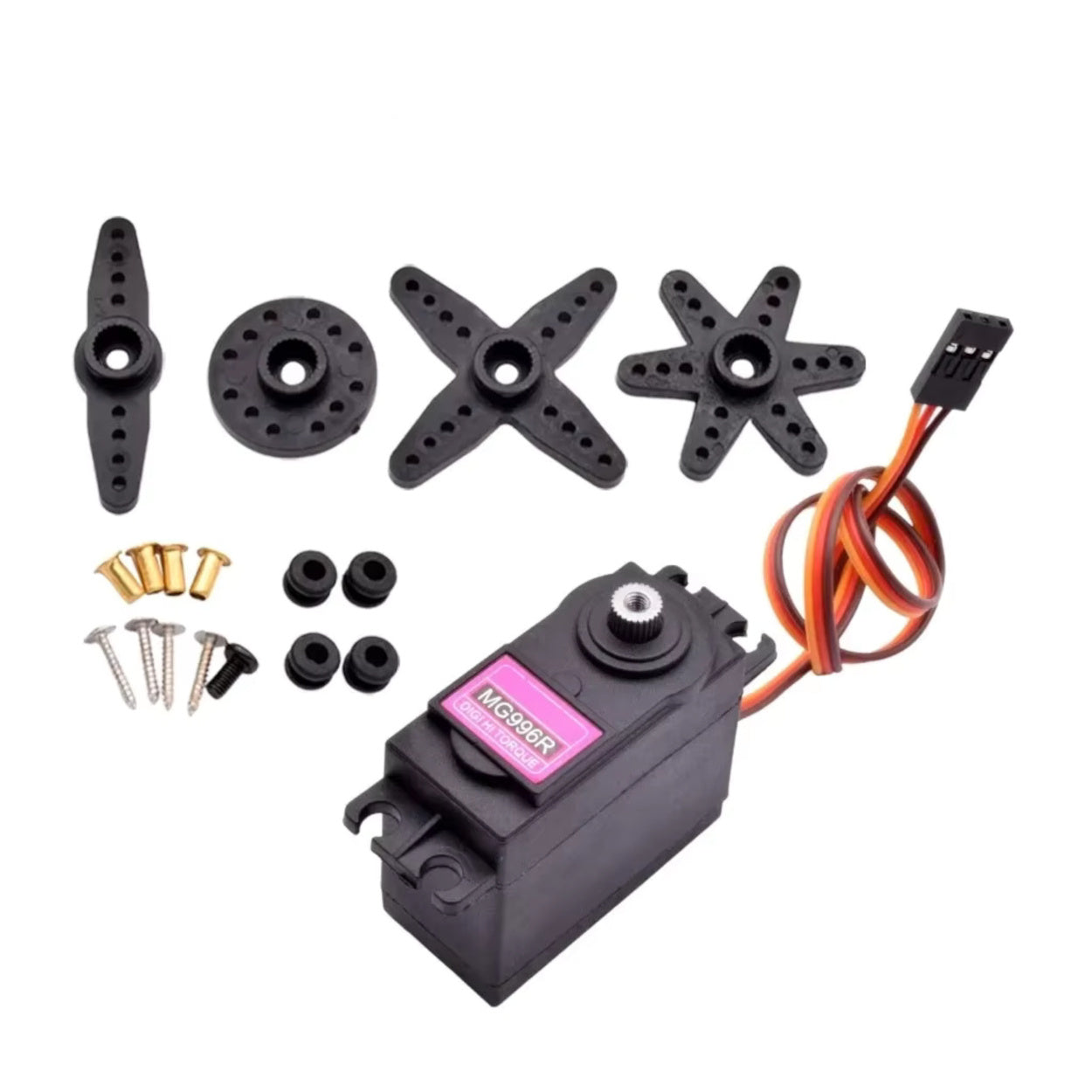

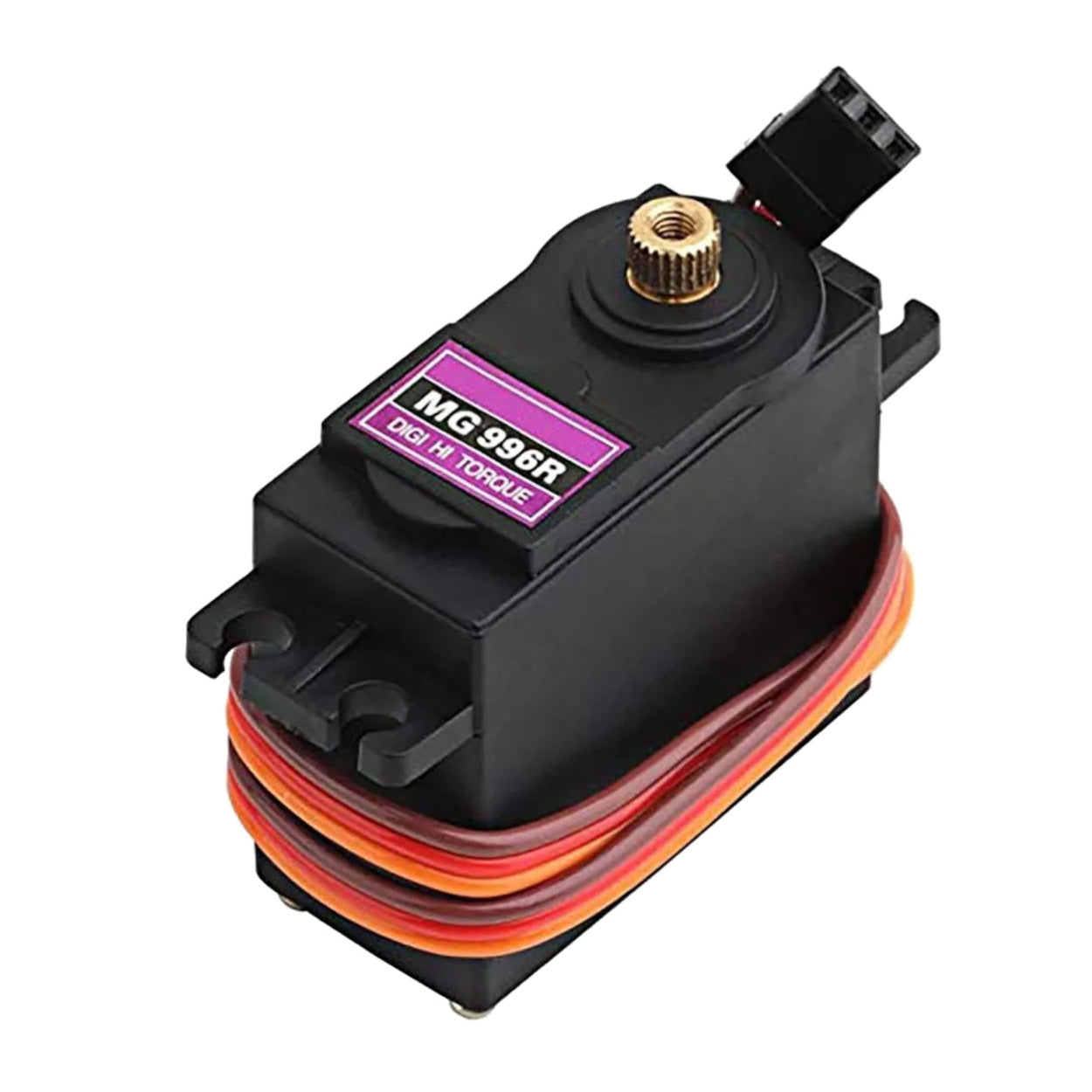

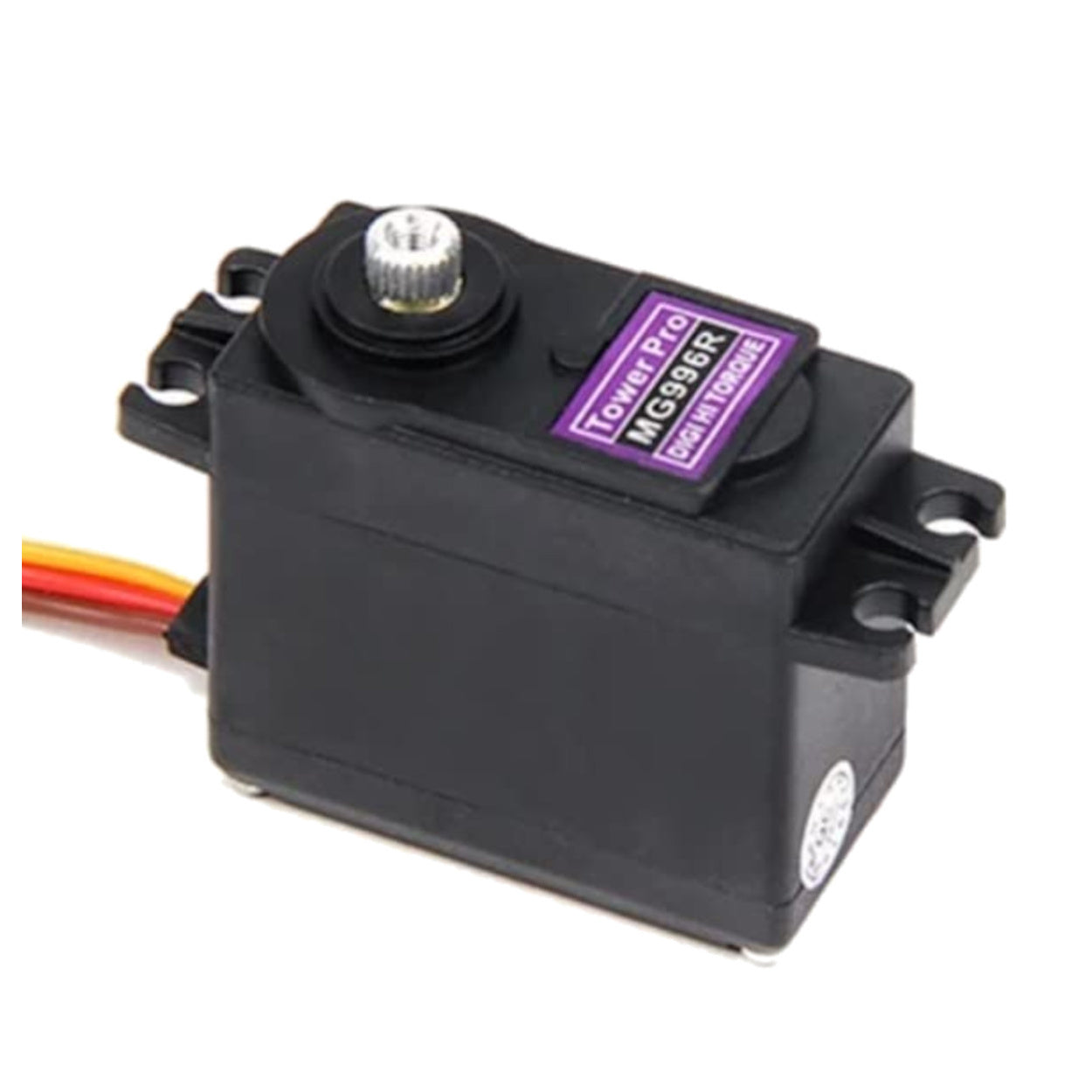

MG996R High Torque Metal Gear Servo Motor 360 Degree Continuous Rotation

MG996R High Torque Metal Gear Servo – 360° Continuous Rotation

The MG996R 360° is the continuous rotation variant of the legendary MG996R servo – modified to spin freely in both directions rather than stopping at a fixed angle. With high torque metal gears and the same trusted MG996R form factor, it’s the go-to choice for wheeled robots, conveyor mechanisms, and any project that needs a compact, controllable motor with the simplicity of a standard servo interface. No motor driver needed – just plug it into your RC receiver or microcontroller and go.

Key Specifications

• Model: MG996R (360° Continuous Rotation)
• Type: Continuous Rotation Servo
• Rotation: 360° continuous (both directions)
• Gear Material: Full metal gears
• Control Signal: Standard PWM (1000–2000μs)
• Operating Voltage: 4.8V – 7.2V
• Connector: Standard JR/Futaba compatible (universal 3-pin)
• Weight: ~55g

Key Features

• 360° continuous rotation – functions as a compact geared motor with servo-style control
• Speed and direction controlled via PWM signal – no separate motor driver required
• Full metal gear train for durability under continuous load
• High torque output for driving wheels, tracks, and mechanical linkages
• Universal 3-pin connector – compatible with RC receivers, Arduino, and Raspberry Pi
• Compact form factor – easy to integrate into tight spaces

Applications

• Wheeled and tracked robots (drive motors)
• Conveyor belts and rotating mechanisms
• Arduino and Raspberry Pi robotics projects
• RC vehicle drive systems
• Automated turntables and pan systems
