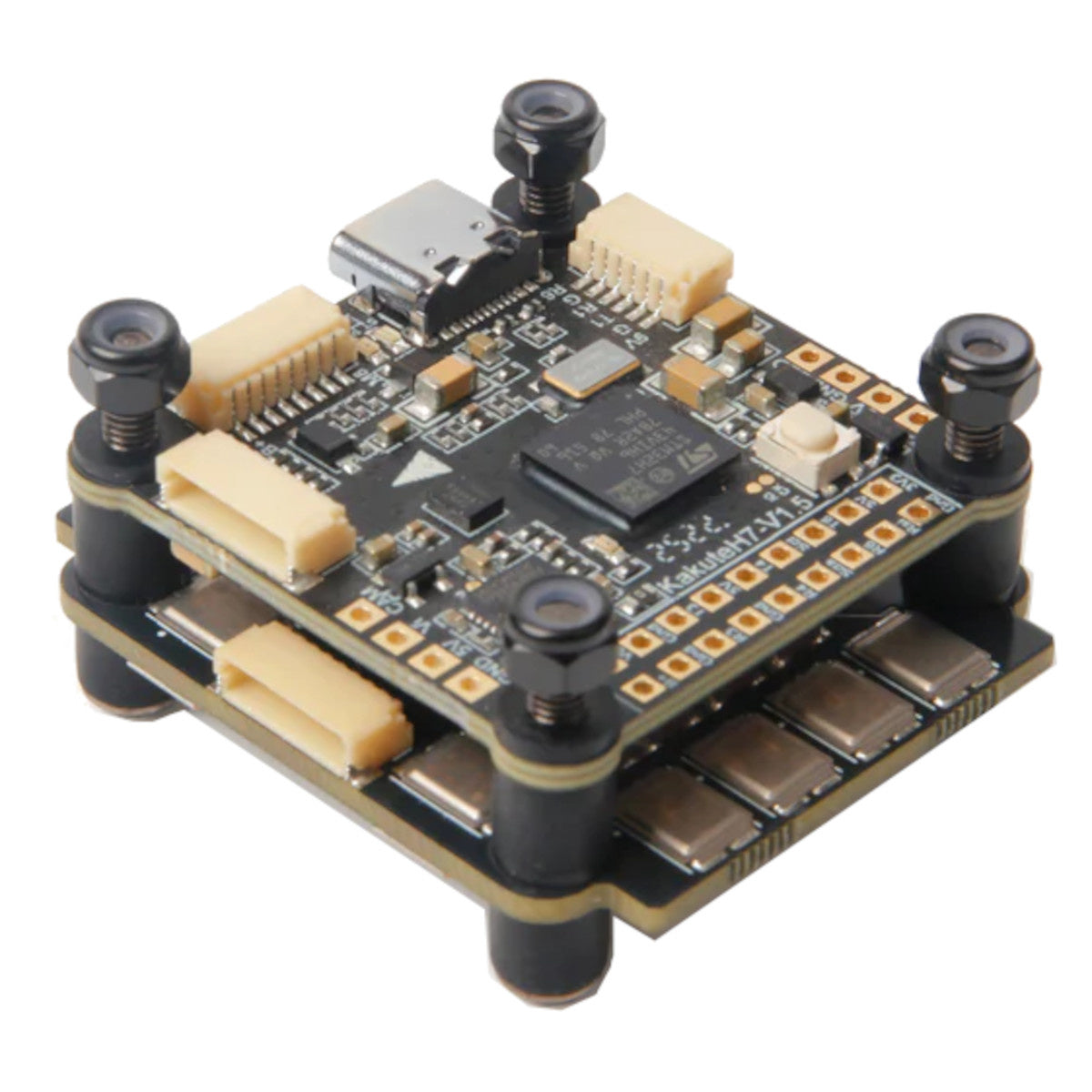

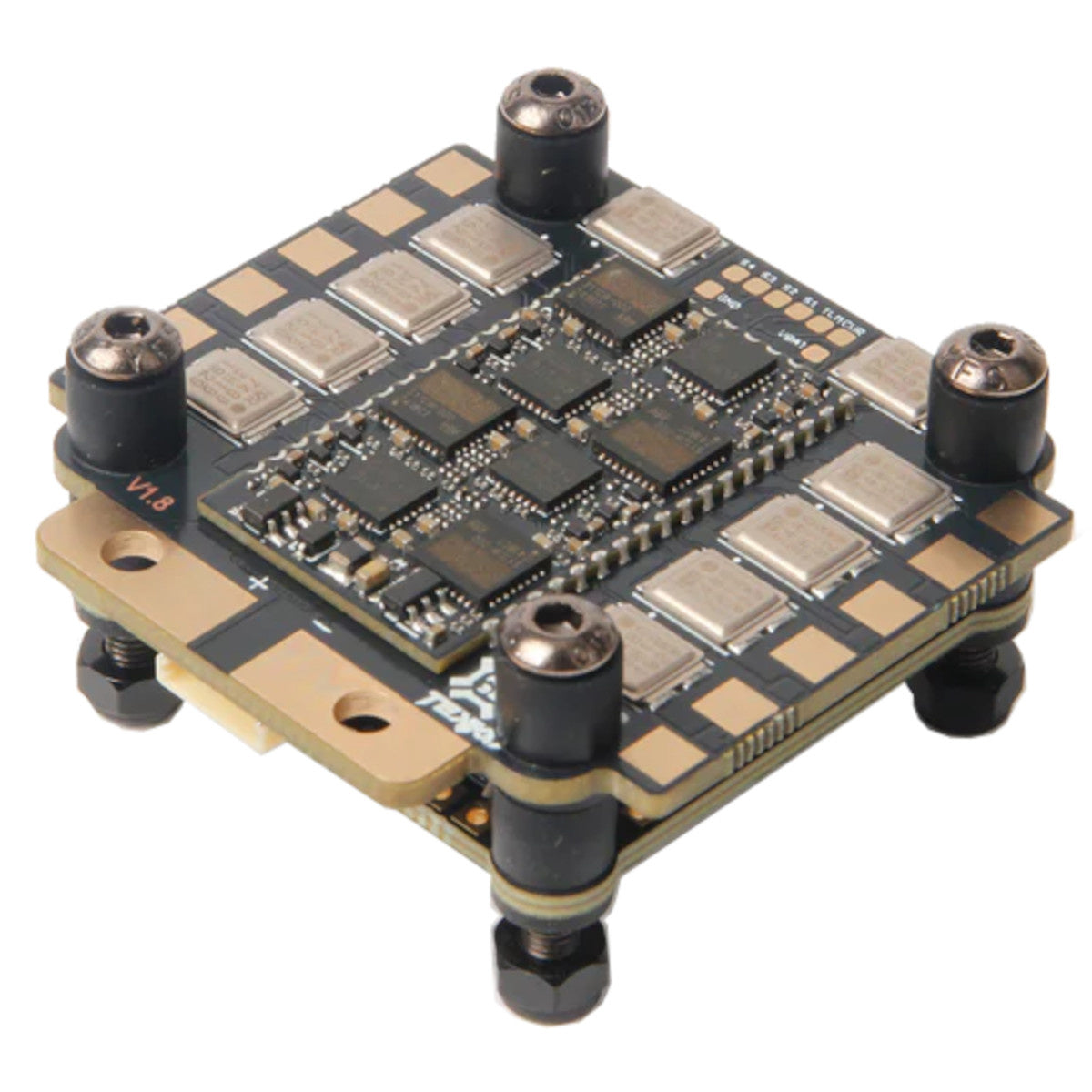

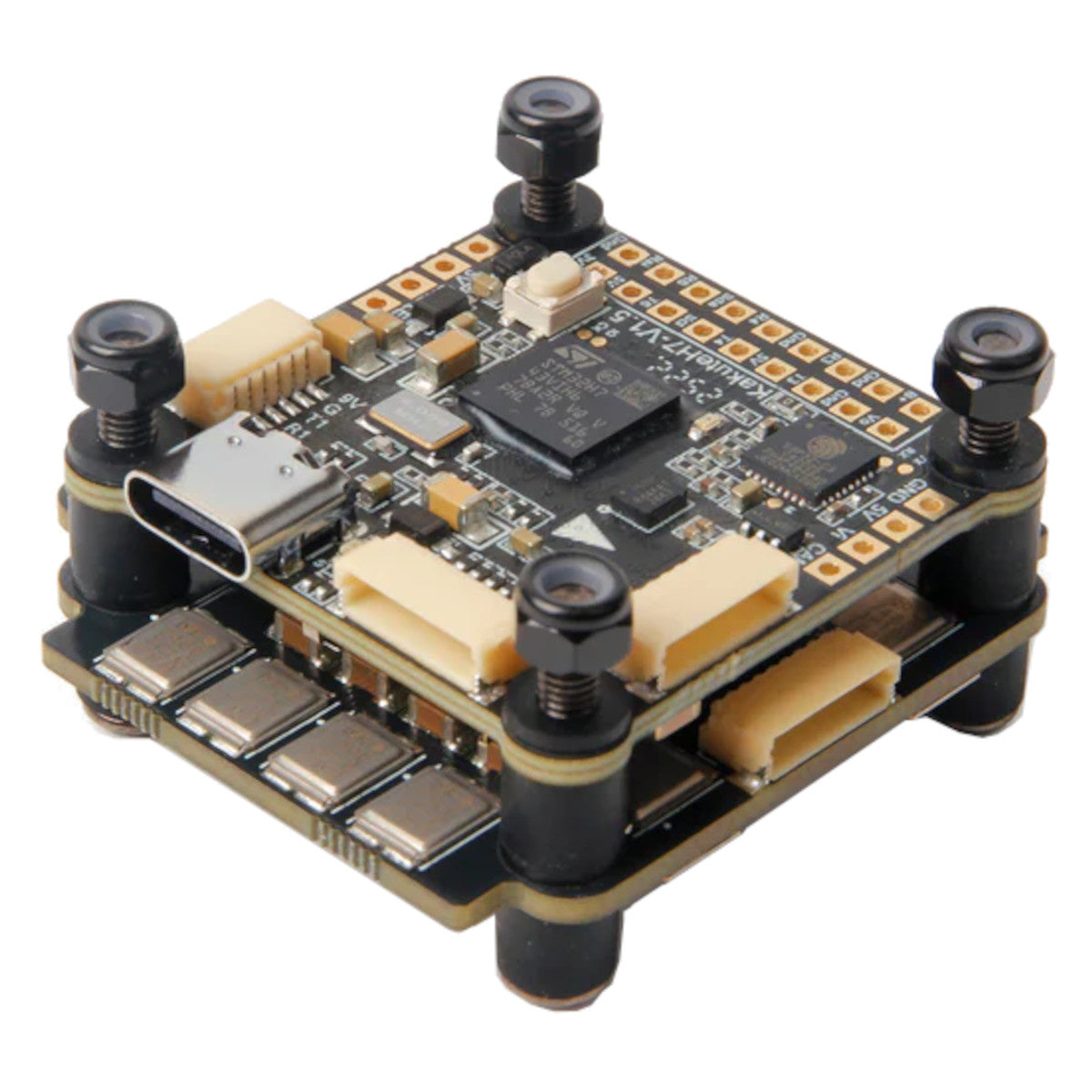

Kakute H7 V1.5 Stack H743 FC + Tekko32 F4 Holybro

 Kakute H7 V1.5 Stack  H743 FC + Tekko32 F4 Holybro

Specifications

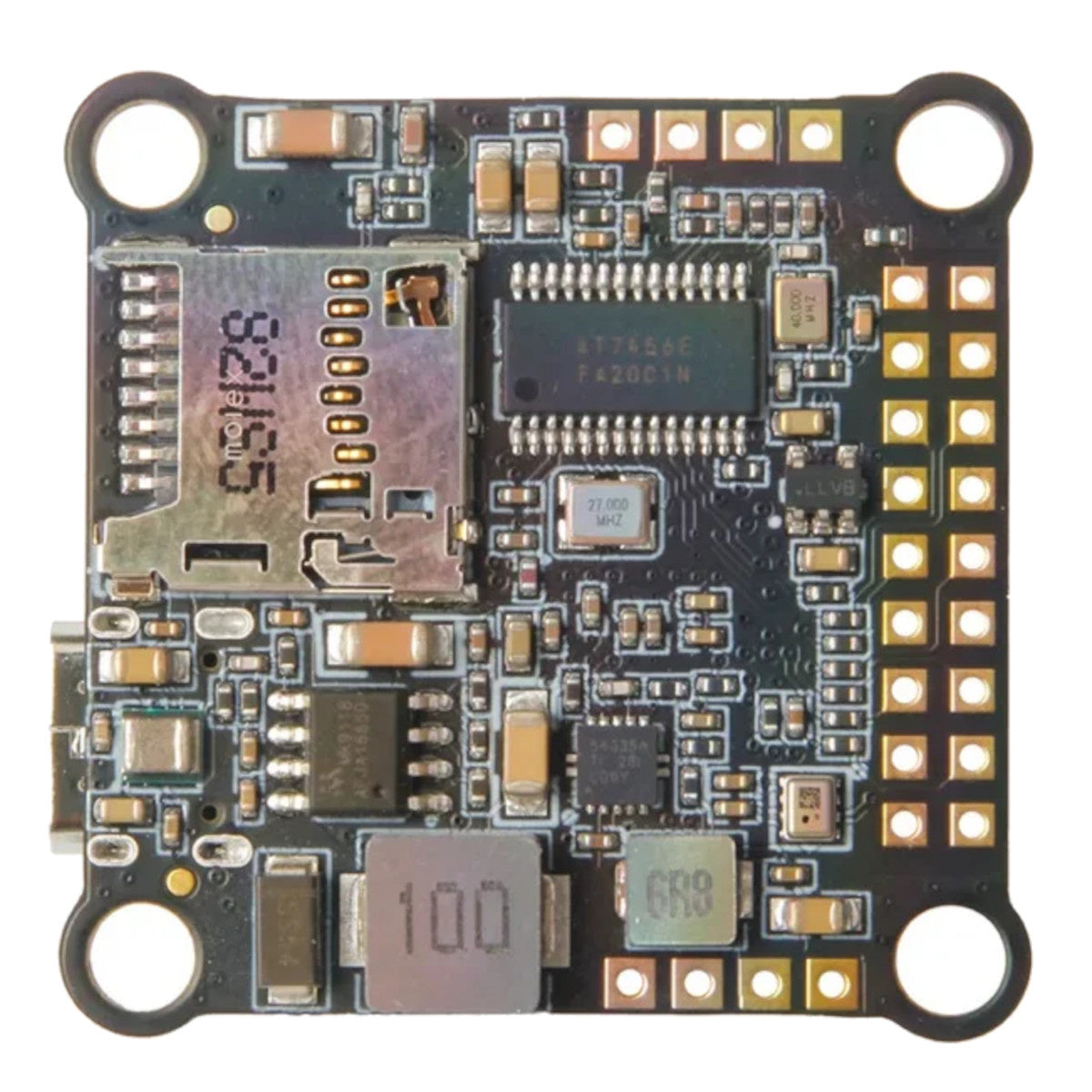

• Flight Controller (Kakute H7 V1.5):

  • MCU: STM32H743 (480MHz).

  • Gyro: ICM-42688-P (Low Noise, V1.5 Exclusive).

  • Barometer: SPA06 (High Precision).

  • Blackbox: MicroSD Card Slot (Unlimited Logging).

  • Connectivity: Bluetooth + USB-C.

  • OSD: AT7456E (Analogue) + UART (Digital).

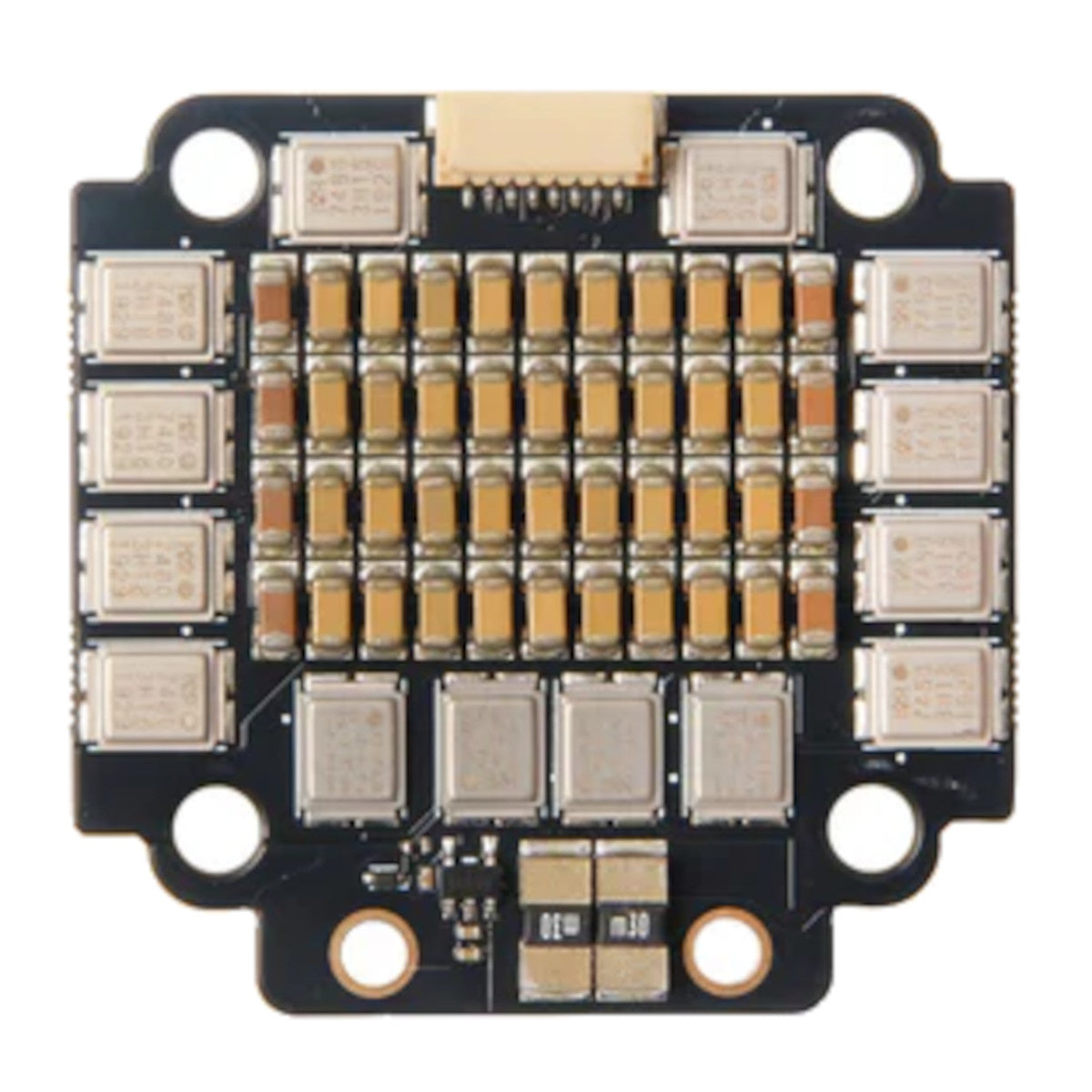

• ESC (Tekko32 F4 Metal):

  • Current: 65A Continuous / 75A Burst.

  • MCU: F4 Core @ 150MHz (Faster than standard F3/F0 ESCs).

  • PWM: Up to 96kHz (Default) for ultra-smooth flight.

  • Mosfets: Metal Case (High Thermal Efficiency).

• Included in the Package:

  • 1 x Kakute H7 V1.5 Flight Controller

  • 1 x Tekko32 F4 Metal 65A 4-in-1 ESC

  • 1 x Electrolytic Capacitor (1000uF 35V)

  • 1 x JST-SH 8-pin Cable (FC to ESC)

  • 1 x JST-SH 6-pin Cable (DJI Air Unit)

  • 1 x Set of M3 Silicon Grommets

•
