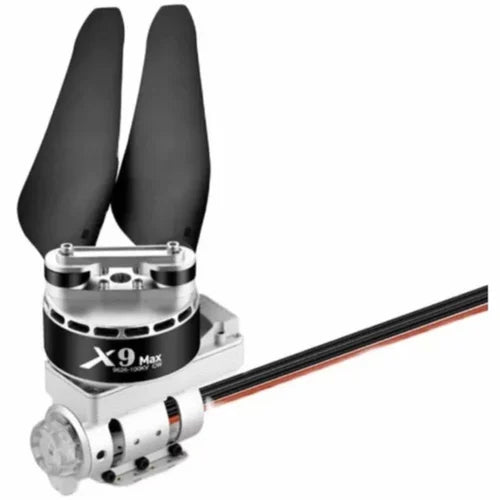

Hobbywing XRotor X9 Combo CW

Hobbywing XRotor X9 Combo CW

Specifications:

Max. Thrust: 22kg/Axis (46V, Sea Level)
Recommended Takeoff Weight: 7-9.5kg/Axis (46V, Sea Level)
Recommended LiPo Battery: 12-14S（LiPo)
Operating Temperature: -20-55 DegC
Combo Weight: 1524g
Waterproof Rating: IPX7

Motor
KV Rating: 110 rpm/V
Stator Size: 96*16mm
Tube Diameter: 40mm
Bearing: Imported Waterproof Bearing

ESC
Recommended LiPo Battery: 12-14S LiPo
PWM Input Signal Level: 3.3V/5V(Compatible)
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100-1940us(Fixed or cannot be Programmed)
Max. Input Voltage: 52.2V(Standard )， 61V(14S- Version)
Max. Input Current (Cont.): 120A(w/ Good Heat Dissipation)
Max. Peak Current (10s): 150A(w/ Good Heat Dissipation)
BEC: No
Mounting Holes for Nozzle: 28.4mm-2*M3

Propeller: 3411
