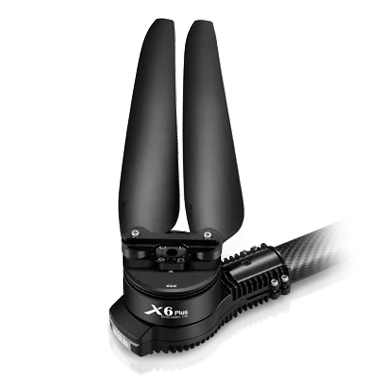

Hobbywing X6 Plus Combo CCW

Hobbywing X6 Plus Combo CCW

Specifications

Max. Thrust : 11.8kg/Axis (46V, Sea Level)
Recommended Takeoff Weight: 3.5-5.5kg/Axis (46V, Sea Level)
Recommended LiPo Battery: 12-14S(LiPo)
Operating Temperature: -20~50℃
Combo Weight: 790
Waterproof Rating: IPX6

Motor:
KV Rating: 150rpm/V
Stator Size: 62*18mm
Powertrain arm tube outer diameter: 30mm
Bearing: Bearings imported from Japan

ESC:
Recommended LiPo Battery: 12-14S(LiPo)
PWM Input Signal Level: 3.3V/5V
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage: 61V
Max. Input Current (Short duration): 100A(w/ Good Heat Dissipation)
BEC: No

Propeller: 2480
