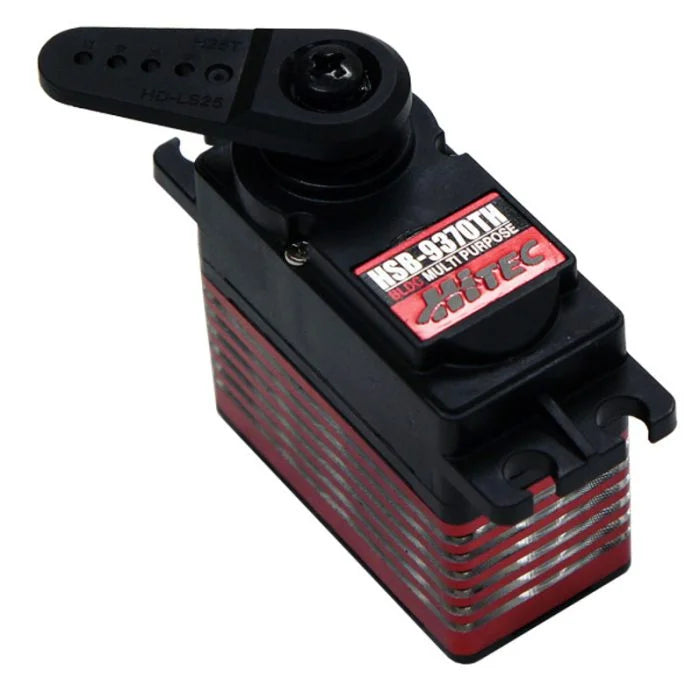

Hitec HSB-9370TH w/PAD Brushless Titanium Gear Servo Motor

Hitec HSB-9370TH w/PAD Brushless Titanium Gear Servo Motor

Voltage Range 6.0V – 7.4V
No-Load Speed (7.4V) 0.10 sec/60°
No-Load Speed (6.0V) 0.12 sec/60°
Stall Torque (6.0V) 347 oz-in (25 kg.cm)
Stall Torque (7.4V) 347 oz-in (25 kg.cm)
Max PWM Signal Range 700-2300μsec
Travel per µs (Stock) .075°/μsec
Max Rotation (Stock) 120°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 2µs
Motor Type Brushless
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearings
Gear Material Titanium (Hybrid MPD 1st Gear)
Wire Length 11.81″ (300mm)
Weight 2.4oz (68g)
Wire Gauge 20AWG
Servo Size Standard
