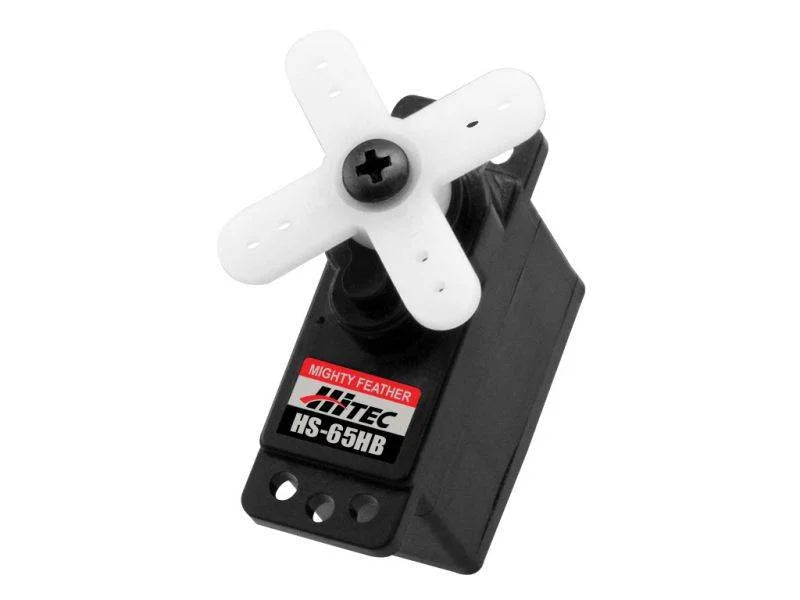

Hitec HS-65HB Mighty Karbonite Feather Servo Motor

Hitec HS-65HB Mighty Karbonite Feather Servo Motor

HS-65HB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.16 ~ 0.13
Maximum Torque Range oz. / in. 22 ~ 26
Maximum Torque Range kg. / cm. 1.6 ~ 1.9
Current Draw at Idle 7.7 mA
No Load Operating Current Draw 220 mA
Stall Current Draw 1,200 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 0.92 x 0.45 x 0.94
Dimensions (Metric) 23.6 x 11.6 x 24.0
Weight (Ounces) 0.39
Weight (Gram) 11.2
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Neodymium
Gear Material Karbonite
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Feather 15 / 8
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
