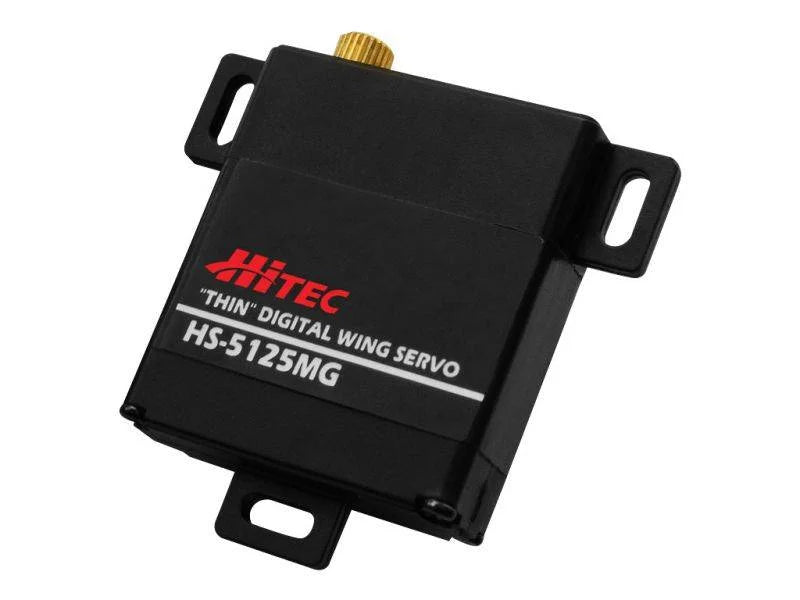

Hitec HS-5125MG Slim Metal Gear Wing Servo Motor

Hitec HS-5125MG Slim Metal Gear Wing Servo Motor

HS-5125MG Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 3 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 µs

Physical Specifications
Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
