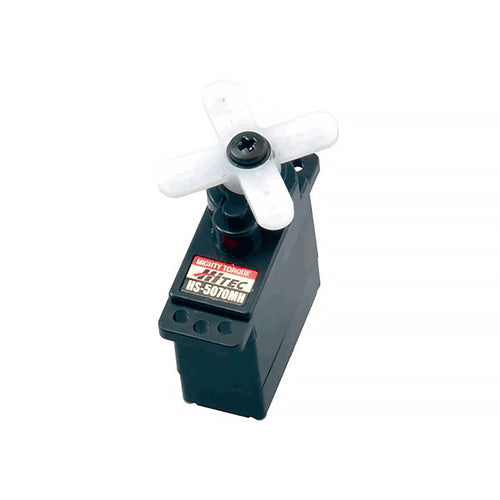

Hitec HS-5070MH Ultra Torque Servo Motor

Hitec HS-5070MH Ultra Torque Servo Motor

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.14 ~ 0.12
Maximum Torque Range oz. / in. 42 ~ 52
Maximum Torque Range kg. / cm. 3.0 ~ 3.7
Current Draw at Idle 3 mA
No Load Operating Current Draw 240 mA
Stall Current Draw 1,300 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 0.92 x 0.45 x 1.14
Dimensions (Metric) 23.6 x 11.6 x 28.1
Weight (Ounces) 0.50
Weight (Gram) 14.2
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Neodymium
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Micro 25
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
