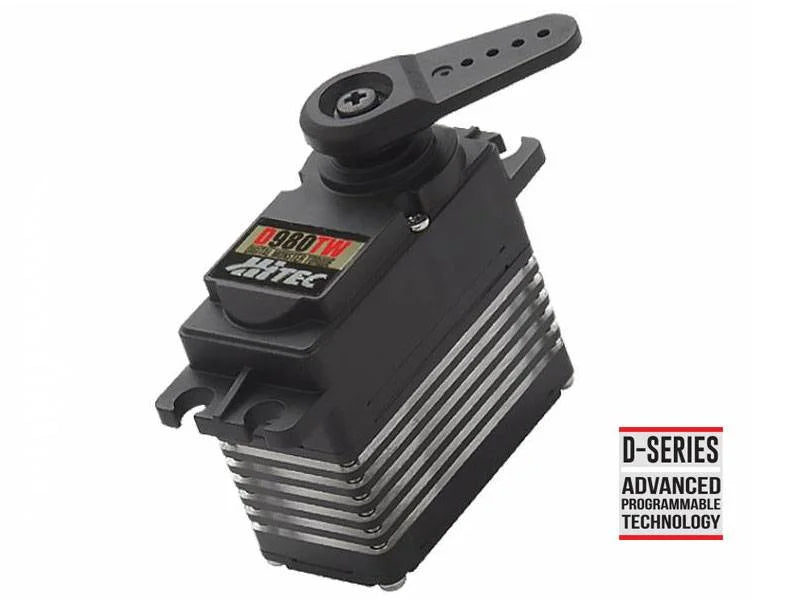

Hitec D-980TW 32-Bit Monster Torque Titanium Gear Servo

Hitec D-980TW 32-Bit Monster Torque Titanium Gear Servo

D980TW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.28 ~ 0.21 ~ 0.17
Maximum Torque Range oz. / in. 361 ~ 500 ~ 611
Maximum Torque Range kg. / cm. 26.0 ~ 36.0 ~ 44.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 6,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.72 x 0.88 x 1.57
Dimensions (Metric) 43.8 x 22.4 x 40.0
Weight (Ounces) 2.76
Weight (Gram) 79.0
Circuit Type 32bit Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80
