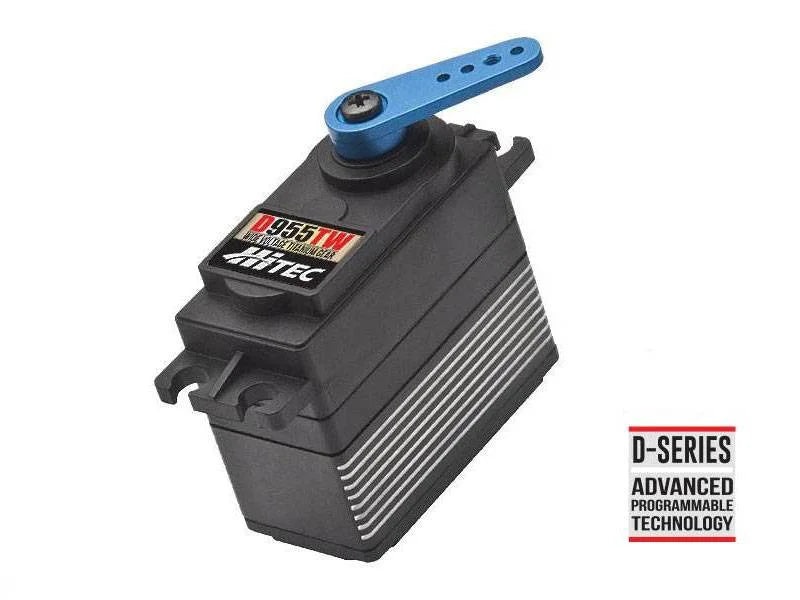

Hitec D-955TW 32-Bit, High Torque, Titanium Gear Servo Motor

Hitec D-955TW 32-Bit, High Torque, Titanium Gear Servo Motor

D955TW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC):4.8V ~ 7.4V
Speed (Second @ 60°):0.19 ~ 0.12
Maximum Torque Range oz. / in.: 251 ~ 404
Maximum Torque Range kg. / cm.:18.0 ~ 29.0
Current Draw at Idle:30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 5,200 mA
Dead Band Width: 1 µs

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.46
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.33
Weight (Gram): 66.0
Circuit Type:32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: MK 1st Gear & 3 Titanium Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 20 / 80
