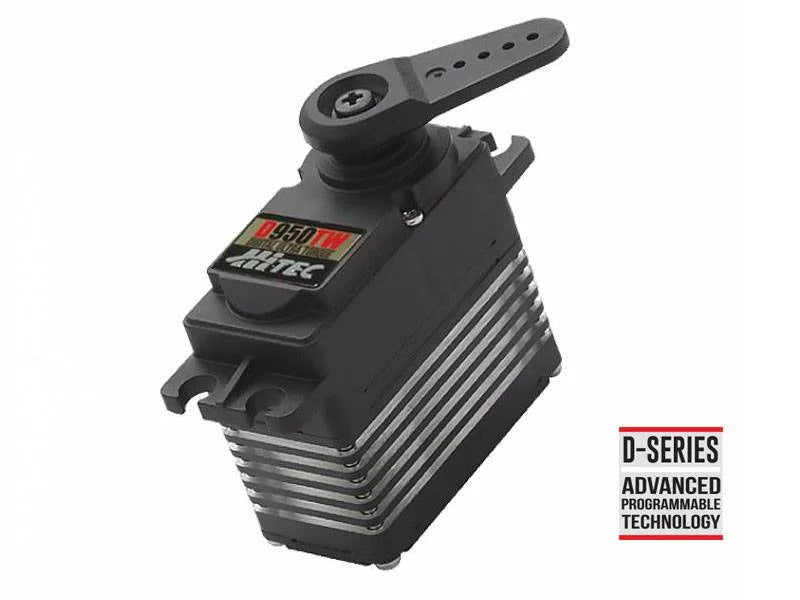

Hitec D-950TW 32-Bit, Ultra Torque Titanium Gear Servo Motor

Hitec D-950TW 32-Bit, Ultra Torque Titanium Gear Servo Motor

D950TW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.23 ~ 0.17 ~ 0.14
Maximum Torque Range oz. / in. 292 ~ 403 ~ 486
Maximum Torque Range kg. / cm. 21.0 ~ 29.0 ~ 35.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 6,200 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type 32bit Programable Digital
Motor Type Coreless Metal Brush
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type/Ømm) H25T
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80
