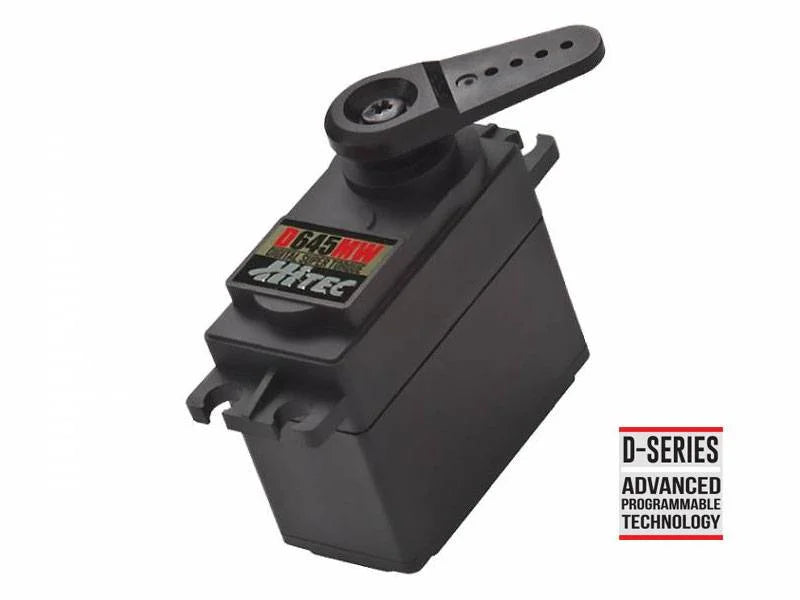

D645MW Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.28 ~ 0.20 ~ 0.17
Maximum Torque Range oz. / in. 115 ~ 158 ~ 180
Maximum Torque Range kg. / cm. 8.3 ~ 11.3 ~ 12.9
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 µs
Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
