HEEWING F01
HEEWING F01
Regular price
Rs. 13,500.00
Regular price
Sale price
Rs. 13,500.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

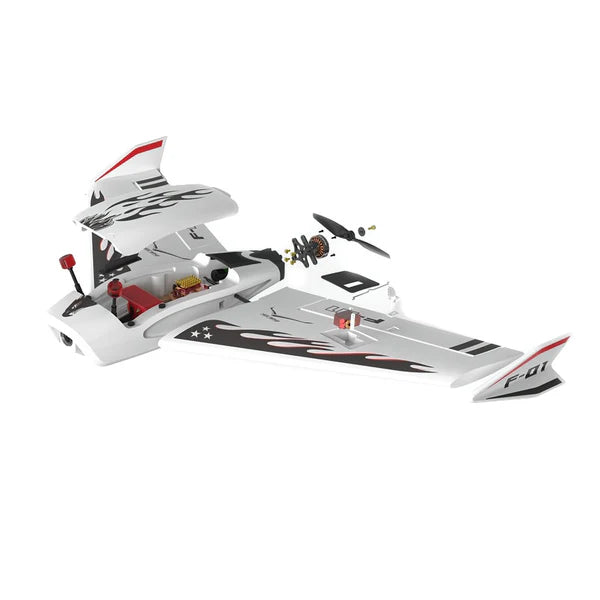

1. Detachable camera plug for FPV flying or 3rd person view flying
2. Built in Carbon Fiber Rod in the main wing
3. Large internal for electronics
4. Hatch secured with 4 powerful magnets
5. New wingtip design allows for vertical take off
6. Supports horizontal and vertical battery mounting
7. Lens protector provided to protect the FPV camera lens
8. Mounting designed for Analog & DJI Digital Air UnitSpecification
Wingspan : 690mm
Material : EPP / ABS / CF
Dimension : 415mm (L), 88mm(H)
Battery Space : 175 x 75 x 55mm
ESC Space : 70 x 38 x 20mm
Camera Space : 20 x 21 x 30mm
Lens protector dimension : Outer diameter 17.5mm, Inner diameter 14~15mm, Height 12mm
Lens Material : ABS
Weight : 150g
AUW : 350 – 850g
Min speed : < 27km/h
Max speed : > 220km/h
* when flying above 100km/h, install the camera plug to prevent air pressure from popping the hatch
Max flight time : > 70mins
Max flight distance : > 45kmWhat’s included
1x F01 KIT
2. Built in Carbon Fiber Rod in the main wing
3. Large internal for electronics
4. Hatch secured with 4 powerful magnets
5. New wingtip design allows for vertical take off
6. Supports horizontal and vertical battery mounting
7. Lens protector provided to protect the FPV camera lens
8. Mounting designed for Analog & DJI Digital Air UnitSpecification
Wingspan : 690mm
Material : EPP / ABS / CF
Dimension : 415mm (L), 88mm(H)
Battery Space : 175 x 75 x 55mm
ESC Space : 70 x 38 x 20mm
Camera Space : 20 x 21 x 30mm
Lens protector dimension : Outer diameter 17.5mm, Inner diameter 14~15mm, Height 12mm
Lens Material : ABS
Weight : 150g
AUW : 350 – 850g
Min speed : < 27km/h
Max speed : > 220km/h
* when flying above 100km/h, install the camera plug to prevent air pressure from popping the hatch
Max flight time : > 70mins
Max flight distance : > 45kmWhat’s included
1x F01 KIT
1x Accessories bag with VTX mounts, battery strap & hardwares

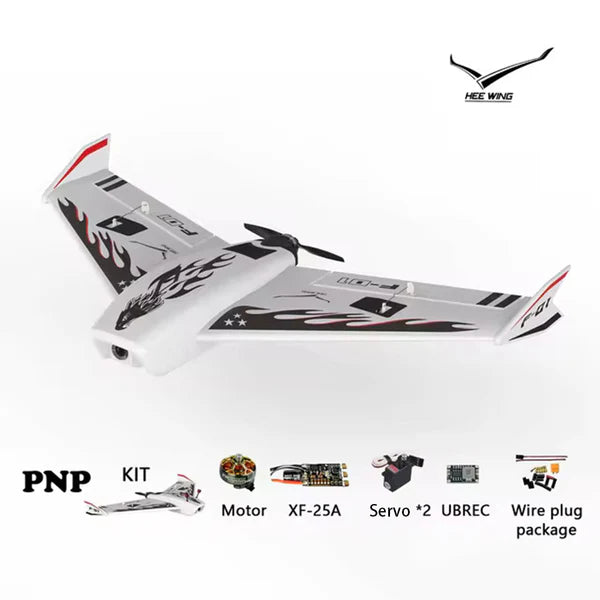

– 1x FX-2205 2350KV BL Motor, 1x FX-25A ESC, 5V 3A UBEC, 5x5E propeller, 2x HEE WING 041 12g digital metal gear servo & XT60 3.5 Battery Connector. ( Electronics without pre-installed)
