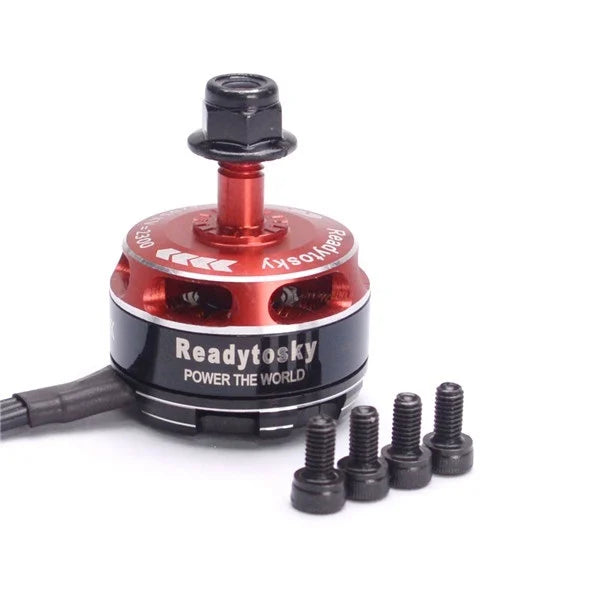

GT2205 2300KV Brushless DC Motor – Black Cap (CW Rotation)

GT2205 2300KV Brushless DC Motor – Black Cap (CW Rotation)

The GT2205 2300KV CW Brushless DC Motor is a high-performance multi-rotor motor designed for 5-inch FPV racing drones, freestyle quads, and performance quadcopter builds. The 2205 stator size steps up from the 2204 class, offering increased torque and power handling for 3S and 4S builds, while the 2300KV rating keeps it versatile across a range of propeller and voltage combinations. The black cap identifies this as the CW (clockwise) variant, placing it at the front-right and rear-left positions in a standard quadcopter X configuration.

• Motor Size: 2205 (22mm stator diameter, 5mm stator height)
• KV Rating: 2300KV
• Rotation: CW (Clockwise) – identified by black cap
• Motor Type: Brushless outrunner (BLDC)
• Recommended Voltage: 3S–4S LiPo (11.1V–14.8V)
• Recommended Propeller: 5040–5045 tri-blade or 5045 bi-blade CW
• Application: 5-inch FPV racing drones, freestyle quads, and performance quadcopter builds
• Mounting: Standard multi-rotor motor mount pattern
• Position: CW – front-right and rear-left in standard quadcopter X configuration
• Cap Colour: Black – CW rotation identifier

More torque, more power for 5-inch builds — the GT2205 2300KV CW motor delivers the increased stator volume and torque of the 2205 class in a lightweight package, giving 5-inch FPV pilots the punch and responsiveness needed for competitive racing and aggressive freestyle flying. Pair with the CCW variant (silver/white cap) for a complete quadcopter motor set.
