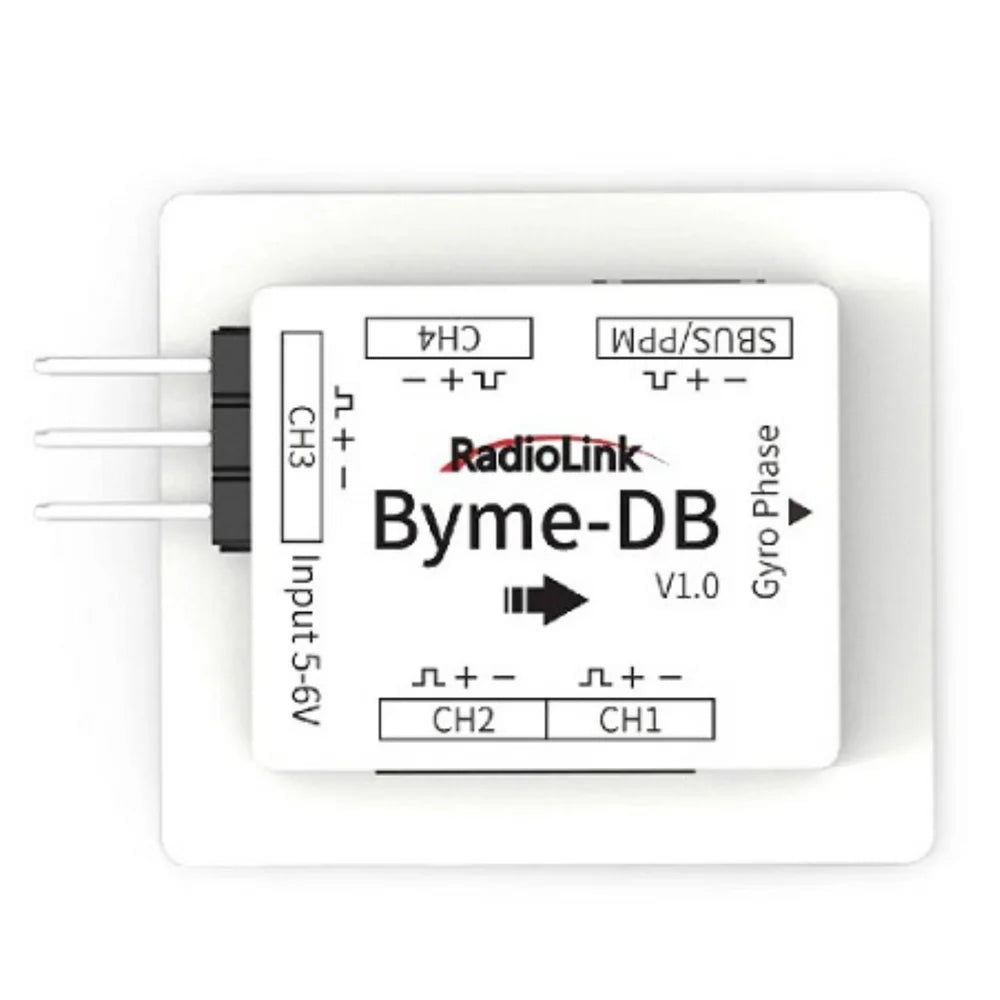

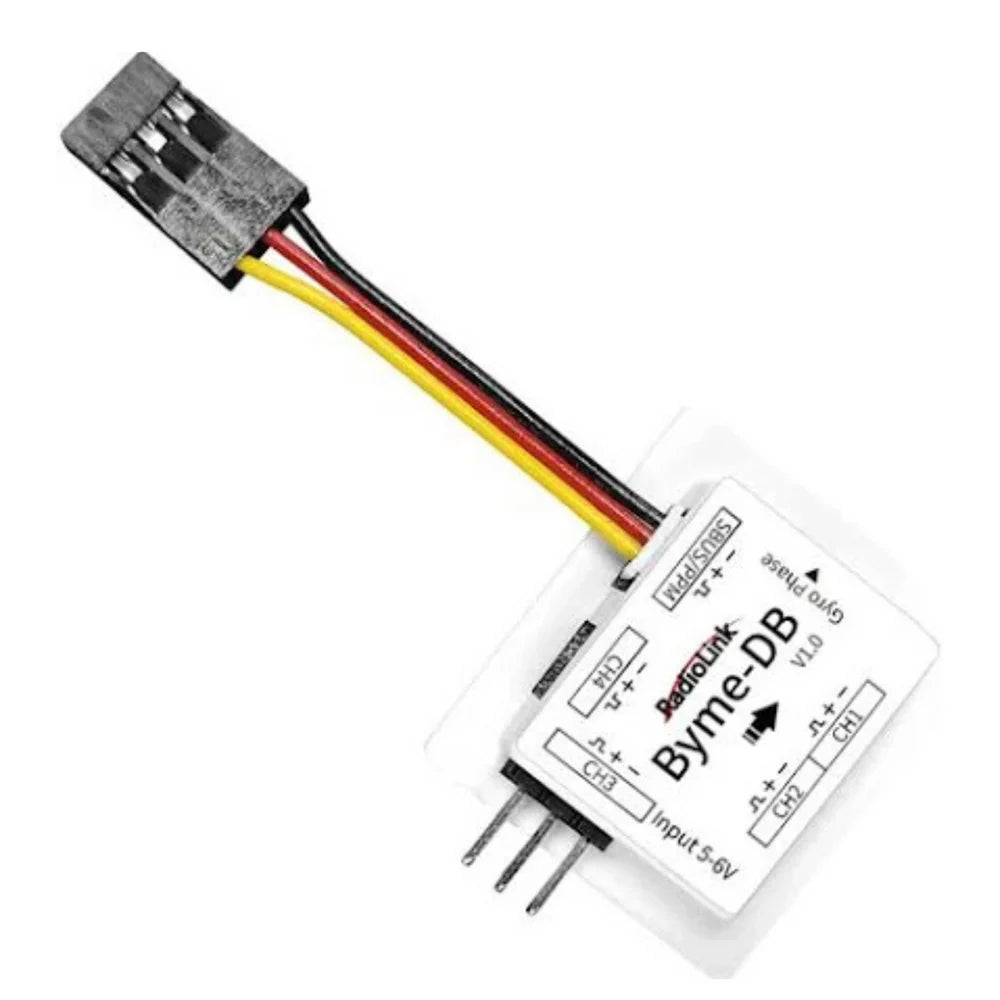

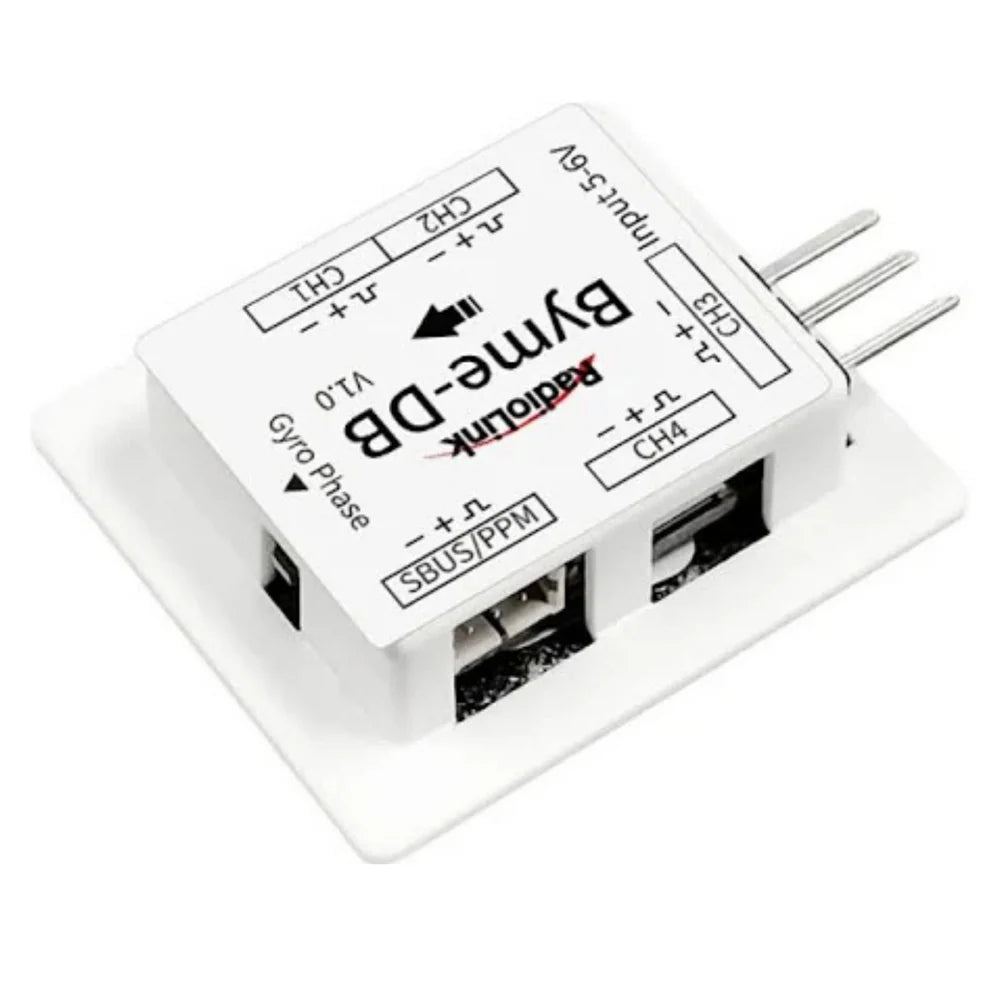

Flight Controller Radiolink Byme-DB 4 Channel 3-Axis with Gyro Stabilizer for RC Planes
Flight Controller Radiolink Byme-DB 4 Channel 3-Axis with Gyro Stabilizer for RC Planes
Regular price
Rs. 1,999.00
Regular price
Sale price
Rs. 1,999.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Flight Controller Radiolink Byme-DB 4 Channel 3-Axis with Gyro Stabilizer for RC Planes
Specifications
| Mode | BYME-DB |
|---|---|
| Number of Channels | 4 channels |
| Supported Signals | SBUS/PPM |
| Input Voltage | 5-6V |
| Working Current | 25 ± 2mA |
| Integrated Sensors | 3-axis gyroscope and 3-axis acceleration sensor |
| Flight Mode | Stabilization Mode, Gyro Mode, Manual Mode |
| Flight Mode Switching Channel | Channel 5 |
| Throttle Cut Channel | Channel 7 (requires at least 7 channel transmitter) |
| Compatible Transmitters | All transmitters with SBUS/PPM signal output |
| Socket Specifications | CH1, CH2, CH4: 3P SH1.00 sockets; Receiver connection socket: 3P PH1.25 socket; CH3: 3P 2.54mm Dupont head |
| Dimensions | 29 × 25.1 × 9.1 mm (1.14" × 0.99" × 0.36") |
| Weight (with wire) | 4.5g (0.16oz) |
