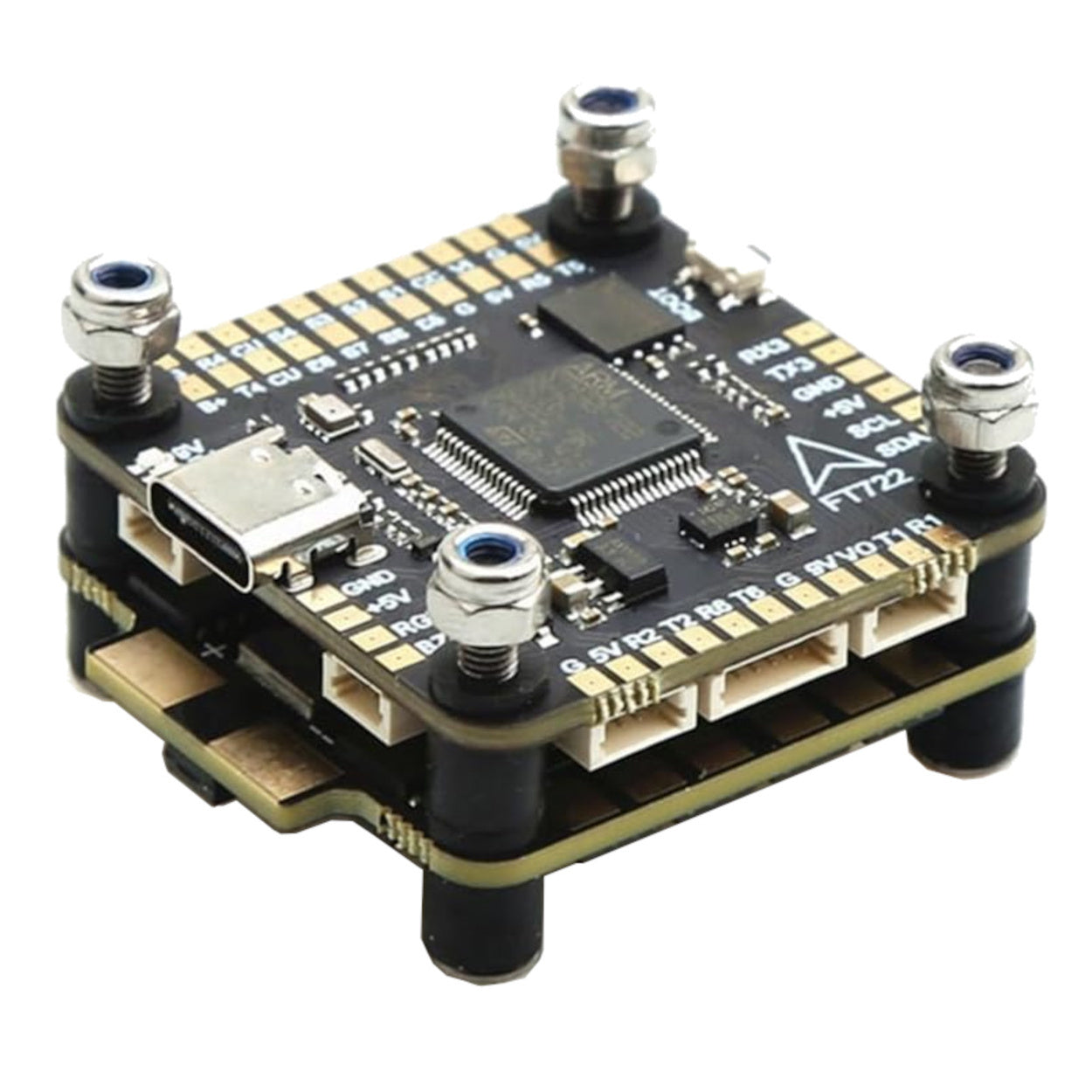

F722 HD Pro 3 Stack F7 FC + KO60A

Specifications

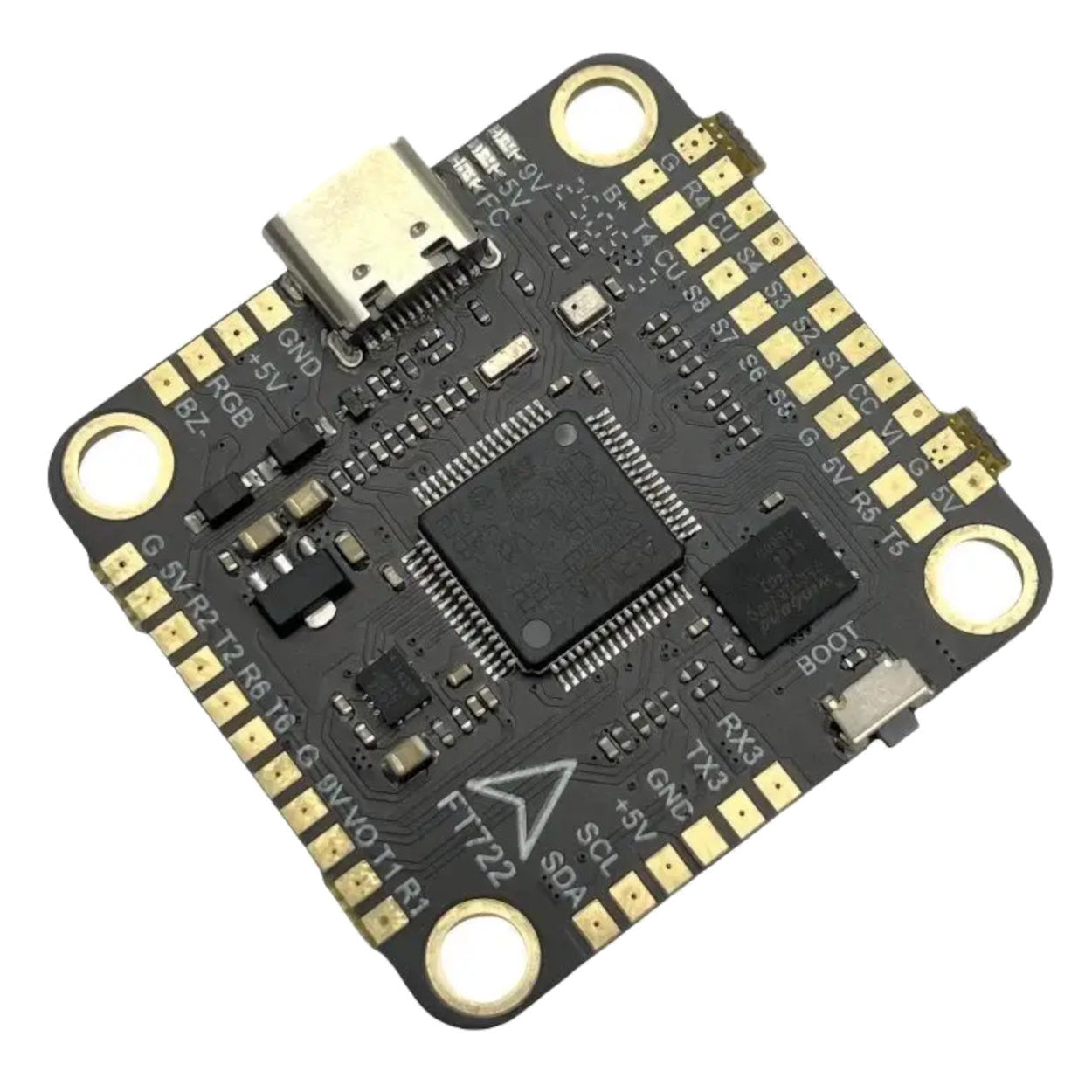

• Flight Controller (F722):

  • MCU: STM32F722RET6 (216MHz).

  • Gyro: BMI270 / MPU6000 (Dual footprint design, usually BMI270).

  • Barometer: BMP280 (Ready for Altitude Hold/Rescue).

  • Blackbox: 16MB Onboard Flash.

  • Video: Dedicated connector for DJI Air Unit / Vista.

  • OSD: AT7456E (Analogue) + UART (Digital).

  • BEC: 5V/3A and 10V/3A (Clean power for VTX).

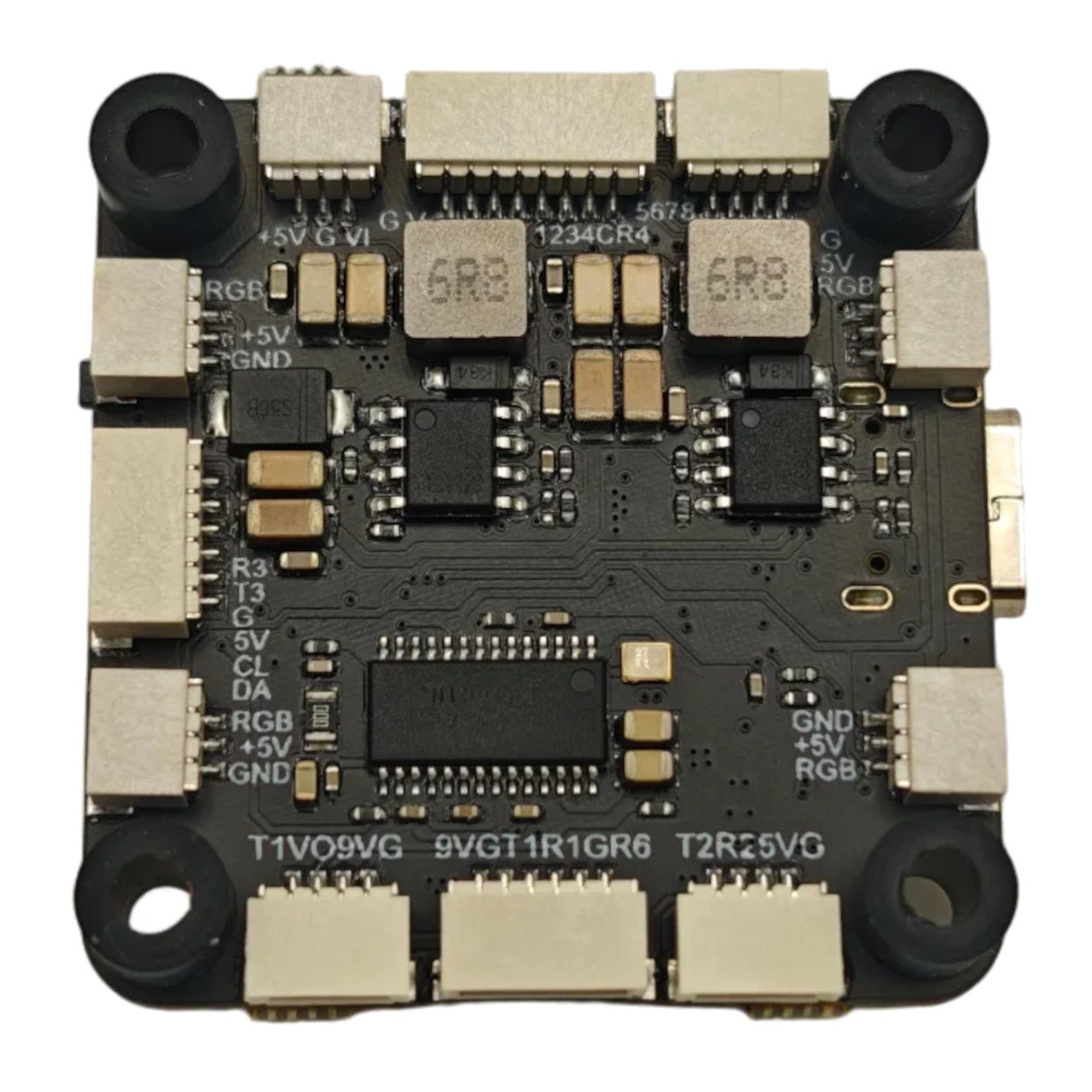

• ESC (KO60A BL32):

  • Continuous Current: 60A.

  • Burst Current: 80A (10 seconds).

  • Input Voltage: 3S - 6S LiPo.

  • Firmware: BLHeli_32 (Supports Telemetry).

  • Mounting: 30.5mm x 30.5mm (M3).

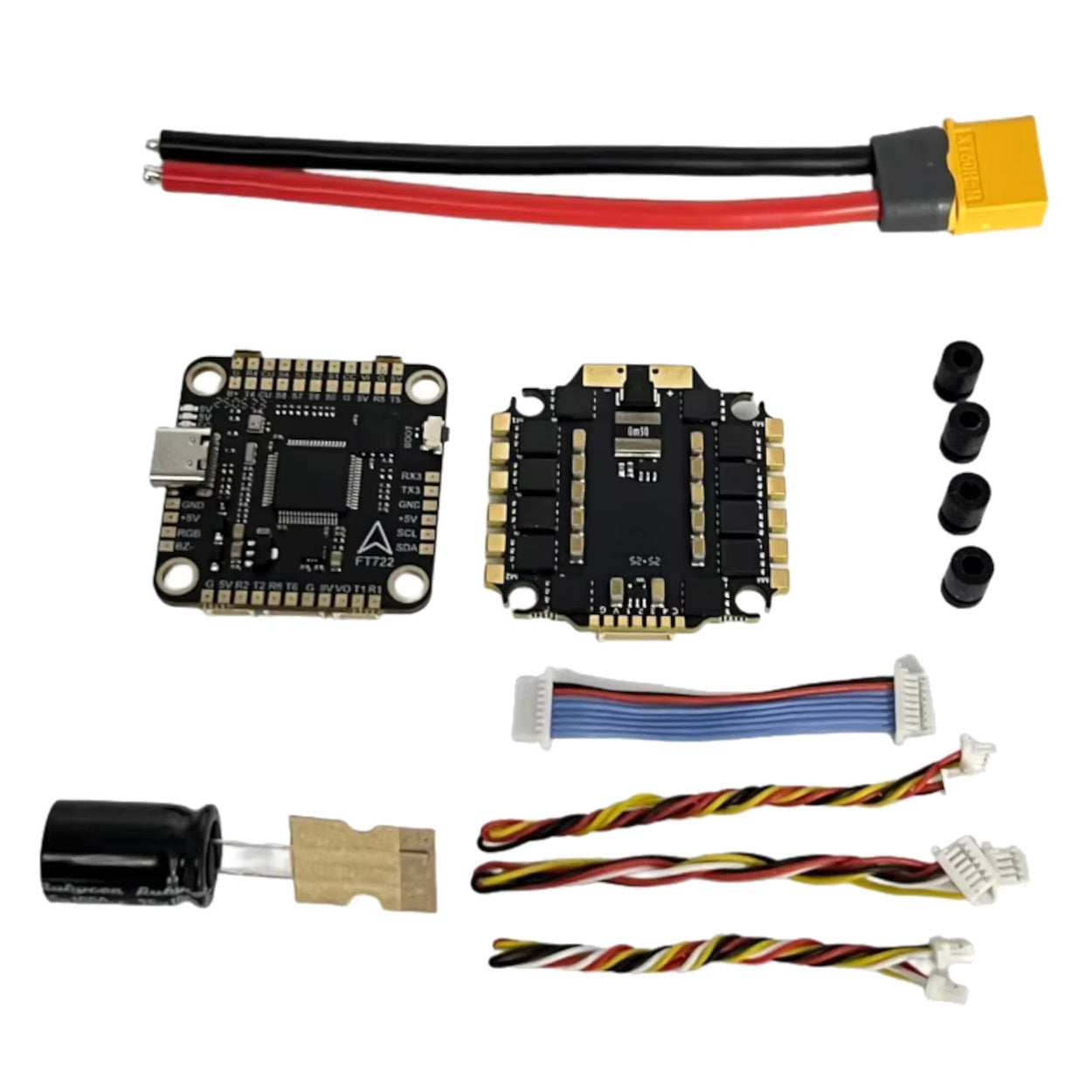

• Included in the Package:

  • 1 x Skystars F722 HD Pro 3 FC

  • 1 x KO60A BLHeli_32 4-in-1 ESC

  • 1 x XT60 Pigtail & Capacitor

  • 1 x Cable Set (DJI, FC-to-ESC)

  • 1 x Mounting Hardware (Screws & Grommets)
