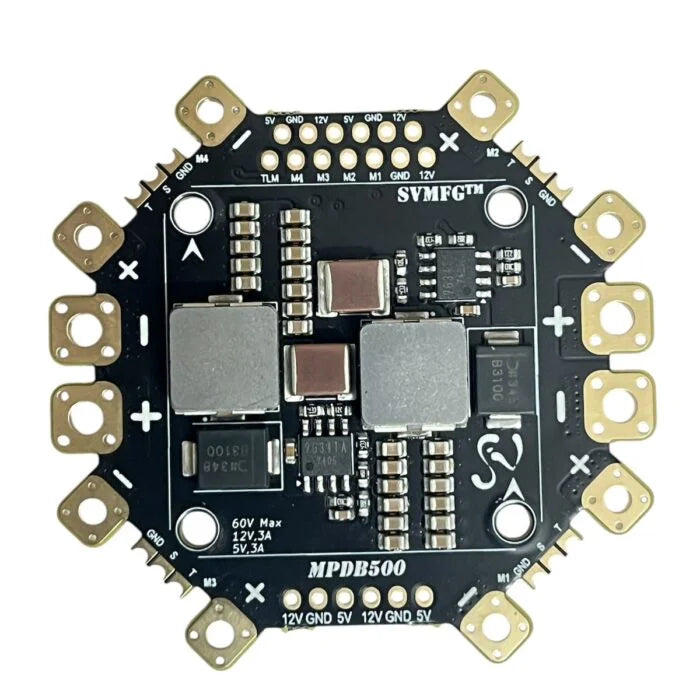

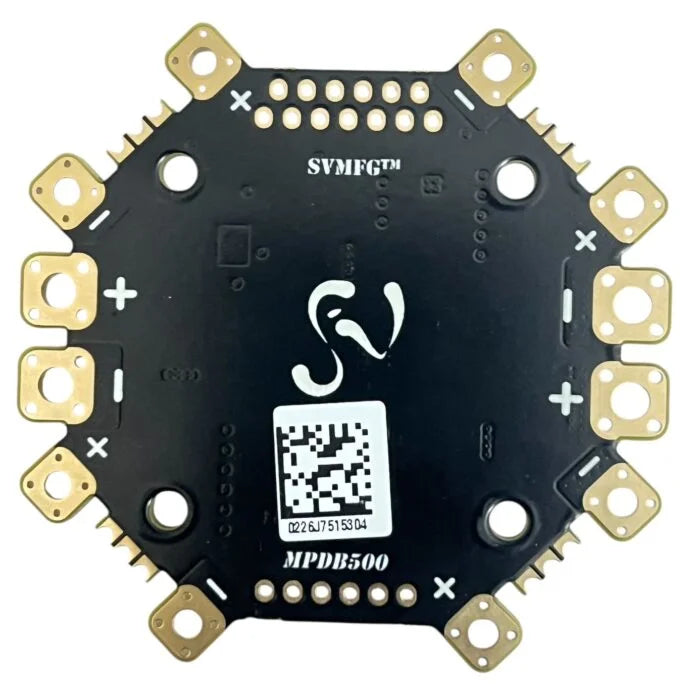

ESC SVMFG MPDB 500A PDB 14S 60V

ESC SVMFG MPDB 500A PDB 14S 60V

4S-14S input
8 Layers of 4oz copper to each ESC
12V @ 3A switching regulator
5V @ 3A switching regulator
Overcurrent and short circuit protection on both 5V and 12V regulators
Two main power inputs, modular battery
Thermal relief on all solder tabs to allow for easier soldering
2.5mm thickness for strength and reliability
58mm x 58mm in size and mounting holes 30.5mm x 30.5mm
PCB ISOLA 185HR rated for 180°C continuous
Designed and manufactured in India
Weight: 33 grams
Dimensions: 58x58x6mm
