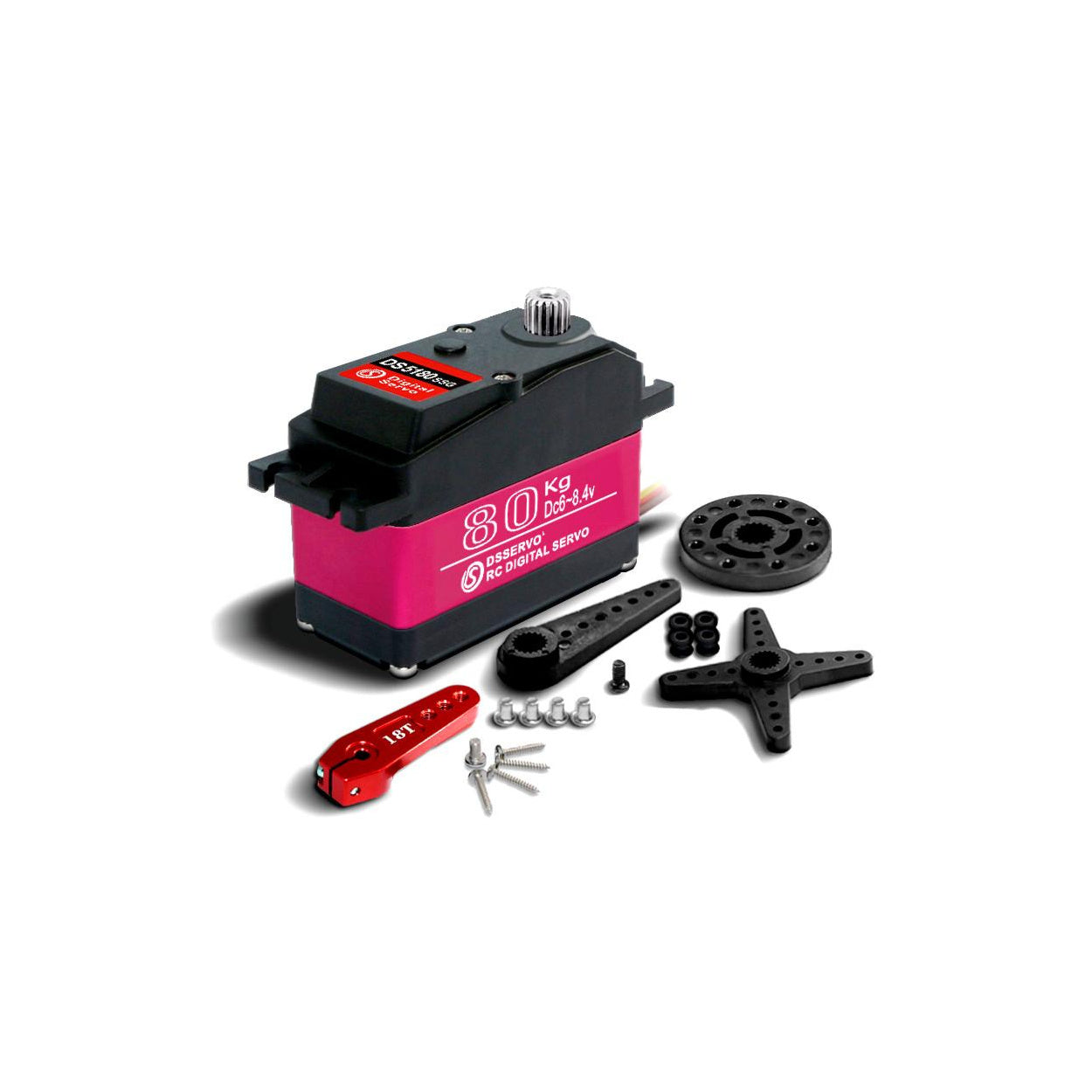

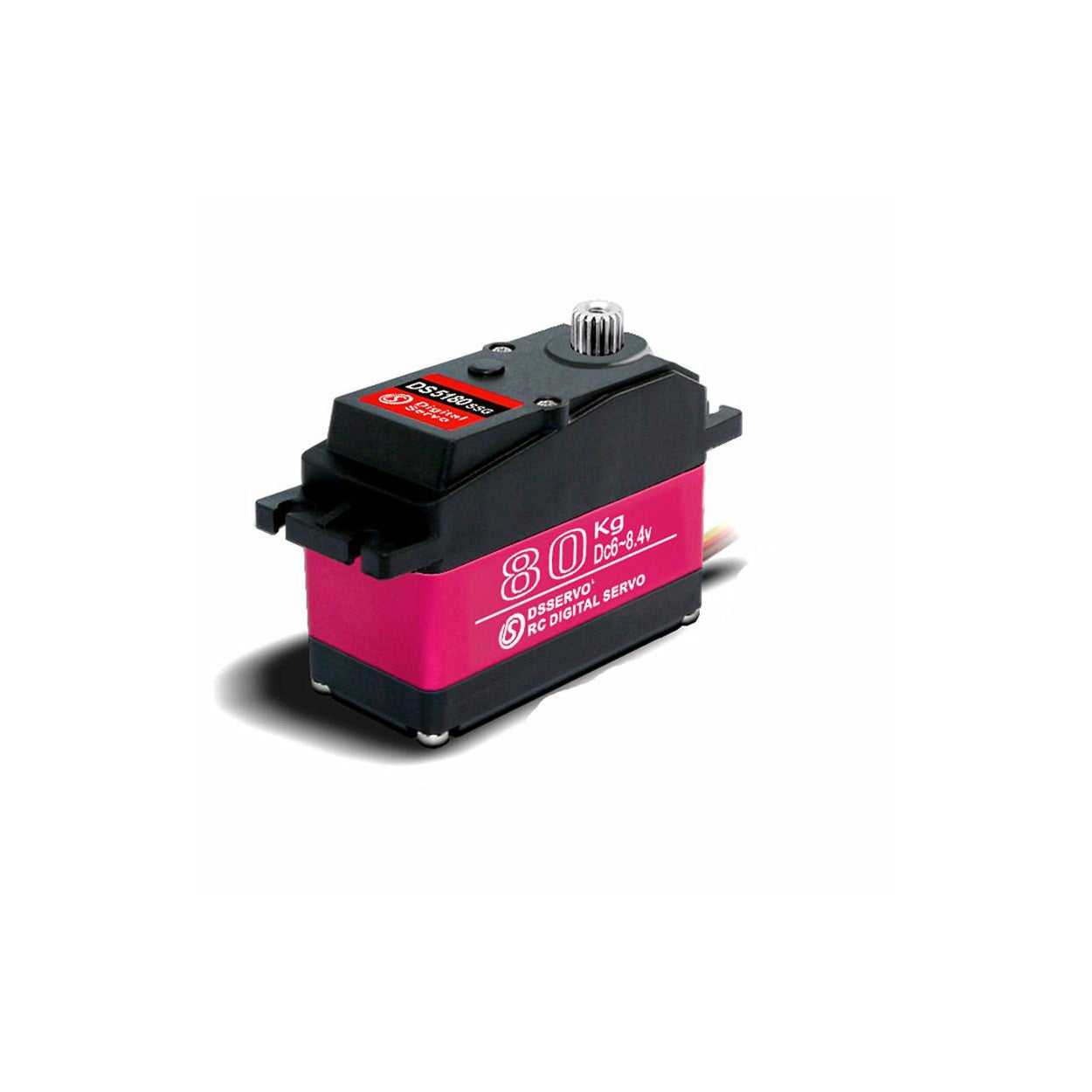

DS5180 High Torque Digital Servo 80KG 180 Degree Metal Gear

DS5180 High Torque Digital Servo – 80KG | 180° | Metal Gear

The DS5180 is a serious servo for serious builds. Delivering an extraordinary 80kg/cm torque output with a full 180° rotation range and a heavy-duty full metal gear train, this digital servo is engineered for the most demanding large-scale RC aircraft, industrial robotics, and heavy-load automation systems. When your build pushes the limits, the DS5180 pushes back harder – with precision, power, and unwavering reliability.

Key Specifications

• Model: DS5180
• Type: Digital Servo
• Torque: 80 kg/cm
• Rotation Angle: 180°

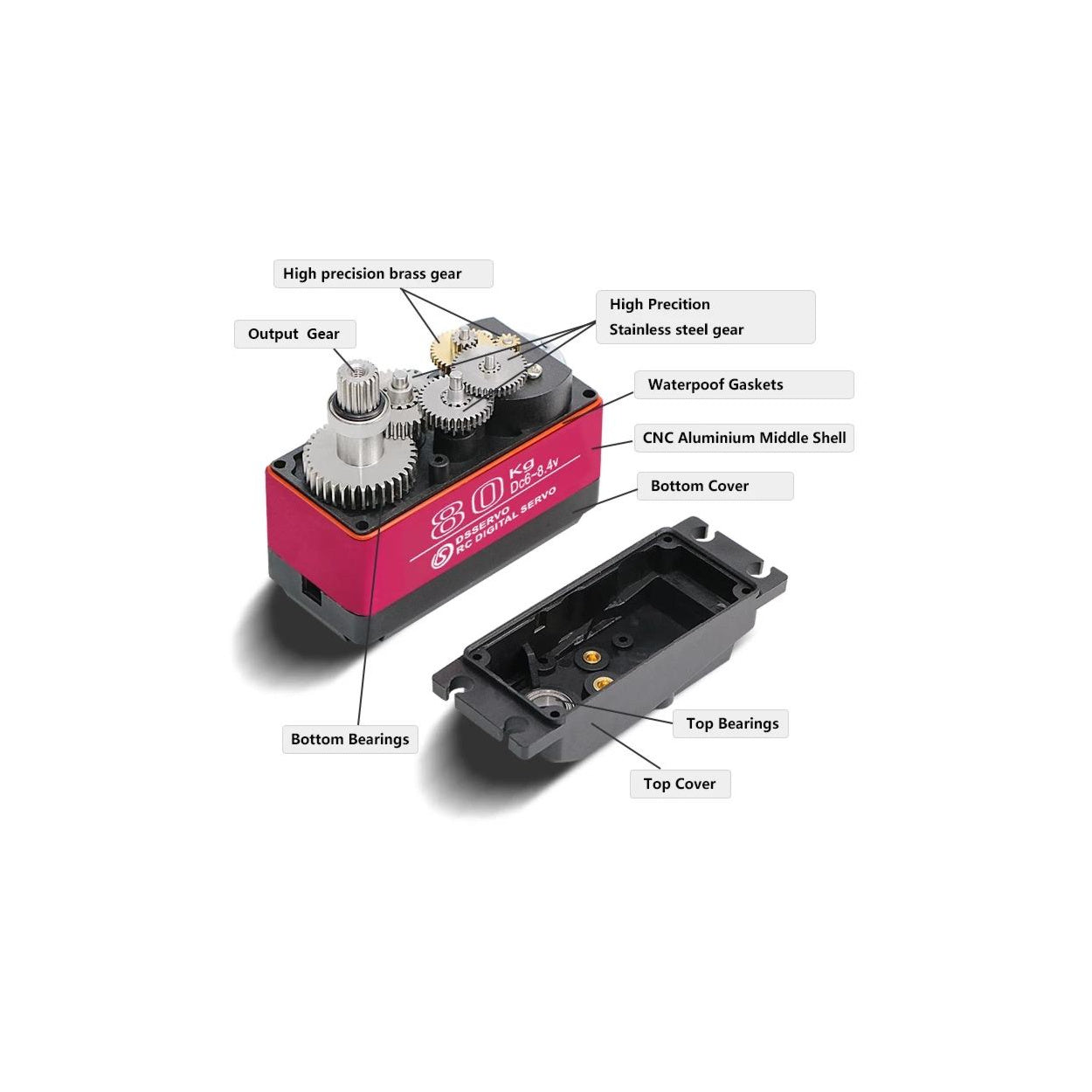

• Gear Material: Full metal gears
• Control Signal: PWM digital signal
• Operating Voltage: 4.8V – 8.4V
• Connector: Standard JR/Futaba compatible

Key Features

• 80kg/cm torque – exceptional power for large-scale and industrial-grade applications
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for fast response, accurate positioning, and strong holding torque
• Wide voltage range (4.8V–8.4V) for compatibility with high-voltage RC systems
• 180° travel range for versatile control surface and robotic joint setups
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Large-scale and giant RC aircraft (main control surfaces, retract systems)
• Heavy-lift drones and UAV platforms
• Industrial robotics and automation
• Heavy-duty RC cars, trucks, and crawlers
• Pan-tilt systems and heavy camera gimbals
