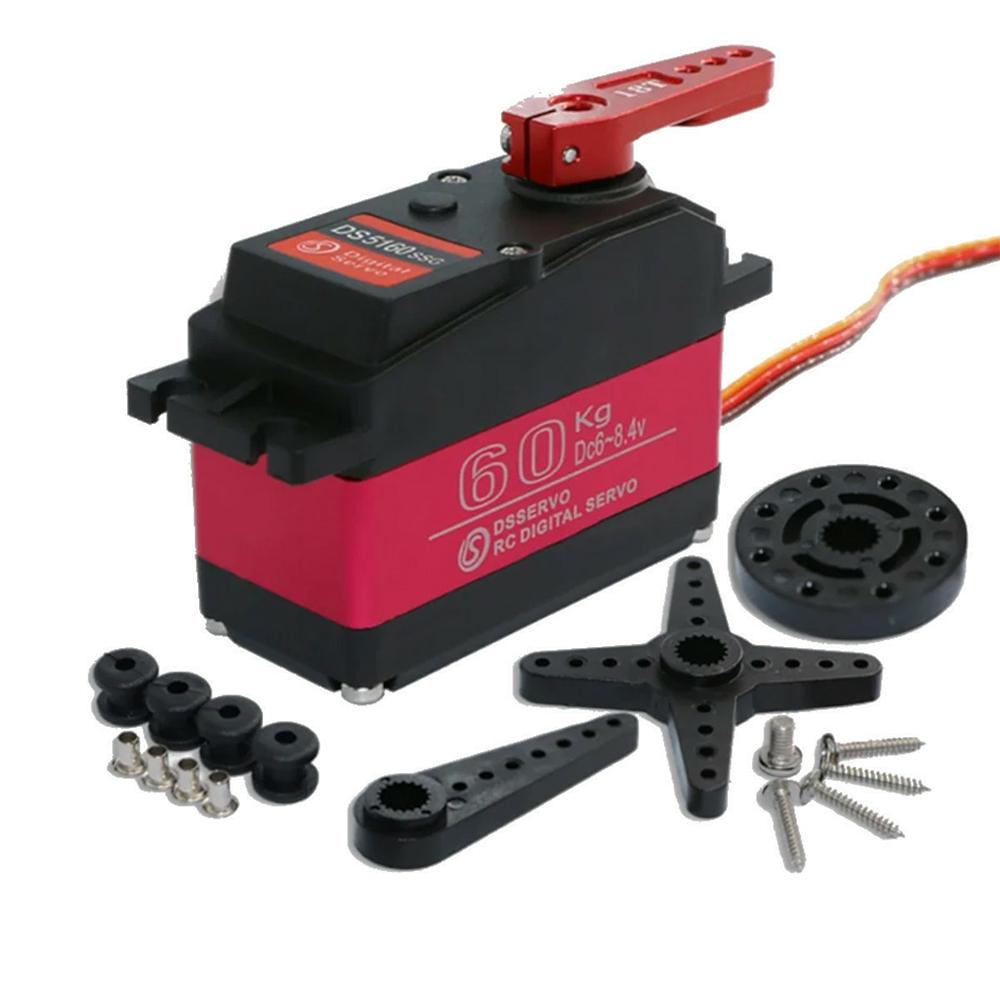

DS5160 60KG Metal Gear Digital Servo Motor – 180° High Torque

DS5160 60KG High Torque Metal Gear Digital Servo Motor – 180°

The DS5160 180° is a flagship-grade digital servo built for extreme RC aircraft, heavy robotics, and Arduino applications demanding maximum torque with precise, controlled actuation. Delivering an extraordinary 60KG·cm of torque within a focused 180° operating angle, this servo is the definitive choice for large control surfaces and high-load mechanical linkages where accuracy and raw power must coexist.

Key Features

• 60KG·cm Torque – Extreme holding and actuation power for large-scale RC aircraft, heavy-lift drones, and industrial robotic joints
• 180° Operating Angle – Precise, controlled range of motion ideal for ailerons, elevators, rudders, flaps, and robotic arm joints
• Full Metal Gear Train – Precision-machined hardened metal gears built to sustain extreme loads without stripping or failure
• Digital Signal Processing – Ultra-fast response, high resolution, and rock-solid holding torque far beyond analogue servo capability
• Arduino Compatible – Standard PWM interface works seamlessly with Arduino, flight controllers, and RC receivers
• Dual Ball Bearings – Heavy-duty low-friction output shaft for smooth, consistent, and repeatable actuation under load

Specifications

• Torque: 60KG·cm (7.4V)
• Operating Voltage: 6.0V – 7.4V
• Operating Angle: 180°
• Speed: 0.13 sec/60° (7.4V)
• Gear Material: Full Metal
• Connector: JR / Futaba compatible (universal 3-pin)
• Weight: ~85g

The DS5160 180° is the ultimate servo for builders who need maximum torque in a precise, controlled sweep — large fixed-wing aircraft, heavy-lift multirotors, and high-load Arduino robotic systems where 180° of travel is the perfect fit.
