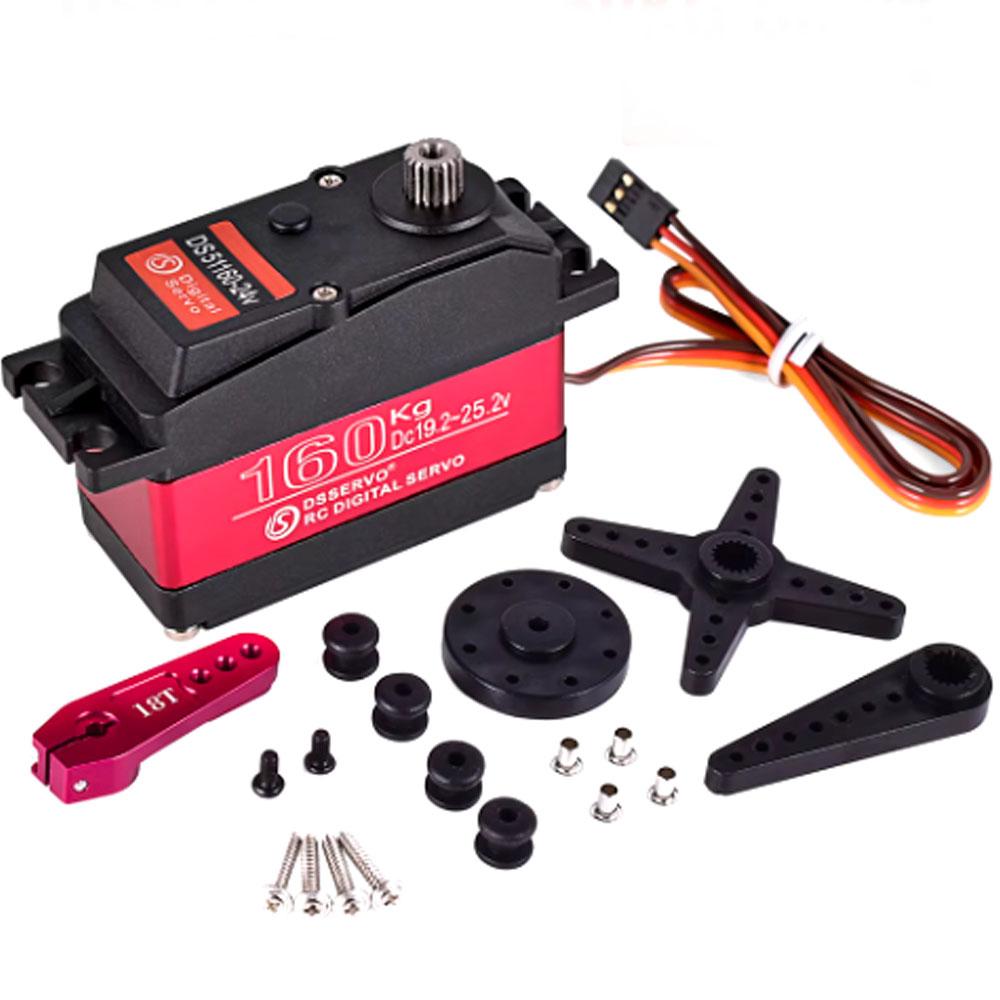

DS51160 24V 160KG 180° Metal Gear Digital Servo Motor

Industrial-Grade Ultra-High-Torque Digital Servo with Standard 180° Range

The DS51160 24V 160Kg.cm digital servo in 180° configuration delivers the same staggering torque output as its 270° sibling, in a standard operating range ideal for applications where precise, high-force actuation within a half-rotation is required. Perfect for robotic joints, heavy steering systems, industrial clamping mechanisms, and large-scale RC platforms.

Powered by 24V for sustained high-torque performance under continuous load, with full metal gears built to withstand the demands of professional and industrial use.

• Model: DS51160
• Voltage: 24V DC
• Torque: 160 Kg.cm
• Operating Angle: 180°
• Gear Type: Full Metal Gear
• Control Type: Digital
• Ultra-high torque for heavy payload actuation
• Standard 180° range for precise positional control
• 24V operation for sustained power under continuous load
• Low deadband for accurate, responsive positioning
• Compatible with standard PWM servo controllers and RC receivers (with 24V supply)
• Suitable for robotic arms, industrial automation, heavy steering, clamping systems, and large RC platforms
