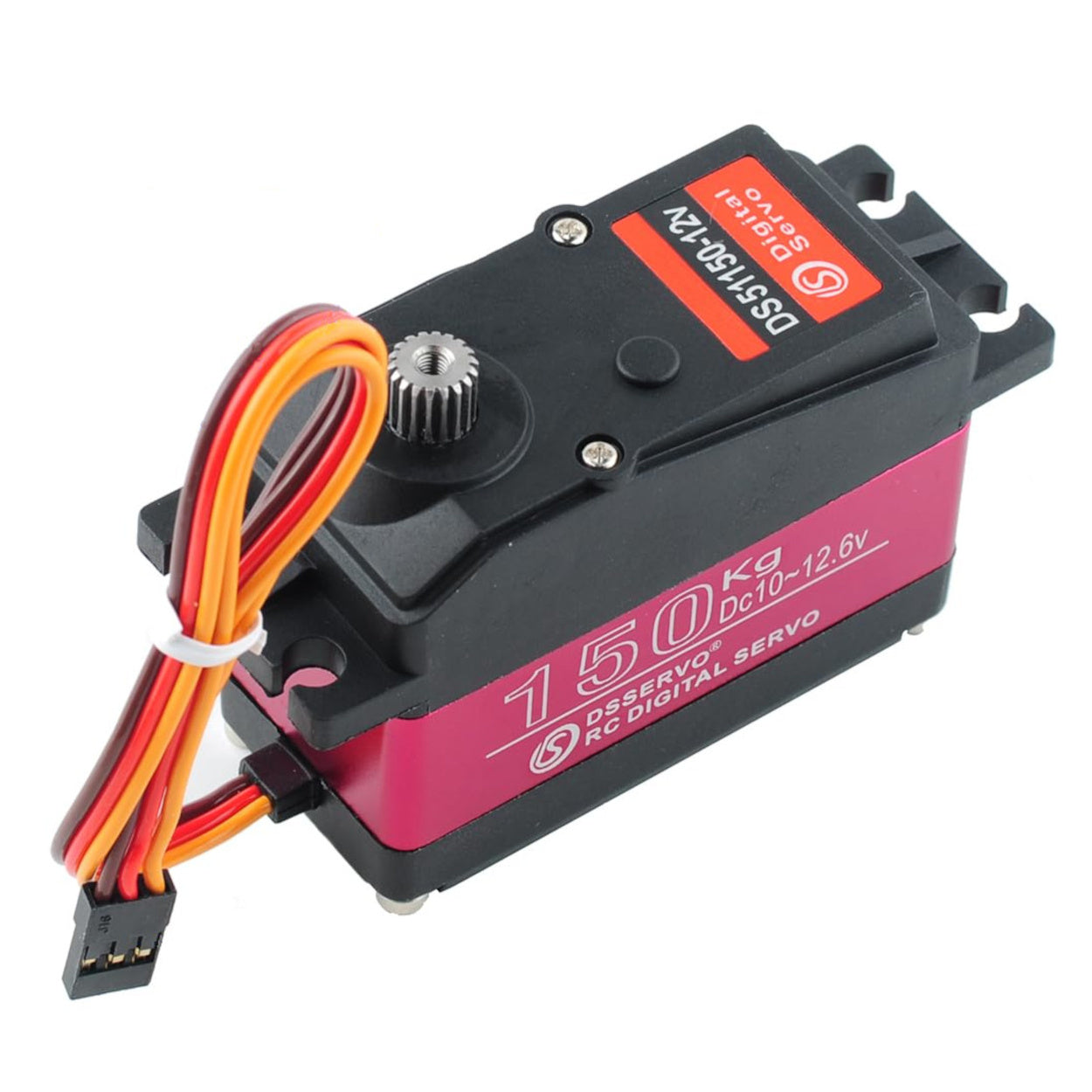

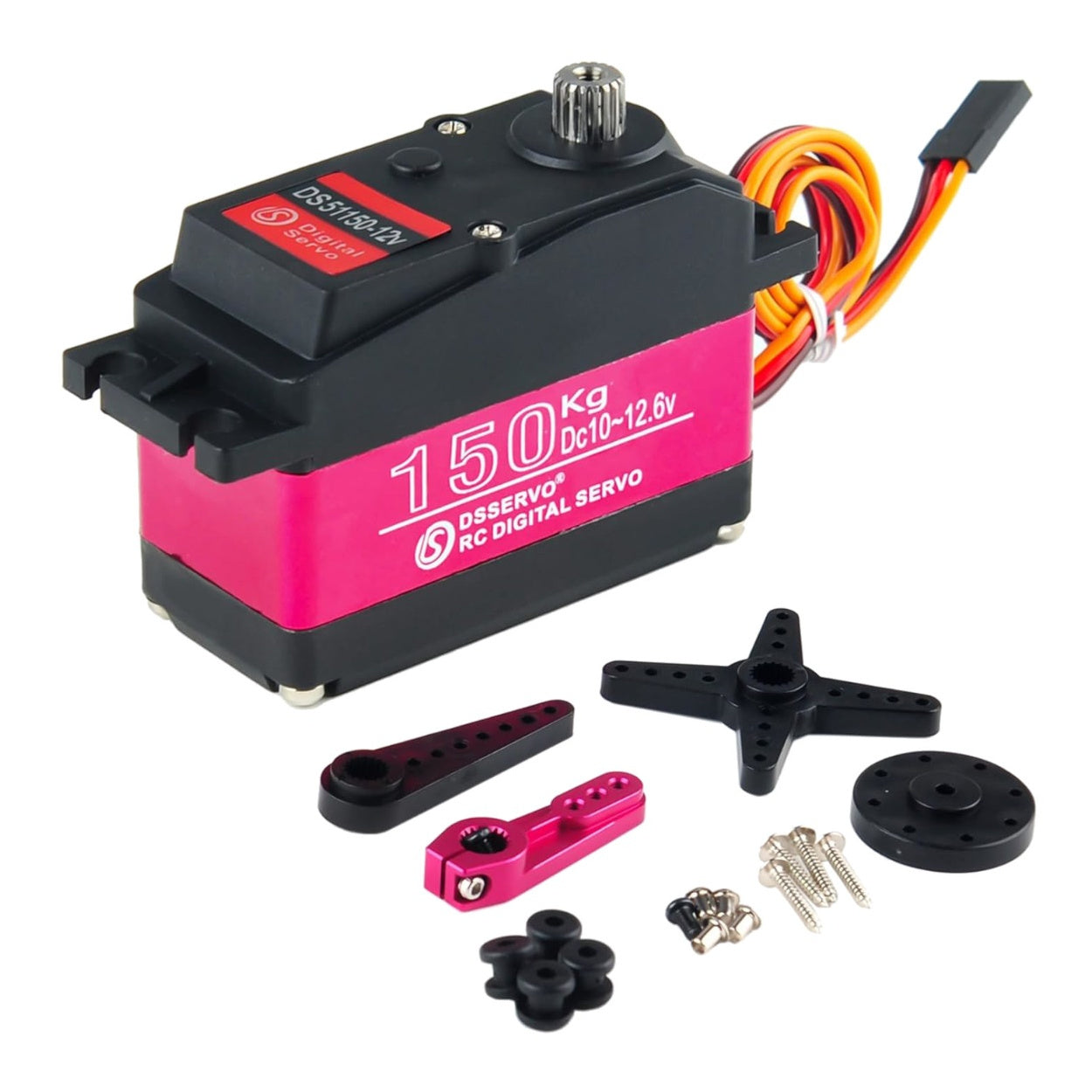

DS51150 High Torque Digital Servo 150KG 180 Degree IP65 Waterproof

DS51150 – 150KG High Torque Digital Servo | 180° | IP65 Waterproof

When your build demands raw power and all-weather reliability, the DS51150 delivers. With a massive 150kg/cm torque output, 180° rotation, and an IP65 waterproof rating, this industrial-grade digital servo is built for large-scale RC aircraft, heavy-lift drones, robotics, and outdoor automation systems where lesser servos simply won't cut it. Mount it, command it, and trust it – rain or shine.

Key Specifications

• Model: DS51150
• Type: Digital Servo
• Torque: 150 kg/cm
• Rotation Angle: 180°
• Waterproof Rating: IP65 (dust-tight, water jet resistant)
• Gear Material: Full metal gears
• Control Signal: PWM / digital signal
• Connector: Standard JR/Futaba compatible

Key Features

• Exceptional 150kg/cm torque for large-scale and heavy-duty applications
• IP65 rated – protected against dust ingress and low-pressure water jets
• Full metal gear train for maximum durability under extreme loads
• Digital control for fast response, precise positioning, and strong holding torque
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Large-scale RC aircraft (main control surfaces, retract systems)
• Heavy-lift drones and UAV platforms
• Industrial robotics and automation
• Outdoor RC vehicles and boats
• Pan-tilt systems and camera gimbals
• Model: DS51150 Digital Standard Servo
• Operating Voltage: 10V - 12.6V DC (High Voltage)
• Torque: 150 kg-cm
• Rotation Angle: 180°
• Gear Material: Metal
• Bearing Type: Dual Ball Bearings
• Enclosure: CNC Aluminum Middle Shell
• Water & Dust Resistance: IP65 Rated
• Idle Current: 4mA - 6mA (at stopped)
• Operating Temperature Range: -10℃ to 50℃
• Connector Wire Length: 300mm ±5mm
• Weight: 158g
