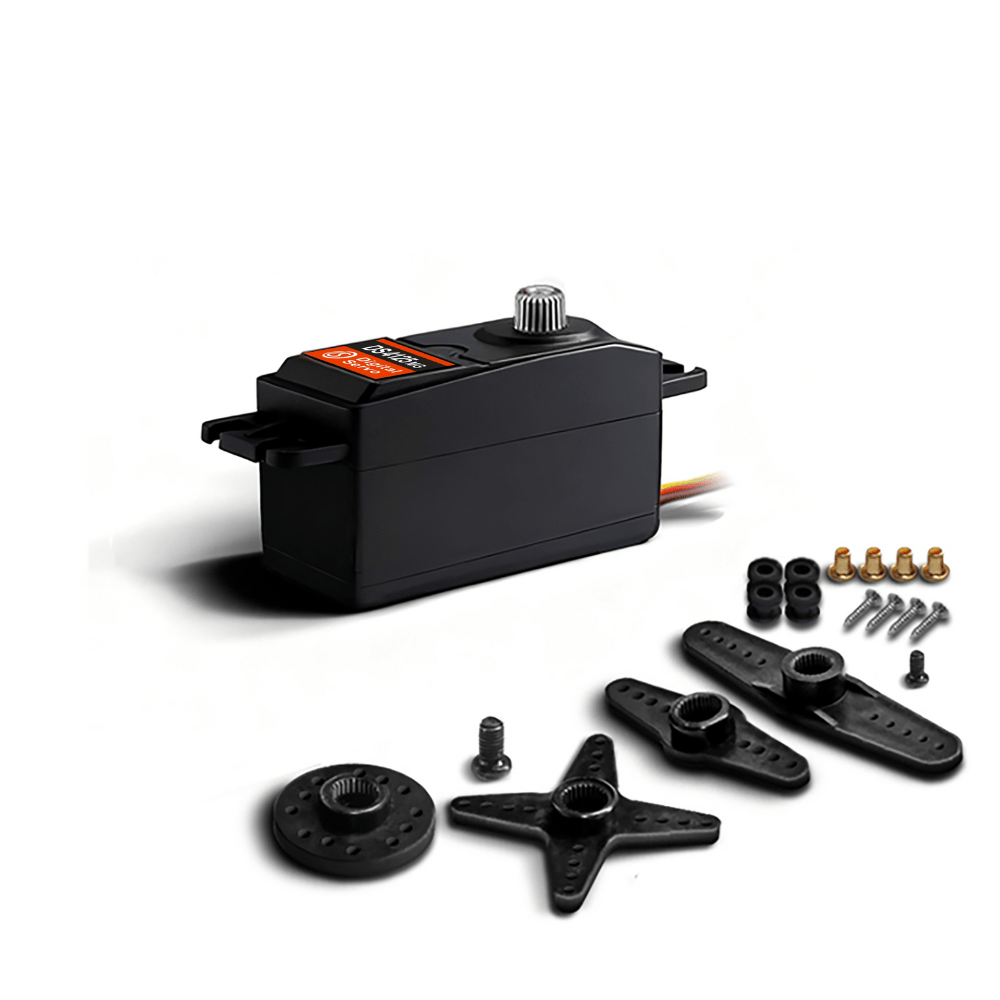

DS4125 Digital Servo Motor 25KG 270 Degree Full Metal Gear HV

DS4125 Digital Servo Motor – 25KG | 270° | Full Metal Gear | HV

The DS4125 270° is a high-voltage digital servo delivering a reliable 25kg/cm torque output with an extended 270° rotation range. Built with a full metal gear train and high-voltage compatibility, it offers a solid balance of power, precision, and wider travel for large-scale RC aircraft, robotic systems, and automation platforms where greater control surface deflection or extended joint movement is required. The extra 90° of travel over the standard 180° variant gives your build more authority and flexibility in demanding linkage setups.

Key Specifications

• Model: DS4125
• Type: Digital Servo (High Voltage)
• Torque: 25 kg/cm (at 8.4V)
• Rotation Angle: 270°
• Gear Material: Full metal gears
• Control Signal: PWM digital signal
• Operating Voltage: 5V – 8.4V (HV compatible)
• Connector: Standard JR/Futaba compatible

Key Features

• 25kg/cm torque at 8.4V – reliable power for large-scale RC aircraft and robotic applications
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• High-voltage (HV) compatible – connect directly to 2S LiPo without voltage regulation loss
• Full metal gear train for long-lasting durability under high load cycles
• Digital control for fast response, precise positioning, and strong holding torque

Applications

• Large-scale RC aircraft (ailerons, elevator, rudder, flaps)
• RC cars, trucks, and heavy crawlers
• Robotic arms and joints
• Industrial automation and motion control
• Pan-tilt systems and camera gimbals
