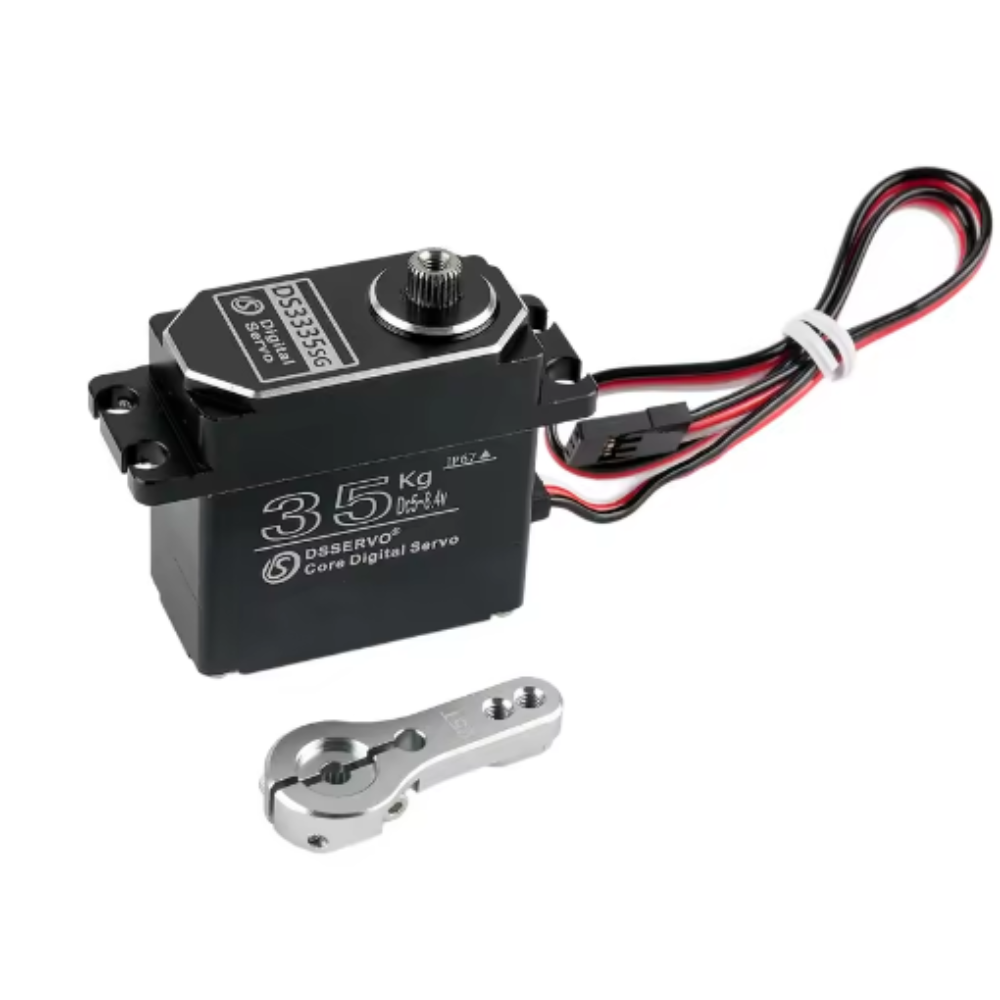

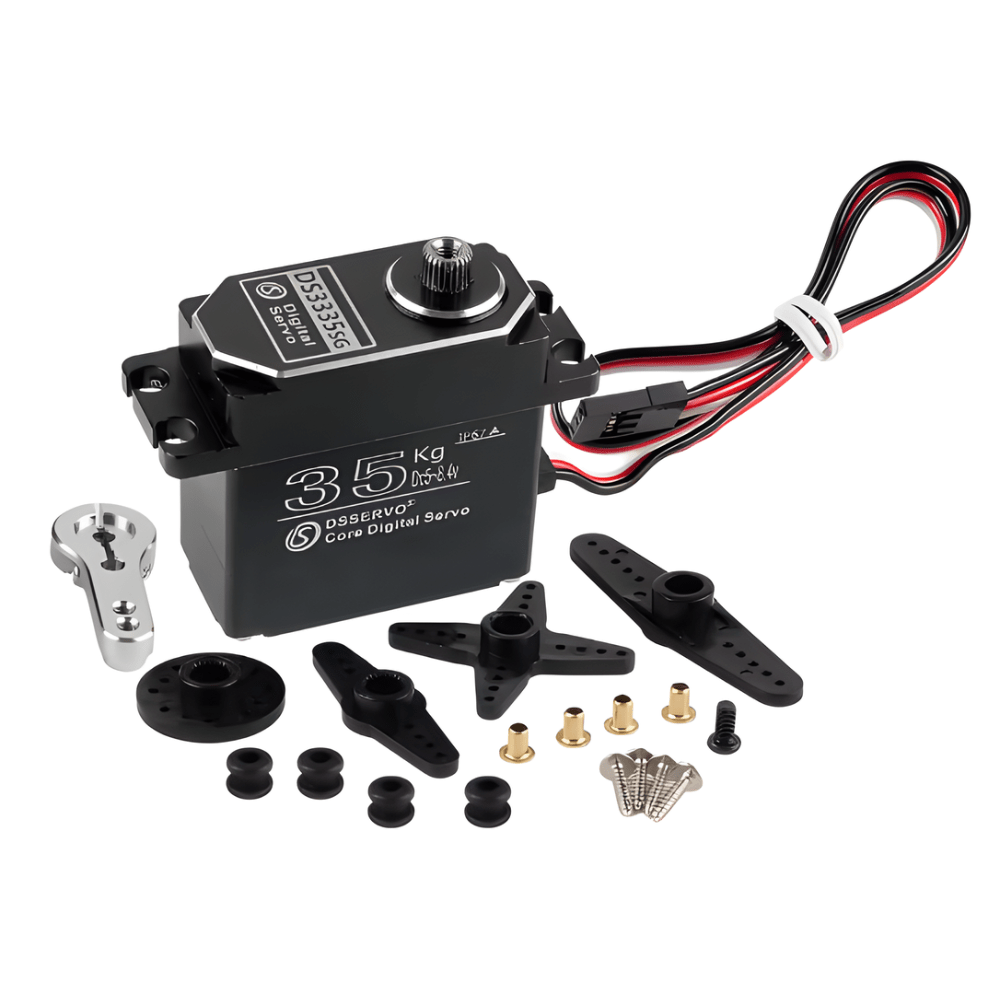

DS3335 Digital Servo Motor 35KG 270 Degree Full Metal Gear 5~8.4V

DS3335 Digital Servo Motor – 35KG | 270° | Full Metal Gear | 5–8.4V

The DS3335 is a premium high-voltage digital servo that combines serious torque with an extended rotation range – making it one of the most capable servos in its class. With a commanding 35kg/cm torque output, a wide 270° rotation range, a full metal gear train, and support for high-voltage operation up to 8.4V, it’s engineered for large-scale RC aircraft, heavy robotic systems, and demanding automation platforms where both power and precision are non-negotiable.

Key Specifications

• Model: DS3335
• Type: Digital Servo (High Voltage)
• Torque: 35 kg/cm (at 8.4V)
• Rotation Angle: 270°
• Gear Material: Full metal gears
• Control Signal: PWM digital signal
• Operating Voltage: 5V – 8.4V (HV compatible)
• Connector: Standard JR/Futaba compatible

Key Features

• 35kg/cm torque at 8.4V – exceptional power for large-scale RC and robotics
• 270° rotation range for wider control surface deflection and extended robotic joint movement
• High-voltage (HV) compatible – connect directly to 2S LiPo without a BEC voltage drop
• Full metal gear train for maximum durability under extreme and sustained loads
• Digital control for fast response, precise positioning, and strong holding torque
• Robust aluminium case for heat dissipation and structural rigidity

Applications

• Large-scale RC aircraft (main control surfaces, retract systems)
• Heavy-lift drones and UAV platforms
• Robotic arms and heavy-duty joints
• Industrial automation and motion control
• Pan-tilt systems and heavy camera gimbals
