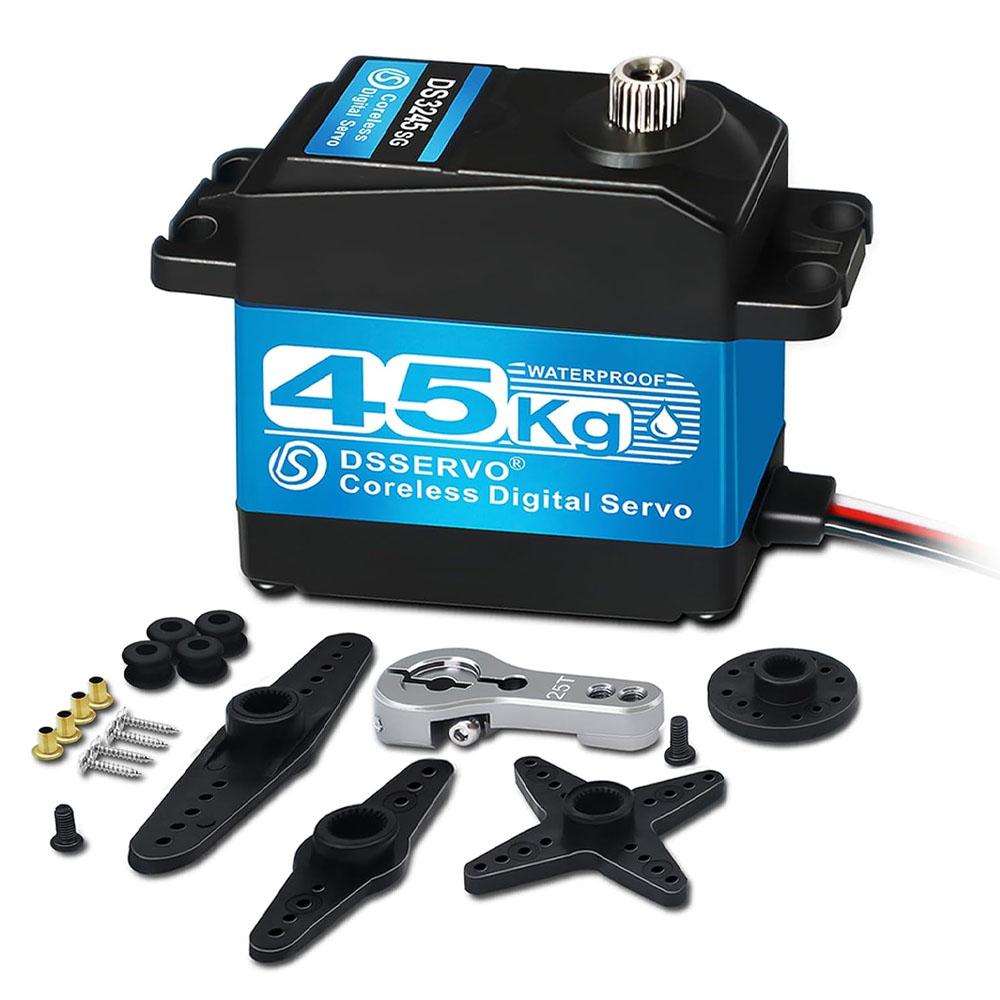

DS3245SG 45KG Metal Gear Coreless Digital Servo Motor 270°

High-Torque Coreless Digital Servo with Wide 270° Range

The DS3245SG combines a high-efficiency coreless motor with a full metal gear train to deliver 45Kg.cm of torque across a wide 270-degree operating range. Coreless motors spin up faster, run cooler, and respond more precisely to control inputs than conventional brushed servo motors — making the DS3245SG an excellent choice for applications demanding both high torque and sharp, dynamic response.

Whether you're steering a large-scale RC crawler, driving a robotic joint, or actuating a heavy pan-tilt rig, the DS3245SG delivers the force and precision to get it done reliably.

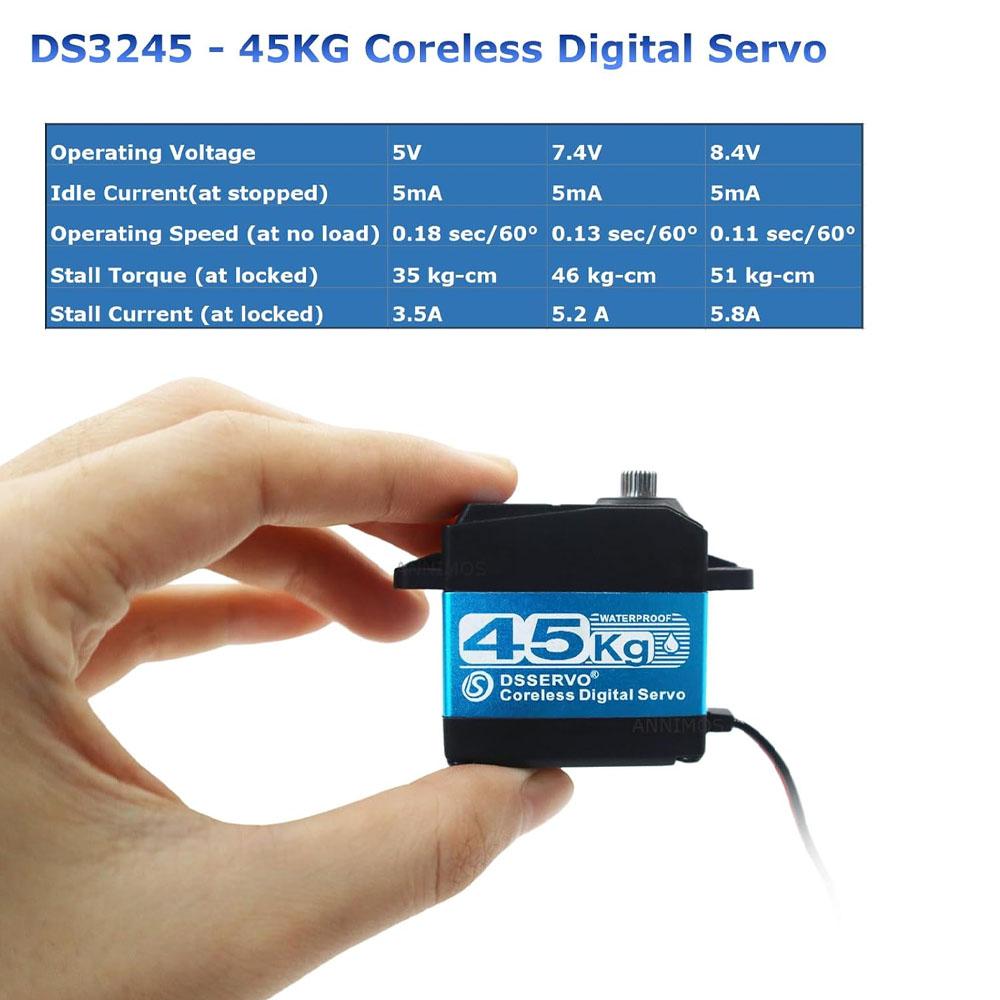

• Model: DS3245SG
• Torque: 45 Kg.cm
• Operating Angle: 270°
• Gear Type: Full Metal Gear
• Motor Type: Coreless
• Control Type: Digital
• Fast response and precise control from coreless motor design
• Wide 270° range for maximum positional flexibility
• Runs cooler and more efficiently than conventional brushed servos
• Low deadband for accurate, responsive actuation
• Compatible with standard RC receivers and servo controllers
• Suitable for large RC crawlers, robotic arms, heavy pan-tilt rigs, and automation systems
